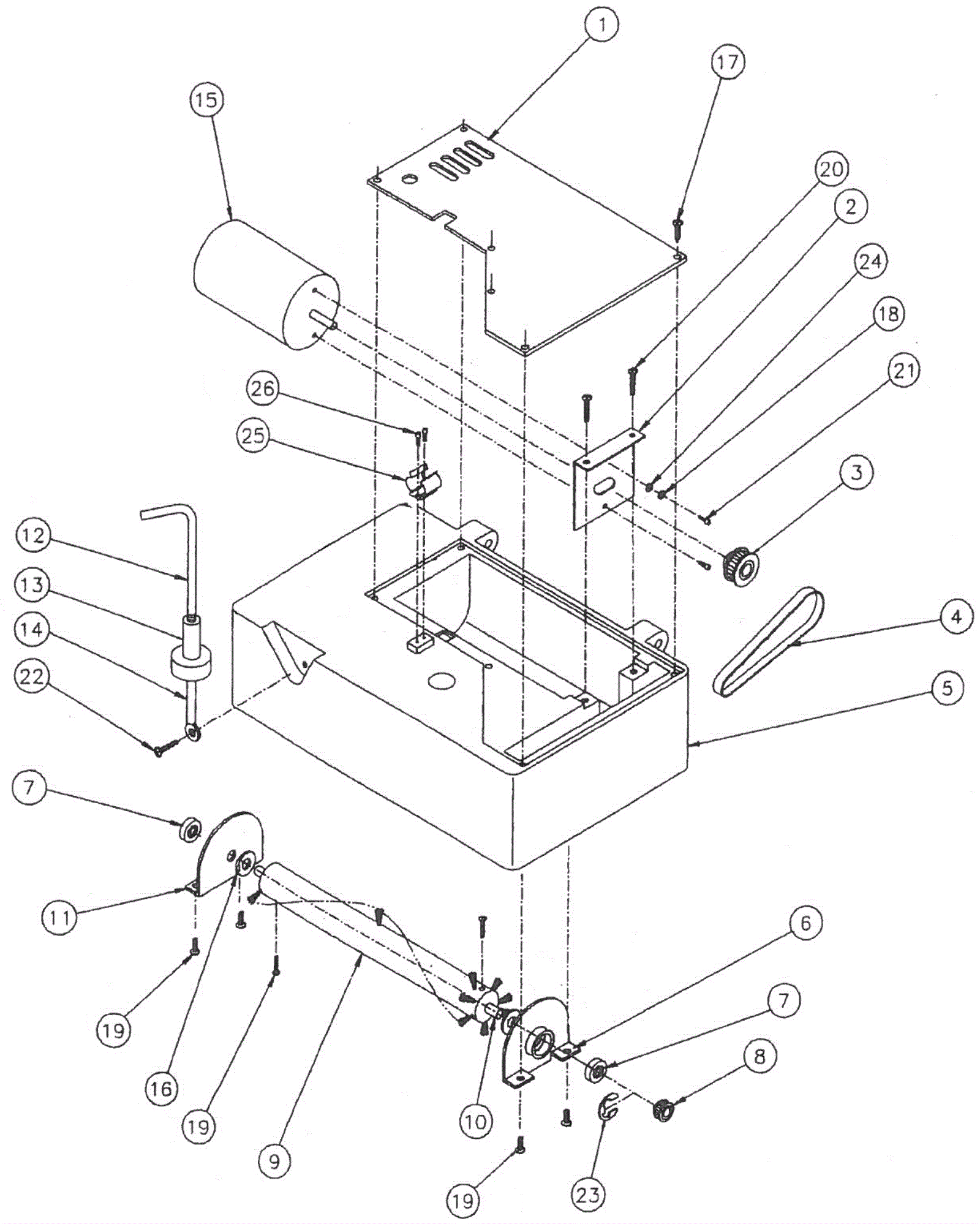

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
N/A
|
Not available |
1 |
(Agitator cover) |
usually ships 3-26 days |
2 |
N/A
|
Not available |
1 |
(Bracket) |
usually ships 3-26 days |
3 |
N/A
|
Not available |
1 |
(Pulley) |
usually ships 3-26 days |
4 |
216-0042
|
Belt |
1 |
|
usually ships 1-5 days |
5 |
N/A
|
Not available |
1 |
(Agitator housing) |
usually ships 3-26 days |
6 |
N/A
|
Not available |
1 |
(Bearing bracket) |
usually ships 3-26 days |
7 |
216-0220
|
Brush bearing |
1 |
|
usually ships 1-5 days |
8 |
216-0221
|
Brush pulley |
1 |
|
usually ships 1-5 days |
9 |
216-0043
|
Brush (OBSOLETE) |
1 |
|
usually ships 12-14 days |
10 |
N/A
|
Not available |
1 |
(Agitator brush shaft) |
usually ships 3-26 days |
11 |
N/A
|
Not available |
1 |
(Bearing bracket) |
usually ships 3-26 days |
12 |
N/A
|
Not available |
1 |
(Agitator hook) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
1 |
(Knob) |
usually ships 3-26 days |
14 |
N/A
|
Not available |
1 |
(Agitator lowering lift) |
usually ships 3-26 days |
15 |
N/A
|
Not available |
1 |
(Motor) |
usually ships 3-26 days |
16 |
N/A
|
Not available |
2 |
(Washer) |
usually ships 3-26 days |
17 |
216-0088
|
Screw #6 x 3/4mm pan head stainless steel |
2 |
|
usually ships 1-5 days |
18 |
N/A
|
Not available |
1 |
(Washer) |
usually ships 3-26 days |
19 |
N/A
|
Not available |
2 |
(Scrwe) |
usually ships 3-26 days |
20 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
usually ships 11-14 days |
21 |
N/A
|
Not available |
2 |
(Screw) |
usually ships 3-26 days |
22 |
N/A
|
Not available |
1 |
(screw) |
usually ships 3-26 days |
23 |
N/A
|
Not available |
1 |
(E-clip) |
usually ships 3-26 days |
24 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
usually ships 11-14 days |
25 |
N/A
|
Not available |
1 |
(Spring clip) |
usually ships 3-26 days |
26 |
216-0331
|
Screw |
2 |
|
usually ships 12-14 days |
