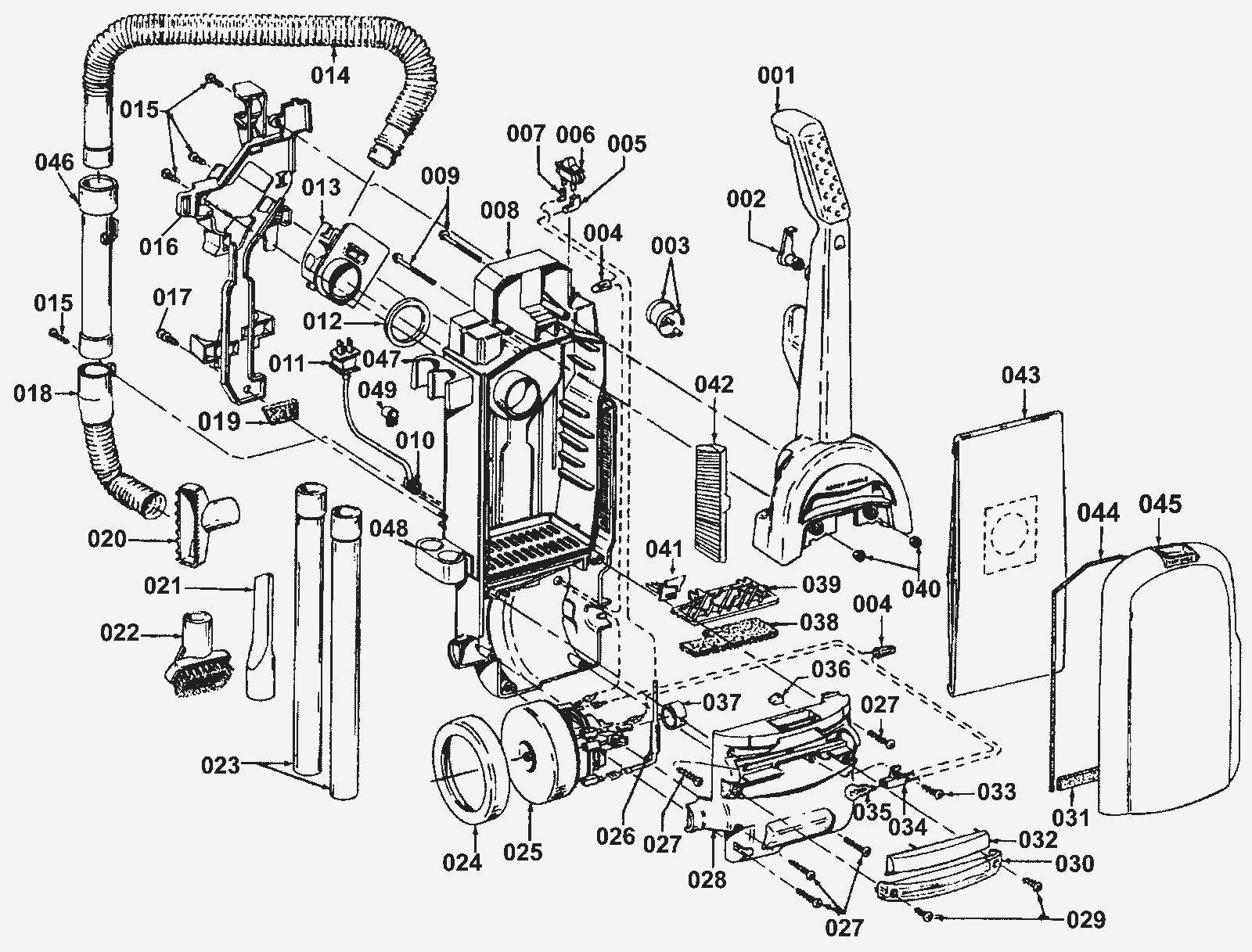

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
215-0338
|
Upper handle assembly (OBSOLETE) |
|
|
|
001b |
215-0339
|
Handle cap, standard |
|
|
|
002 |
215-0340
|
Cord wrap |
|
|
|
003 |
215-0138
|
Wire tie |
|
|
|
004 |
215-0139
|
Wire connector |
|
|
|
005 |
N/A
|
Not available |
|
Not available(terminal) |
|
006a |
215-0341
|
Swtich, 3/16 inch terminals |
|
|
|
006b |
215-0140
|
Switch (on/off) |
|
|
|
007 |
N/A
|
Not available |
|
Not available(terminal) |
|
008 |
215-0342
|
Bag housing |
|
|
|
009 |
215-0142
|
Handle hardware |
|
|
|
010 |
215-0143
|
Strain relief (OBSOLETE) |
|
|
|
011a |
215-0343
|
35' cord |
|
|
|
011b |
215-0344
|
50' cord |
|
|
|
011c |
215-0345
|
35' cord, 1/4 inch terminals (OBSOLETE) |
|
|
|
011d |
215-0346
|
50' cord, 1/4 inch terminals |
|
|
|
012 |
215-0145
|
Hose connector gasket |
|
|
|
013 |
215-0146
|
Hose connector |
|
|
|
014 |
215-0147
|
Hose assembly (OBSOLETE) |
|
|
|
015 |
215-0148
|
Screw |
|
|
|
017 |
215-0150
|
Screw |
|
|
|
018 |
215-0112
|
Angled hose connector assembly (OBSOLETE) |
|
|
|
019 |
215-0151
|
Wire opening seal |
|
|
|
020 |
215-0152
|
Furniture nozzle (OBSOLETE) |
|
|
|
021 |
215-0153
|
Crevice tool (OBSOLETE) |
|
|
|
022 |
215-0154
|
Dusting brush assembly |
|
|
|
023 |
215-0155
|
Extension tube (OBSOLETE) |
|
|
|
024 |
215-0156
|
Large motor mount |
|
|
|
025a |
215-0157
|
Motor assembly (OBSOLETE) |
|
|
|
025b |
215-0158
|
Motor brushes (2) (OBSOLETE) |
|
|
|
025c |
215-0159
|
Motor fan assembly (OBSOLETE) |
|
|
|
026a |
215-0347
|
Thermal protector, 3/16 inch terminal |
|
|
|
026b |
215-0348
|
Thermal protector, 1/4 inch terminal |
|
|
|
027 |
215-0162
|
Screw |
|
|
|
028 |
215-0349
|
Motor cover |
|
|
|
029 |
215-0121
|
Self tapping screw |
|
|
|
030 |
215-0164
|
Lens |
|
|
|
031 |
215-0350
|
Bag door gasket, bottom |
|
|
|
032 |
215-0166
|
Cover |
|
|
|
033 |
215-0052
|
Screw, self tapping (OBSOLETE) |
|
|
|
034a |
215-0351
|
Wiring harness, 3/16 inch terminal |
|
|
|
034b |
215-0167
|
Wiring harness |
|
|
|
036 |
215-0169
|
Wire opening plug |
|
|
|
037 |
215-2054
|
Motor mount |
|
|
|
038 |
215-0171
|
Secondary filter (OBSOLETE) |
|
|
|
039 |
215-0352
|
Secondary filter retainer |
|
|
|
040 |
215-0173
|
Hex nut |
|
|
|
041 |
215-0353
|
Filter holder |
|
|
|
042 |
215-0354
|
Cartridge filter |
|
|
|
043a |
215-0268
|
Paper bags Type Y (3 pack) |
|
|
|
043b |
N/A
|
Not available |
|
(Cloth vag) |
|
044 |
215-0356
|
Bag door gasket (OBSOLETE) |
|
|
|
045 |
215-0357
|
Bag housing door (OBSOLETE) |
|
|
|
046 |
215-0191
|
Hose door assembly |
|
|
|
047 |
215-0181
|
Upper wand holder |
|
|
|
048 |
215-0180
|
Lower wand holder (OBSOLETE) |
|
|
|
049 |
215-0194
|
Attachment cord clamp |
|
|
|
N/S |
215-0361
|
Screw |
|
|
|
N/S |
215-0197
|
Cord clip |
|
|
|
N/S |
215-0195
|
Lead wire- red |
|
|
|
N/S |
215-0360
|
Cord protector |
|
|
|
