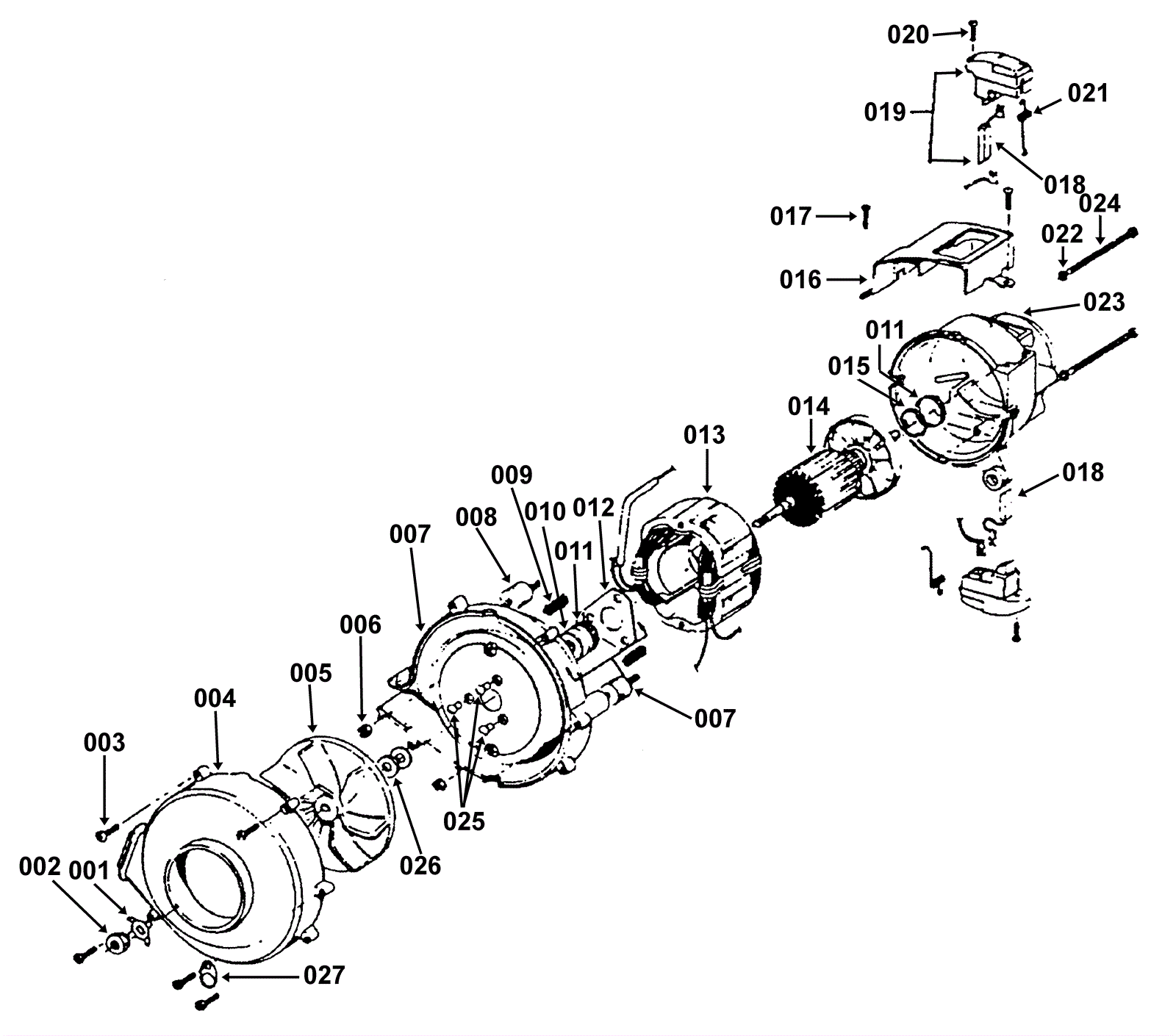

Motor Assembly

#PartDescription ReqNotesAvailability
001 215-0610 Washer lock
002 215-0611 Nut
003 215-0052 Screw, self tapping (OBSOLETE)
004 215-0613 Fan chamber cover
005 215-0614 Fan
006 215-0615 Nut
007 215-0616 Fan chamber
008 215-0617 Sandwich mount
009 215-0618 Spring
010 215-0001 Brush bearings
011 215-0620 Star ring
012 215-0621 Retainer
013a 215-0622 Field coil 5.2 amp
013b 215-0623 Field coil 6.0 and 7.0 amp
014a 215-0624 Armature 5.2 amp
014b 215-0625 Armature 6.0 and 7.0 amp
015 215-0626 Washer
016 215-0607 Intake duct
017 215-0189 Screw
018 215-0627 Carbon brush (OBSOLETE)
019 215-0628 Brush carrier assembly (OBSOLETE)
020 215-0629 Screw
021 215-0630 Spring
022 215-0631 Washer lock
023 215-0632 Motor housing
024 215-0428 Screw
025 215-0429 Rivet
026 215-0305 Washer
027 215-0633 Lead wire holder
