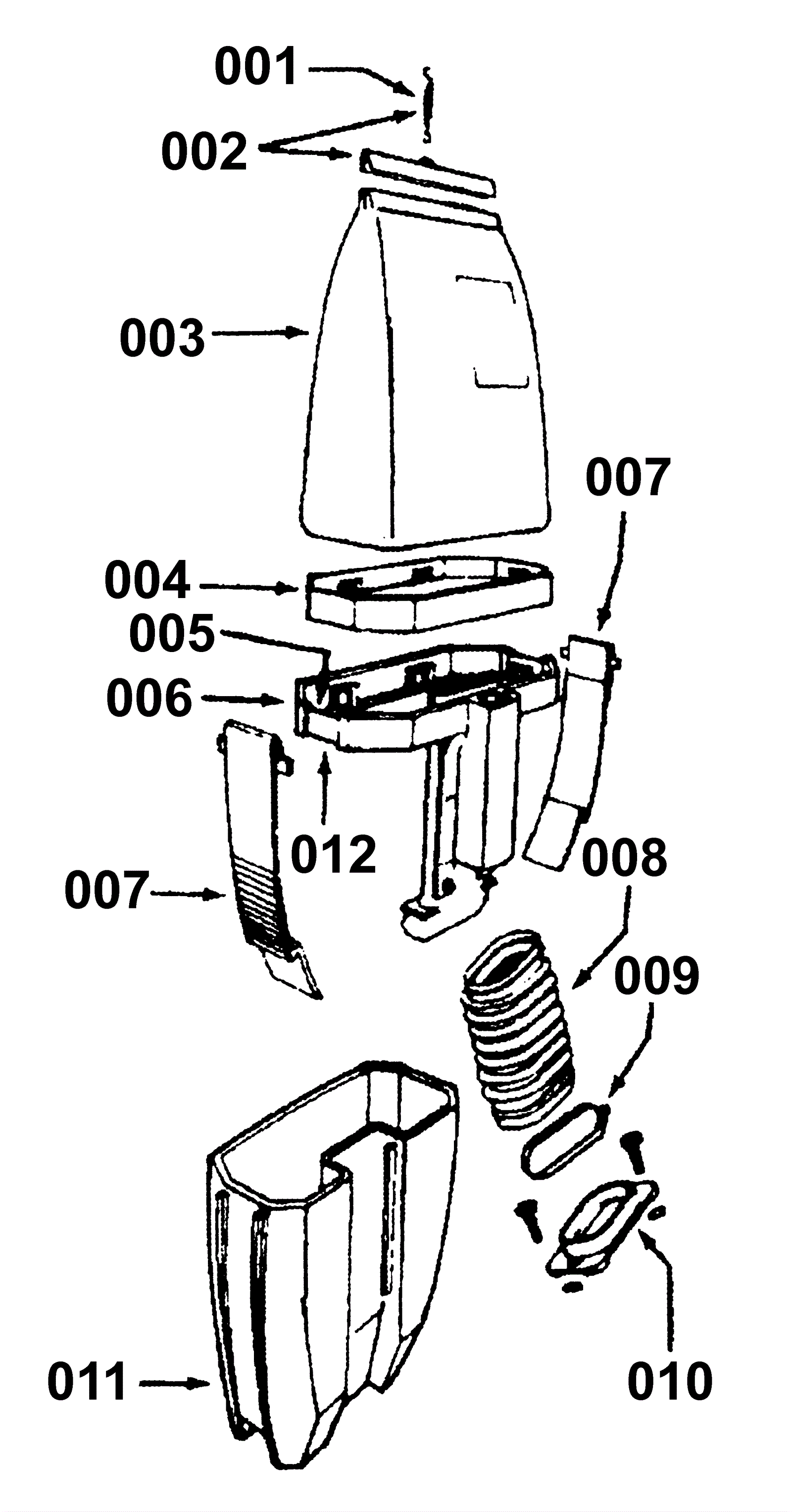

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
215-0504
|
Spring |
|
|
|
002 |
215-0505
|
Bag spring/clip assembly |
|
|
|
003a |
215-0520
|
Cloth bag |
|
Orange |
|
003b |
215-0222
|
Cloth bag |
|
Black |
|
004 |
215-0223
|
Bag expander |
|
|
|
005 |
215-0224
|
Seal |
|
|
|
006 |
215-0521
|
Cup support and bellows (OBSOLETE) |
|
|
|
007 |
215-0007
|
Latch (OBSOLETE) |
|
|
|
008 |
215-0005
|
Bellows |
|
|
|
009a |
215-0009
|
Clamp band |
|
|
|
009b |
215-0226
|
Screw (OBSOLETE) |
|
|
|
009c |
215-0227
|
Nut (OBSOLETE) |
|
|
|
010 |
215-0522
|
Bag flange |
|
|
|
011 |
215-0006
|
Dirt cup (OBSOLETE) |
|
|
|
012 |
215-0008
|
Seal |
|
|
|
N/S |
215-0792
|
Dirt cup accessory kit for Conquest vacuum (OBSOLETE) |
|
|
|
