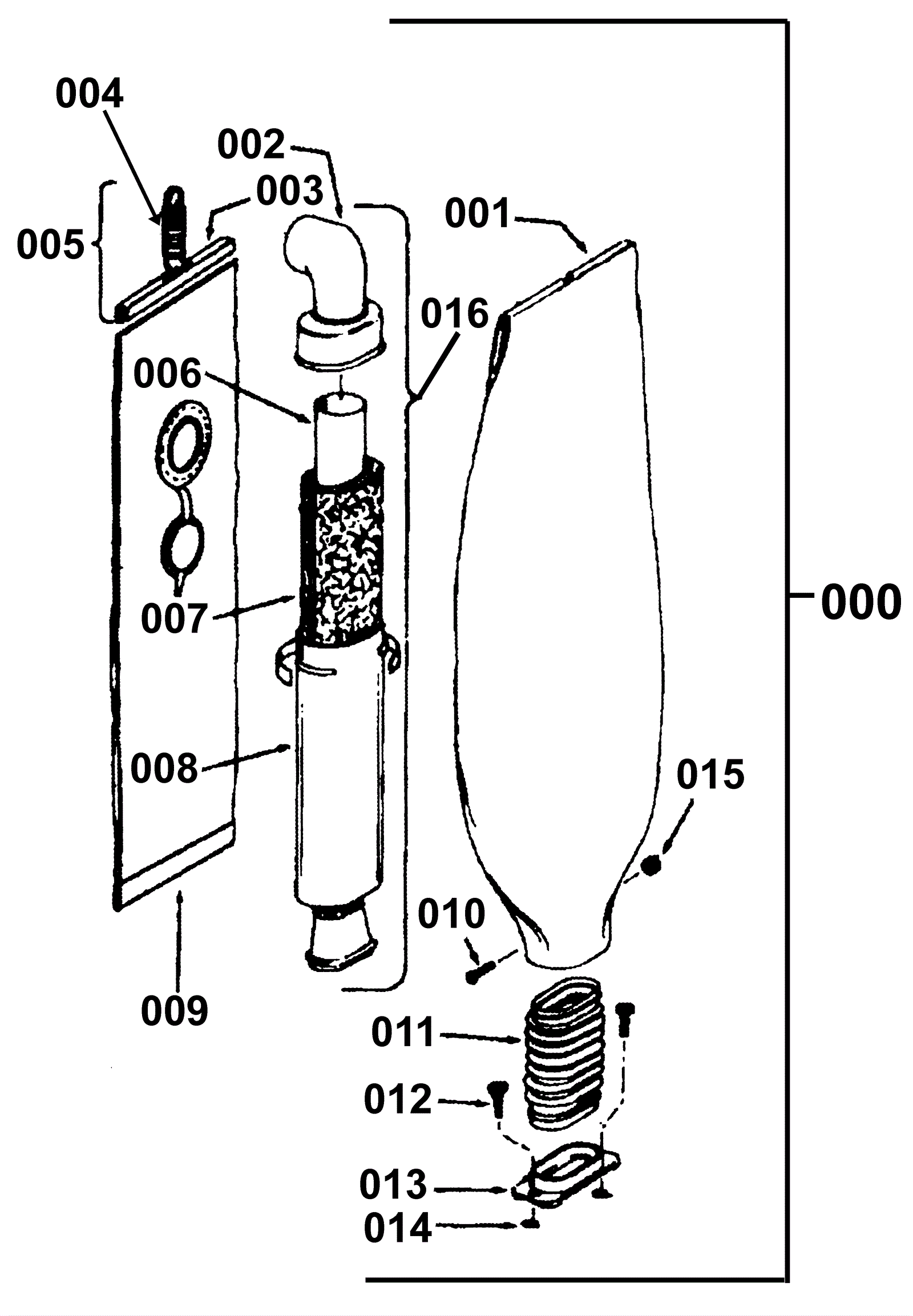

Bag Assembly

#PartDescription ReqNotesAvailability
000 215-0500 Cloth bag assembly Inc. items 001-016
001 215-0501 Outer cloth bag (OBSOLETE)
002 215-0502 Top fill tube
003 215-0503 Bag closure clip
004 215-0504 Spring
005 215-0505 Bag spring/clip assembly
006 215-0506 Liner
007 215-0507 Foam muffler
008 215-0508 Housing
009a 215-0509 Early style-inner cloth bag
009b 215-0510 Late style-inner cloth bag (OBSOLETE)
010 215-0226 Screw (OBSOLETE)
011 215-0512 Bellows
012 215-0513 Screw
013 215-0514 Bag flange (OBSOLETE)
014 215-0515 Lock ring
015 215-0227 Nut (OBSOLETE)
016 215-0516 Muffler assembly (OBSOLETE)
N/S 215-0021 Paper bags 3pack
N/S 215-0517 Type A bag (3 pack)
