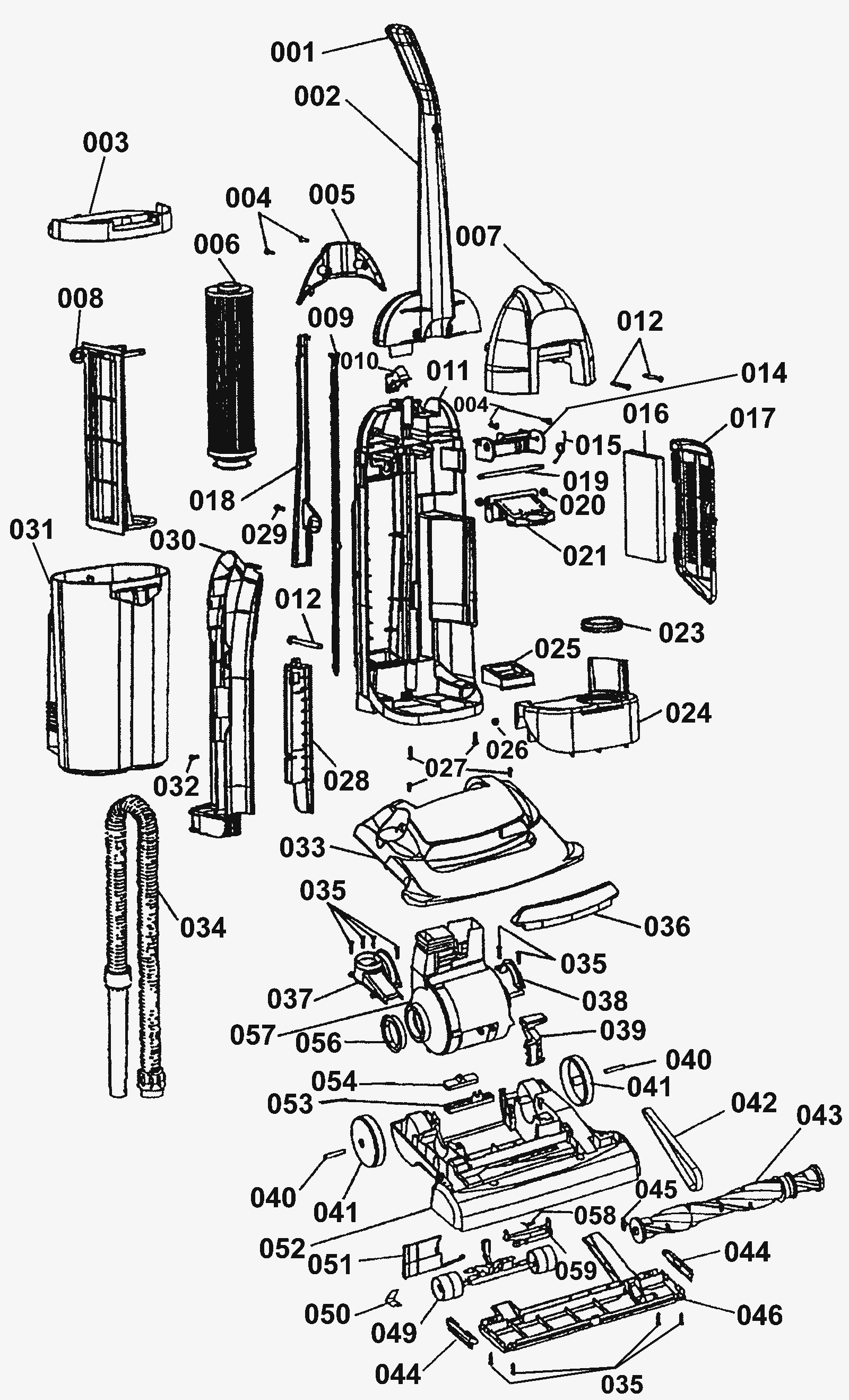

Entire Assembly

#PartDescription ReqNotesAvailability
001 215-0677 Handle cap
002 215-0678 Upper handle
003 215-0679 Dirt cup lid (OBSOLETE)
004 215-0052 Screw, self tapping (OBSOLETE)
005 215-0680 Rear handle cover
006 215-0681 Filter (HEPA)
007 215-0682 Front handle cover
008 215-0683 Pre-filter (OBSOLETE)
009 215-0684 Switch rod
010 215-0685 Rocker switch
011 215-0686 Dirt cup housing
012 215-0687 Handle hardware assembly
014 215-0688 Latch support
015 215-0689 Cam actuator spring
016 215-0176 Final filter pack (2 pack) (OBSOLETE)
017 215-0690 Filter grill
018 215-0691 Rear cover
019 215-0692 Latch shaft
020 215-0128 Wheel retainer
021 215-0693 Latch dirt cup
023 215-0694 Exhaust seal
024 215-0695 Front cover
025 215-0696 Intake seal
026 215-0615 Nut
027 215-0697 Screw, self-tapping
028 215-0698 Tool rack guide
029 215-0148 Screw
030 215-0699 Tool rack
031 215-0700 Dirt cup
032 215-0687 Handle hardware assembly
033 215-0382 Hood assembly
034 215-0702 Hose assembly (OBSOLETE)
035 215-0048 Screw self tapping
036 215-0703 Panel
037 215-0704 Duct cover
038 215-0768 Left motor retainer cap (OBSOLETE)
039 215-0705 Handle release
040 215-0762 Wheel shaft
041 N/A Not available Rear wheel
042 215-0022 Drive belt
043 215-0706 Agitator assembly
044 215-0134 Litter picker (OBSOLETE)
045 215-0136 Rug nozzle rib shoe
046 215-0708 Bottom plate
049 215-0709 Front wheel assembly
050 215-0388 Cam actuator spring
051 215-0710 Valve gate
052 215-0711 Main body
053 215-0712 Cam Actuator
054 215-0713 Indicator knob (OBSOLETE)
056 215-0772 Seal
057 215-0779 Motor assembly (OBSOLETE)
058 215-0714 Spring
059 215-0715 Nozzle height adjustment cam
N/S 215-0197 Cord clip
N/S 215-0152 Furniture nozzle (OBSOLETE)
N/S 215-0718 Extension tube
N/S 215-0717 Crevice tool (OBSOLETE)
N/S 215-0719 Dusting brush
N/S 215-0716 Attachment cord, 50'
