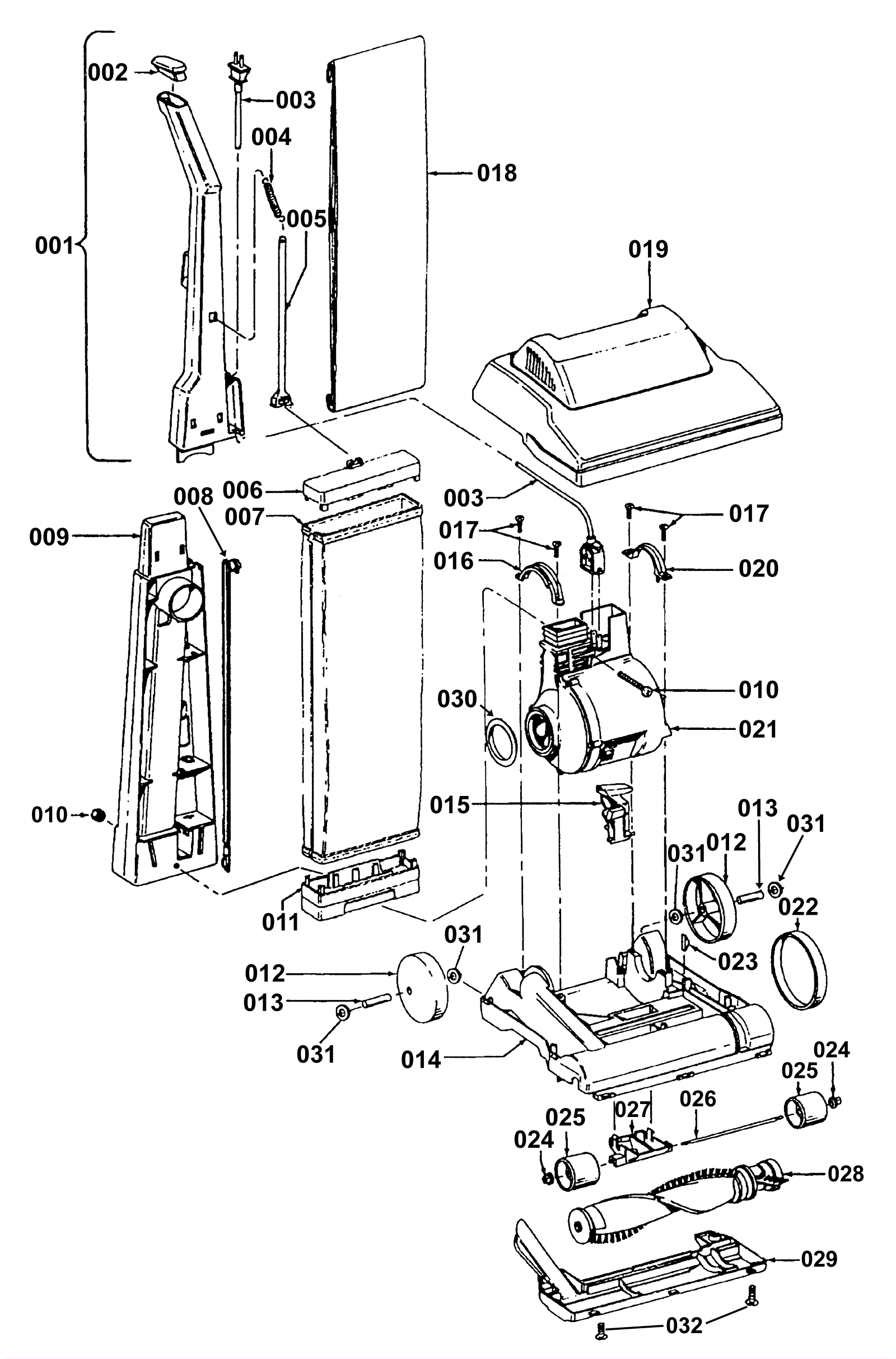

C1404 Entire assembly

#PartDescriptionPriceReqNotesAvailability
001 215-0750 Upper handle assembly (OBSOLETE) $15.32 usually ships 6-16 days
002 215-0751 Handle cap $0.99 usually ships 1-5 days
003 215-0752 Attach. cord (OBSOLETE) $46.46 usually ships 6-16 days
004 215-0753 Bag strap spring $0.99 usually ships 1-5 days
005 215-0754 Bag strap $0.99 usually ships 1-5 days
006 215-0755 Upper jacket support $3.75 usually ships 1-5 days
007 215-0756 Outer jacket assembly $47.44 Includes items 006 and 011 usually ships 6-16 days
008 215-0757 Switch control rod $3.43 usually ships 1-5 days
009 215-0758 Lower handle $14.26 usually ships 1-5 days
010 215-0759 Nut and bolt assembly (OBSOLETE) $0.99 usually ships 6-16 days
011 215-0760 Lower jacket support $6.66 usually ships 1-5 days
012 N/A Not available Call for price 2 Rear wheel usually ships 3-26 days
013 215-0762 Wheel shaft $1.93 2 usually ships 1-5 days
014 N/A Not available Call for price Main body assembly (Includes items 012, 013, 015, 023, and 031) usually ships 3-26 days
015 215-0764 Handle release lever $2.33 usually ships 1-5 days
016 215-0765 Right motor retainer cap $0.99 usually ships 1-5 days
017 215-0048 Screw self tapping $1.32 4 usually ships 1-5 days
018a 215-0517 Type A bag (3 pack) $5.50 usually ships 6-16 days
018b 991-9049 Paper vacuum bags (pkg of 3) $3.00 usually ships 5-12 days
019 215-0767 Hood $10.60 usually ships 1-5 days
020 215-0768 Left motor retainer cap (OBSOLETE) $1.35 usually ships 6-16 days
021 215-0769 Motor assembly (OBSOLETE) $121.36 usually ships 6-16 days
022 215-0022 Drive belt $1.79 usually ships 6-16 days
023 215-0136 Rug nozzle rib shoe $1.58 usually ships 1-5 days
024 215-0128 Wheel retainer $1.58 2 usually ships 1-5 days
025 N/A Not available Call for price Wheel included in 027 usually ships 3-26 days
026 N/A Not available Call for price Wheel shaft included in 027 usually ships 3-26 days
027 215-0770 Front wheel assembly $11.68 Includes items 025 and 026 usually ships 1-5 days
028 215-0017 Agitator assembly (OBSOLETE) $28.33 usually ships 6-16 days
029 215-0771 Bottom plate $11.39 usually ships 1-5 days
030 215-0772 Seal $0.99 usually ships 1-5 days
031 N/A Not available Call for price 4 (Washer) usually ships 3-26 days
032 215-0845 Screw (OBSOLETE) $0.99 2 usually ships 6-16 days
KIT 215-0775 Hardware kit $13.94 Includes items 012-013, 015, and 023 usually ships 1-5 days
N/S 215-0774 Cloth reusable bag inchA inch $39.00 usually ships 1-5 days
