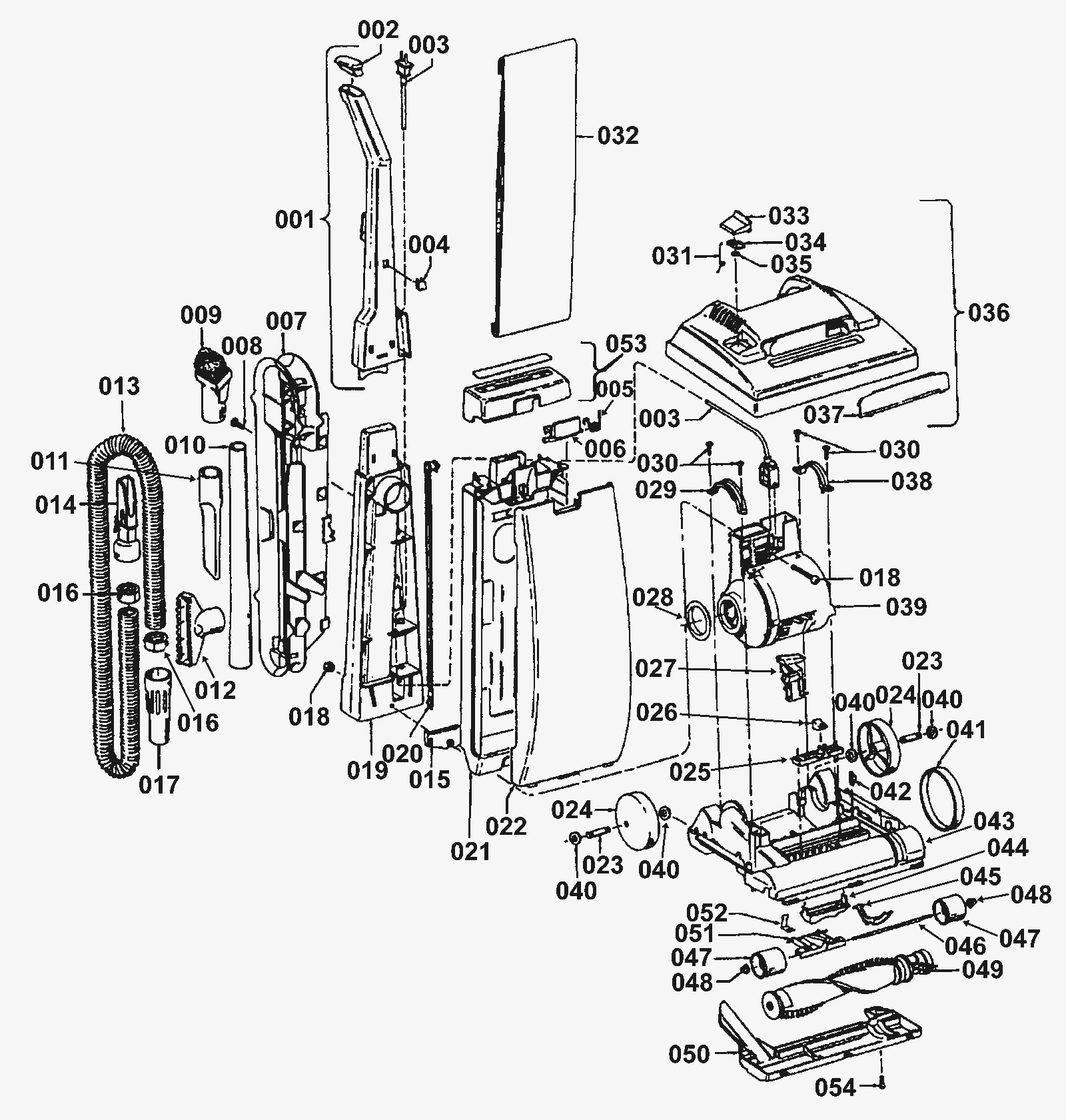

Entire Assembly

#PartDescription ReqNotesAvailability
001 215-0362 Upper handle assembly (OBSOLETE)
002 215-0751 Handle cap
003 215-0363 Attatchment cord (OBSOLETE)
004 215-0364 Plug
005 215-0365 Spring
006 215-0366 Latch
007 215-0367 Tool holder (OBSOLETE)
008 215-0323 Screw
009 215-0368 Dusting brush
010 215-0155 Extension tube (OBSOLETE)
011 215-0369 Crevice tool (OBSOLETE)
012 215-0370 Furniture nozzle
013 215-0371 Hose complete (OBSOLETE)
014 215-0372 Hose connector
015 215-0373 Bag housing bracket
016 215-0374 Hose connector collar
017 215-0375 Hose adapter
018 215-0759 Nut and bolt assembly (OBSOLETE)
019 215-0758 Lower handle
020 215-0757 Switch control rod (OBSOLETE)
021 215-0376 Bag housing
022 215-0377 Bag housing door
023 215-0762 Wheel shaft
024 N/A Not available Rear wheel
025 215-0378 Cam actuator
026 215-0379 Indicator knob
027 215-0764 Handle release lever
028 215-0772 Seal
029 215-0765 Right motor retainer cap
030 215-0048 Screw self tapping
031 215-0380 Spring
032a 215-0517 Type A bag (3 pack)
032b 215-0774 Cloth reusable bag inchA inch
032c 991-9049 Paper vacuum bags (pkg of 3)
033 215-0381 Door
034 N/A Not available (seal)
035 N/A Not available (speed nut)
036 215-0382 Hood assembly Includes items 033 and 037
037 215-0383 Panel
038 215-0768 Left motor retainer cap (OBSOLETE)
039 215-0769 Motor assembly (OBSOLETE)
040 N/A Not available (Washer)
041 215-0022 Drive belt
042 215-0136 Rug nozzle rib shoe
043 215-0384 Main body assembly (OBSOLETE) Includes items 023, 024, 027 and 042
044 215-0385 Nozzle height adjustment cam
045 N/A Not available (lever)
046 N/A Not available (wheel shaft)
047 215-0387 Front wheel assembly
048 215-0128 Wheel retainer
049 215-0386 Agitator (OBSOLETE)
050 215-0771 Bottom plate
051 215-0387 Front wheel assembly Includes items 045-047
052 215-0388 Cam actuator spring
053 215-0389 Bag housing cap assembly
054 215-0845 Screw (OBSOLETE)
KIT 215-0775 Hardware kit Includes items 023, 024, 027, 040 and 042
