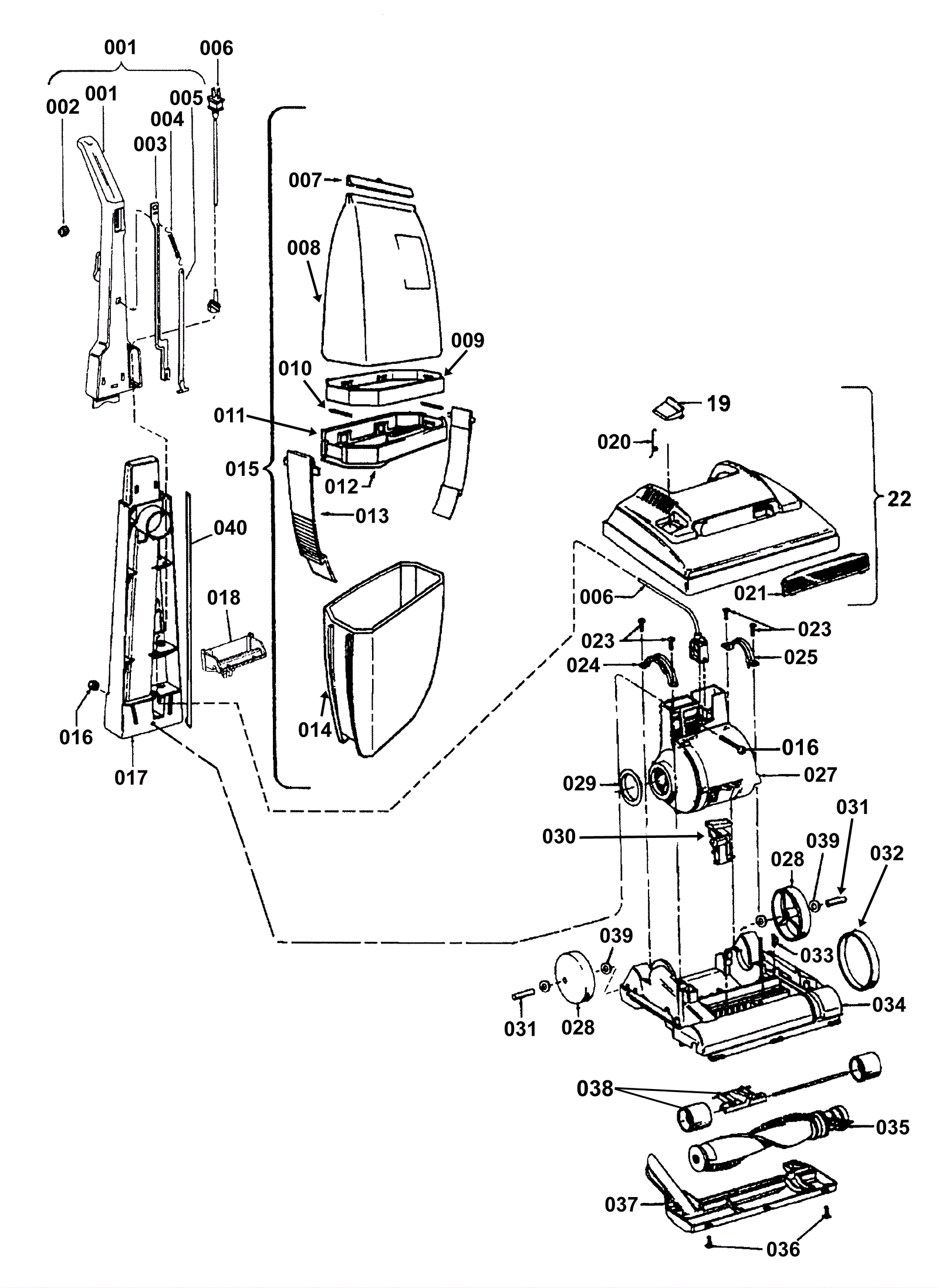

C1415 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 215-0391 Upper handle complete $26.51 usually ships 1-5 days
002 215-0392 Switch button $0.99 usually ships 1-5 days
003 215-0393 Upper switch rod $19.22 usually ships 1-5 days
004 215-0753 Bag strap spring $0.99 usually ships 1-5 days
005 215-0394 Bag strap $0.99 usually ships 1-5 days
006 215-0363 Attatchment cord (OBSOLETE) $28.28 usually ships 1-5 days
007 215-0395 Upper bag support $3.11 usually ships 1-5 days
008 215-0396 Bag assembly complete $59.59 usually ships 1-5 days
009 215-0223 Bag expander $3.97 usually ships 1-5 days
010 215-0229 Lock ring $4.25 usually ships 1-5 days
011 215-0397 Dirt cup support $10.11 usually ships 1-5 days
012 215-0008 Seal $1.94 ships same day
013 215-0007 Latch (OBSOLETE) $3.72 usually ships 12-20 days
014 215-0398 Dirt cup $16.31 usually ships 1-5 days
015 215-0399 Bag assembly complete with dirt cup $137.74 usually ships 1-5 days
016 215-0759 Nut and bolt assembly (OBSOLETE) $0.99 usually ships 12-20 days
017 215-0400 Lower handle $18.22 usually ships 1-5 days
018 215-0401 Lower dirt cup support $2.46 usually ships 1-5 days
019 215-0381 Door $3.10 usually ships 1-5 days
020 215-0380 Spring $0.99 usually ships 1-5 days
021 215-0402 Panel $2.42 usually ships 1-5 days
022 215-0403 Hood assembly $33.78 usually ships 1-5 days
023 215-0048 Screw self tapping $1.32 usually ships 1-5 days
024 215-0765 Right motor retainer cap $0.99 usually ships 1-5 days
025 215-0768 Left motor retainer cap (OBSOLETE) $1.35 usually ships 12-20 days
026 215-0759 Nut and bolt assembly (OBSOLETE) $0.99 usually ships 12-20 days
027 215-0404 Motor assembly Call for price usually ships 1-5 days
028 N/A Not available Call for price Rear wheel usually ships 3-26 days
029 215-0772 Seal $0.99 usually ships 1-5 days
030 215-0764 Handle release lever $2.33 usually ships 1-5 days
031 215-0762 Wheel shaft $1.93 usually ships 1-5 days
032 215-0022 Drive belt $1.79 usually ships 12-20 days
033 215-0136 Rug nozzle rib shoe $1.58 usually ships 1-5 days
034 N/A Not available Call for price Main body assembly usually ships 3-26 days
035 217-0017 Base, poly (OBSOLETE) Call for price usually ships 1-5 days
036 215-0845 Screw (OBSOLETE) $0.99 usually ships 12-20 days
037 215-0771 Bottom plate $11.39 usually ships 1-5 days
038 215-0770 Front wheel assembly $11.68 usually ships 1-5 days
039 N/A Not available Call for price (Washer) usually ships 3-26 days
040 215-0405 Lower switch rod $1.24 usually ships 1-5 days
N/S 215-0052 Screw, self tapping $1.32 usually ships 1-5 days
