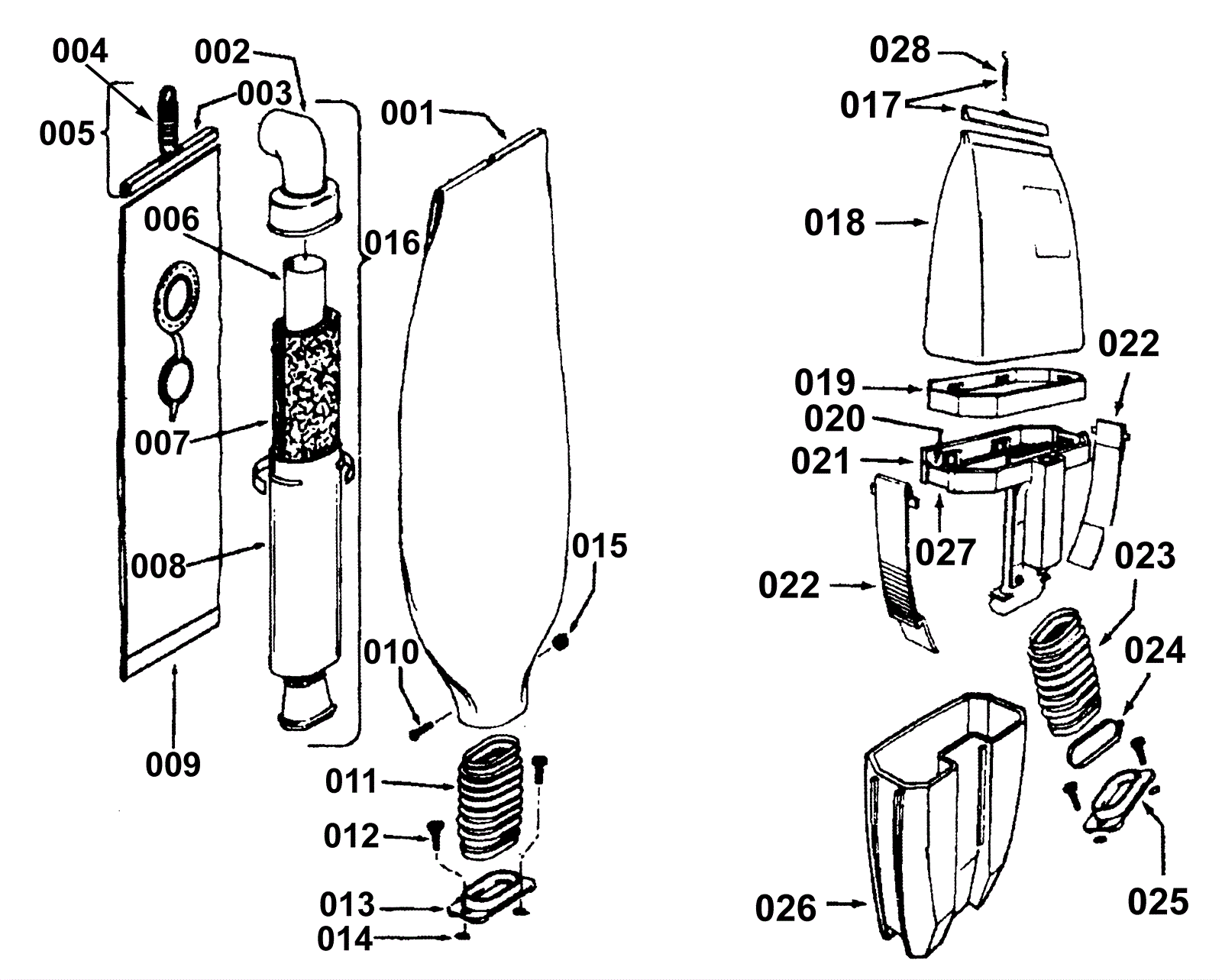

Bag and Dust Cup Assembly

#PartDescription ReqNotesAvailability
000 215-0500 Cloth bag assembly
001 215-0501 Outer cloth bag (OBSOLETE)
002 215-0502 Top fill tube
003 215-0503 Bag closure clip
004 215-0504 Spring
005 215-0505 Bag spring/clip assembly
006 215-0506 Liner
007 215-0507 Foam muffler
008 215-0508 Housing
009a 215-0509 Early style-inner cloth bag
009b 215-0510 Late style-inner cloth bag (OBSOLETE)
010 215-0226 Screw (OBSOLETE)
011 215-0512 Bellows
012 215-0513 Screw
013 215-0514 Bag flange (OBSOLETE)
014 215-0515 Lock ring
015 215-0227 Nut (OBSOLETE)
016 215-0516 Muffler assembly (OBSOLETE)
017 215-0505 Bag spring/clip assembly
018a 215-0520 Cloth bag Orange
018b 215-0222 Cloth bag Black
019 215-0223 Bag expander
020 215-0224 Seal
021 215-0521 Cup support and bellows (OBSOLETE)
022 215-0007 Latch (OBSOLETE)
023 215-0005 Bellows
024a 215-0009 Clamp band
024b 215-0226 Screw (OBSOLETE)
024c 215-0227 Nut (OBSOLETE)
025 215-0522 Bag flange
026 215-0006 Dirt cup (OBSOLETE)
027 215-0008 Seal
028 215-0504 Spring
N/S 215-0504 Spring
N/S 215-0517 Type A bag (3 pack)
N/S 991-9049 Paper vacuum bags (pkg of 3)
