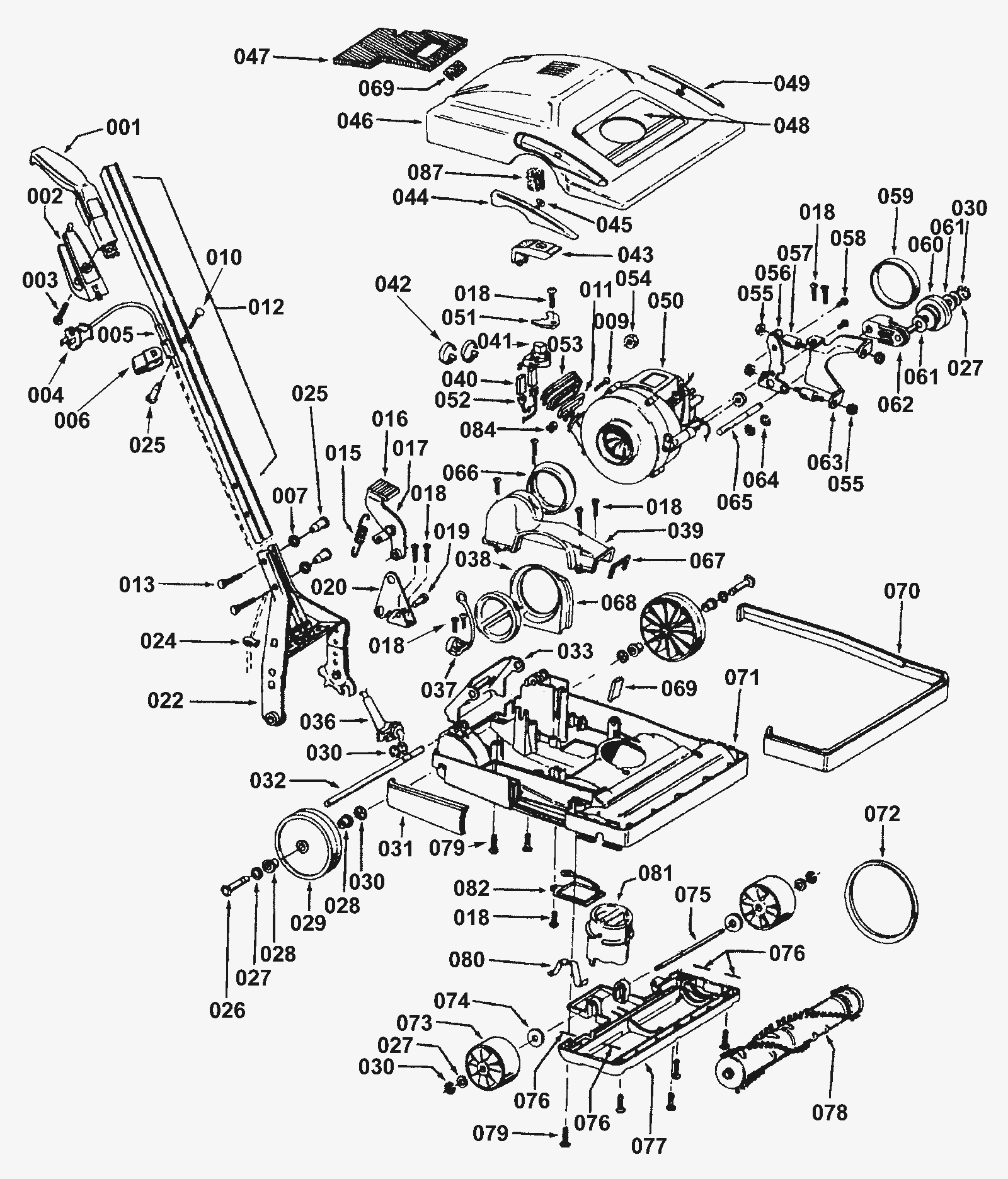

Entire Assembly

#PartDescription ReqNotesAvailability
001 215-0531 Handle grip
002 215-0532 Cord hook
003 215-0534 Screw
004 215-0535 Attached cord (OBSOLETE)
005 215-0533 Cord protector
006 215-0536 Cord clamp
007 215-0217 Washer
009 215-0582 Screw
010 215-0215 Handle bolt
011 215-0583 Band
012a 215-0529 Handle assembly
012b 215-0530 Handle
013 215-0539 Handle bolt
015 215-0593 Spring
016 215-0594 Foot pad
017 215-0595 Handle control lever
018 215-0556 Screw
019 215-0588 Shaft
020 215-0589 Lever support
022 215-0541 Bail
024 215-0540 Cord retainer
025 215-0258 Nut
026 215-0545 Rear axle (OBSOLETE)
027 215-0546 Washer
028 215-0547 Bearing
029 215-0548 Rear wheel (OBSOLETE)
030 215-0055 Retaining ring
031a 215-0551 Furniture guard U7069-080
031b 215-0552 Furniture guard C1800
032 215-0544 Bail shaft
033 215-0543 Exhaust flange
036 215-0542 Cord protector
037 215-0592 Strain relief
038a 215-0590 Cap U7069-080
038b 215-0591 Cap C1800
039 215-0570 Air duct
040 215-0585 Insulating pod (OBSOLETE)
041 215-0596 Switch (OBSOLETE)
042 215-0138 Wire tie
043 215-0598 Switch pedal (OBSOLETE)
044a 215-0599 Wear strip U7069-080
044b 215-0600 Wear strip C1800
045 215-0601 Speed nut
046a 215-0416 Hood U7069-080 Includes 044, 045, and 049
046b 215-0417 Hood U7069-080 Includes 044, 045, and 049
047 215-0606 Gasket
048a 215-0549 Nameplate U7069-080
048b 215-0550 Nameplate C1800
049a 215-0537 Wear strip U7069-080
049b 215-0538 Wear strip C1800
050 215-0581 Motor (OBSOLETE)
051 215-0597 Clamp
052 215-0586 Terminal (OBSOLETE)
053 215-0584 Bellows (OBSOLETE)
054 215-0580 Nut
055 215-0574 Nut
056 215-0605 Mounting bracket
057 215-0579 Sandwich mount (OBSOLETE)
058 215-0578 Screw
059 215-0002 Drive belt (2 pack)
060 215-0577 Pulley assembly (OBSOLETE)
061 215-0576 Washer brass
062 215-0575 Pulley arm
063 215-0573 Support bracket
064 215-0229 Lock ring
065 215-0571 Shaft
066 215-0418 Duct boot
067 215-0569 Duct gasket
068 215-0568 Cap lock
069 215-0567 Motor cushion
070a 215-0419 Furniture guard U7069-080
070b 215-0420 Furniture guard C1800
071 215-0421 Main body (OBSOLETE)
072 215-0003 Brush belt (OBSOLETE)
073 215-0560 Front wheel
074 215-0559 Washer
075 215-0563 Axle
076 215-0562 Bottom plate duct seal
077 215-0422 Bottom plate
078 215-0423 Agitator
079 215-0553 Screw (OBSOLETE)
080 215-0558 Spring (OBSOLETE)
081 215-0557 Adjustment cap (OBSOLETE)
082 215-0424 Access door
084 215-0227 Nut (OBSOLETE)
087 215-0602 Motor cushion
N/S 215-0555 Lens label
N/S 215-0608 Motor cushion
N/S 215-0609 Object cleanout label
N/S 215-0607 Intake duct
