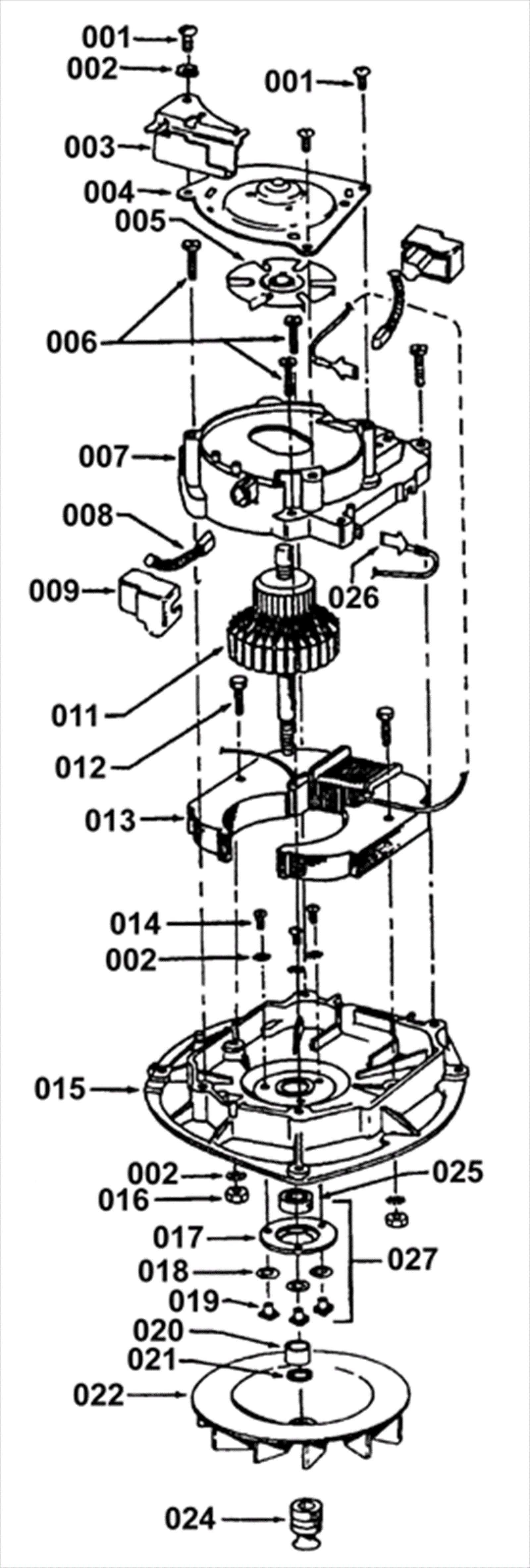

Motor Assembly

#PartDescription ReqNotesAvailability
001 N/A Not available Screw
002 215-0287 Washer
003 215-0288 Indicator guide
004 215-0289 Upper bearing (OBSOLETE)
005 215-0290 Vent fan (OBSOLETE)
006 215-0291 Screw
007 215-0292 Upper motor casting
008 215-0293 Carbon brush (OBSOLETE)
009 215-0294 Brush insulator
011 215-0295 Armature
012 215-0296 Bolt
013 215-0297 Field coil
014 215-0298 Screw
015 215-0299 Lower motor case
016 215-0300 Nut
017 215-0301 Retainer
018 215-0302 Washer
019 215-0303 Nut
020 215-0304 Spacer
021 215-0305 Washer
022 215-0306 Poly fan (OBSOLETE)
024 215-0307 Motor pulley
025 215-0001 Brush bearings
026 215-0308 Terminal
027 215-0309 Bearing kit (OBSOLETE)
N/S 215-0310 Indicator guide spring
