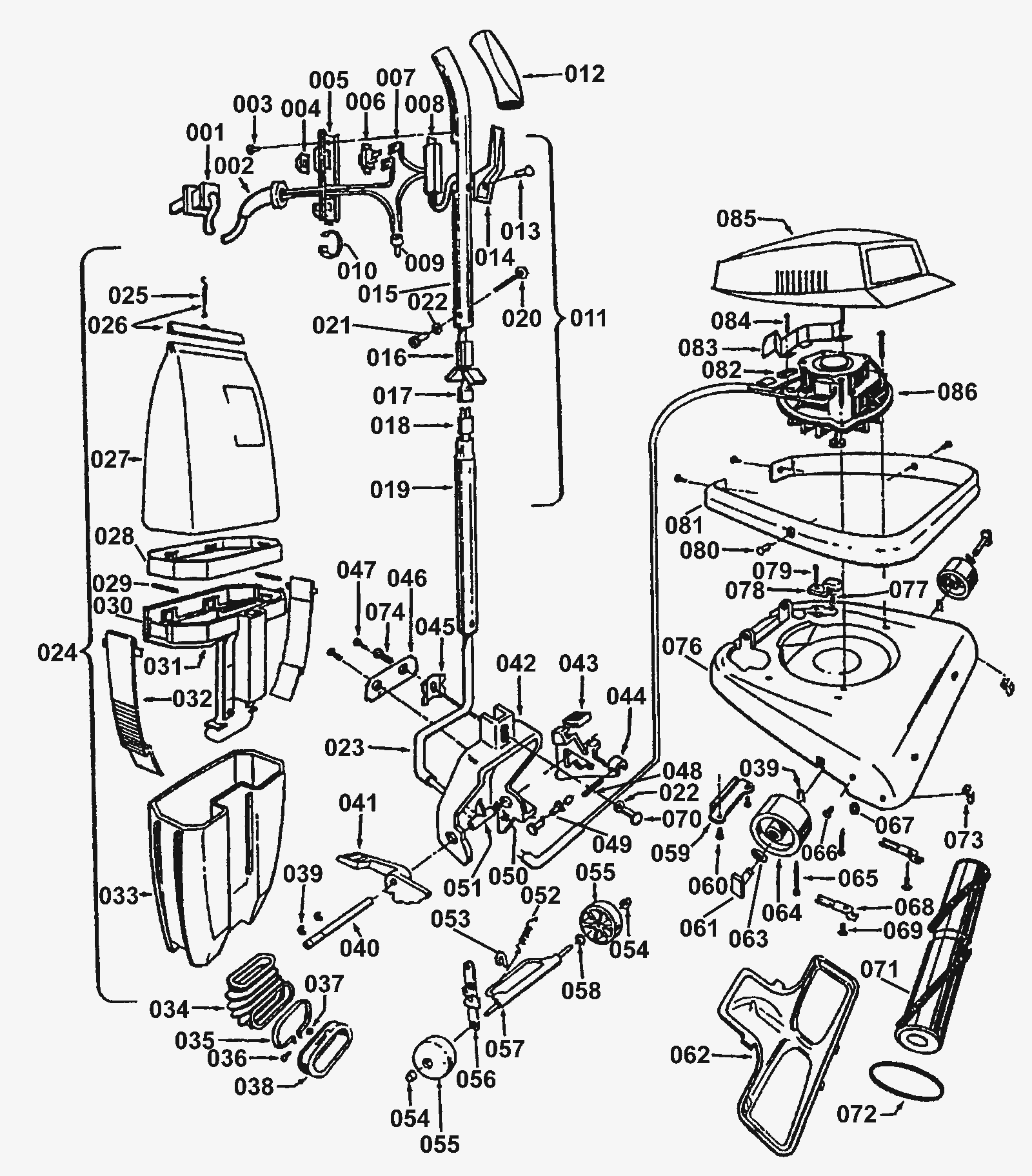

GUARDSMAN C1433 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 215-0198 Cord- 35' $32.63 usually ships 6-16 days
002 215-0199 Cord protector $1.24 usually ships 1-5 days
003 215-0200 Screw $1.58 usually ships 1-5 days
004 215-0201 Switch button (OBSOLETE) $0.99 usually ships 6-16 days
005 215-0202 Switch cover $4.36 usually ships 1-5 days
006 215-0203 Switch $3.10 usually ships 1-5 days
007 215-0204 Terminal $0.99 usually ships 1-5 days
008 215-0205 Switch case $3.82 usually ships 1-5 days
009 215-0206 Wire nut $0.99 usually ships 1-5 days
010 215-0138 Wire tie $1.58 usually ships 1-5 days
011 215-0207 Complete handle $85.26 usually ships 1-5 days
012 215-0208 Handle grip $4.97 usually ships 6-16 days
013 215-0209 Rivet $1.58 usually ships 1-5 days
014 215-0197 Cord clip $4.47 usually ships 6-16 days
015 215-0210 Upper handle $24.44 usually ships 1-5 days
016 215-0211 Insulator $1.87 usually ships 1-5 days
017 215-0212 Connector cord $6.16 usually ships 1-5 days
018 215-0213 Cord assembly $11.44 usually ships 1-5 days
019 215-0214 Lower handle $10.21 usually ships 1-5 days
020 215-0215 Handle bolt $2.05 usually ships 1-5 days
021 215-0216 Nut $4.42 usually ships 1-5 days
022 215-0217 Washer $0.99 usually ships 1-5 days
023 215-0218 Motor lead spring $0.99 usually ships 1-5 days
024 215-0219 Dust cup assembly $174.32 usually ships 1-5 days
025 215-0220 Spring $0.99 usually ships 1-5 days
026 215-0221 Bag clip and spring $9.97 usually ships 1-5 days
027 215-0222 Cloth bag $103.79 usually ships 6-16 days
028 215-0223 Bag expander $3.97 usually ships 1-5 days
029 215-0224 Seal $1.45 usually ships 1-5 days
030 215-0225 Support & bellows $17.25 usually ships 1-5 days
031 215-0008 Seal $1.94 ships same day
032 215-0007 Latch (OBSOLETE) $3.72 usually ships 6-16 days
033 215-0006 Dirt cup (OBSOLETE) $32.95 usually ships 6-16 days
034 215-0005 Bellows $14.34 usually ships 6-16 days
035 215-0009 Clamp band $5.17 usually ships 1-5 days
036 215-0226 Screw $1.58 usually ships 1-5 days
037 215-0227 Nut $1.58 usually ships 1-5 days
038 215-0228 Bag flange (OBSOLETE) $4.60 usually ships 6-16 days
039 215-0229 Lock ring $4.25 usually ships 1-5 days
040 215-0230 Bail shaft $3.83 usually ships 1-5 days
041 215-0231 Nozzle adjustment lever $2.02 usually ships 1-5 days
042 215-0232 Bail $37.37 usually ships 1-5 days
043 215-0233 Foot pad $0.99 usually ships 1-5 days
044 215-0234 Handle control lever $6.31 usually ships 1-5 days
045 215-0235 Handle plate $2.38 usually ships 1-5 days
046 215-0236 Bail cover plate $1.24 usually ships 1-5 days
047 215-0237 Screw $0.99 usually ships 1-5 days
048 215-0238 Pivot pin $0.99 usually ships 1-5 days
049 215-0239 Roller kit $0.99 usually ships 1-5 days
050 215-0240 Spring $0.99 usually ships 1-5 days
051 215-0241 Bag flange clamp lever $0.99 usually ships 1-5 days
052 215-0242 Spring $1.89 usually ships 1-5 days
053 215-0243 Yoke $1.58 usually ships 1-5 days
054 215-0244 Wheel retainer (OBSOLETE) $1.58 usually ships 6-16 days
055 215-0245 Rear wheel (OBSOLETE) $3.81 usually ships 6-16 days
056 215-0246 Cam follower $3.10 usually ships 1-5 days
057 215-0247 Wheel shaft & support assembly $8.66 usually ships 1-5 days
058 215-0248 Washer $1.89 usually ships 1-5 days
059 215-0249 Axle retainer $2.09 usually ships 1-5 days
060 215-0250 Screw $0.99 usually ships 1-5 days
061 215-0251 Wheel shaft $0.99 usually ships 1-5 days
062 215-0252 Bottom plate (OBSOLETE) $14.29 usually ships 6-16 days
063 215-0253 Washer $1.58 usually ships 1-5 days
064 215-0254 Carrier wheel $1.79 usually ships 1-5 days
065 215-0044 Screw, self tapping $1.58 usually ships 1-5 days
066 215-0255 Rivet $0.99 usually ships 1-5 days
067 215-0256 Washer $0.99 usually ships 1-5 days
068 215-0257 Latch $1.28 usually ships 1-5 days
069 215-0250 Screw $0.99 usually ships 1-5 days
070 215-0258 Nut $0.99 usually ships 1-5 days
071 215-0259 Agitator $43.19 usually ships 6-16 days
072 215-0034 Belt $1.96 usually ships 6-16 days
073 215-0260 Agitator retainer spring $1.89 usually ships 1-5 days
074 215-0261 Handle bolt $1.85 usually ships 1-5 days
076 215-0262 Main body $57.79 usually ships 1-5 days
077 215-0263 Spring $0.99 usually ships 1-5 days
078 215-0264 Pin retainer $0.99 usually ships 1-5 days
079 215-0250 Screw $0.99 usually ships 1-5 days
080 215-0265 Rivet $1.58 usually ships 1-5 days
081 215-0266 Furniture guard $7.32 usually ships 1-5 days
082 215-0267 Retainer & sleeve $0.99 usually ships 1-5 days
083 215-0269 Baffle $0.99 usually ships 1-5 days
084 215-0270 Screw $1.58 usually ships 1-5 days
085 215-0271 Hood $24.44 usually ships 1-5 days
086 215-0272 Motor, 1 speed $150.49 usually ships 1-5 days
