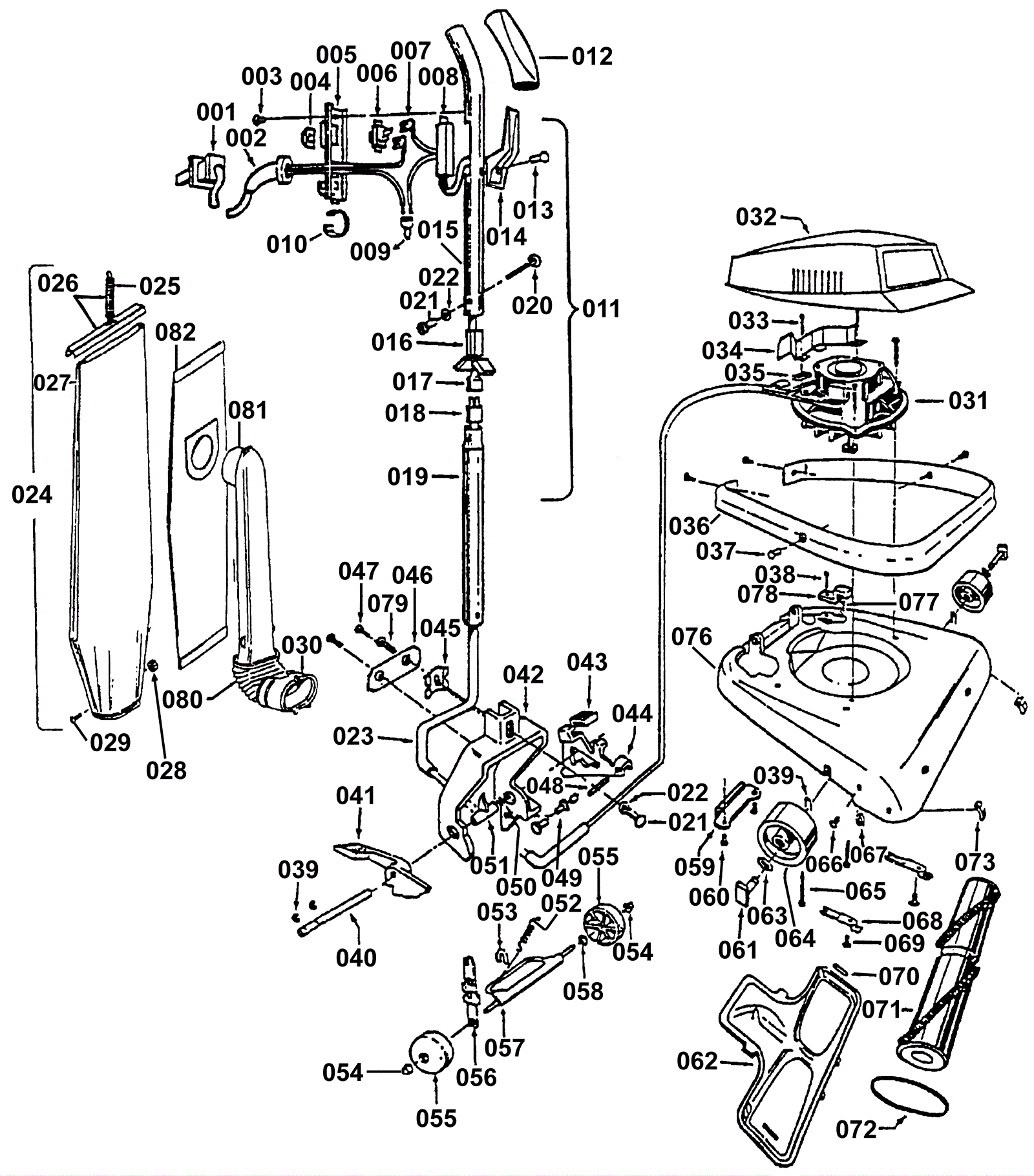

Entire Assembly

#PartDescription ReqNotesAvailability
001a 215-0311 50' cord (OBSOLETE)
001b 215-0312 40' cord
002 N/A Not available Not available (cord protector)
003 215-0200 Screw
004 215-0201 Switch button (OBSOLETE)
005 215-0202 Switch cover
006 215-0203 Switch
007 215-0204 Terminal
008 215-0205 Switch case
009 215-0313 Wire nut
010 215-0138 Wire tie
011 215-0314 Handle complete
012 215-0208 Handle grip
013 215-0209 Rivet
014 215-0197 Cord clip
015 215-0210 Upper handle
016 215-0211 Insulator
017 215-0212 Connector cord
018 215-0213 Cord assembly
019 215-0214 Lower handle
020 215-0215 Handle bolt
021 215-0216 Nut
022 215-0217 Washer
023 215-0315 Tubing
024a 215-0316 Outer bag complete AAW/AG-C1431
024b 215-0317 Outer bag complete (OBSOLETE) AG-C1439
025 215-0504 Spring
026 215-0318 Bag clip & spring
027a 215-0319 Cloth bag (OBSOLETE) AAW/AG-C1431
027b 215-0320 Cloth bag AG-C1439
028 215-0227 Nut (OBSOLETE)
029 215-0226 Screw (OBSOLETE)
030 215-0228 Bag flange (OBSOLETE)
031a 215-0321 Motor (OBSOLETE) C1431
031b 215-0272 Motor, 1 speed C1439
032a 215-0271 Hood AG-C1431
032b 215-0322 Hood AG-C1439
033 215-0323 Screw
034 215-0269 Baffle
035 215-0267 Retainer & sleeve
036 215-0266 Furniture guard
037 215-0265 Rivet
038 215-0250 Screw
039 215-0229 Lock ring
040 215-0230 Bail shaft
041 215-0231 Nozzle adjustment lever
042 215-0232 Bail
043 215-0233 Foot pad
044 215-0234 Handle control lever
045 215-0235 Handle plate
046 215-0236 Bail cover plate
047 215-0237 Screw
048 215-0238 Pivot pin
049 215-0239 Roller kit
050 215-0240 Spring
051 215-0241 Bag flange clamp lever
052 215-0242 Spring
053 215-0243 Yoke
054 215-0244 Wheel retainer (OBSOLETE)
055 215-0245 Rear wheel (OBSOLETE)
056 215-0246 Cam follower
057 215-0324 Wheel shaft
058 215-0248 Washer
059 215-0249 Axle retainer
060 215-0250 Screw
061 215-0251 Wheel shaft
062 215-0252 Bottom plate (OBSOLETE)
063 215-0253 Washer
064 215-0254 Carrier wheel
065 215-0044 Screw, self tapping
066 215-0255 Rivet
067 215-0256 Washer
068 215-0257 Latch
069 215-0258 Nut
070 N/A Not available Not available(support pad)
071 215-0259 Agitator
072 215-0034 Belt
073 215-0260 Agitator retainer spring
076 215-0262 Main body
077 215-0263 Spring
078 215-0264 Pin retainer
079 215-0261 Handle bolt
080 215-0005 Bellows
081 215-0325 Top fill tube (OBSOLETE)
082a 215-0517 Type A bag (3 pack)
082b 991-9049 Paper vacuum bags (pkg of 3)
