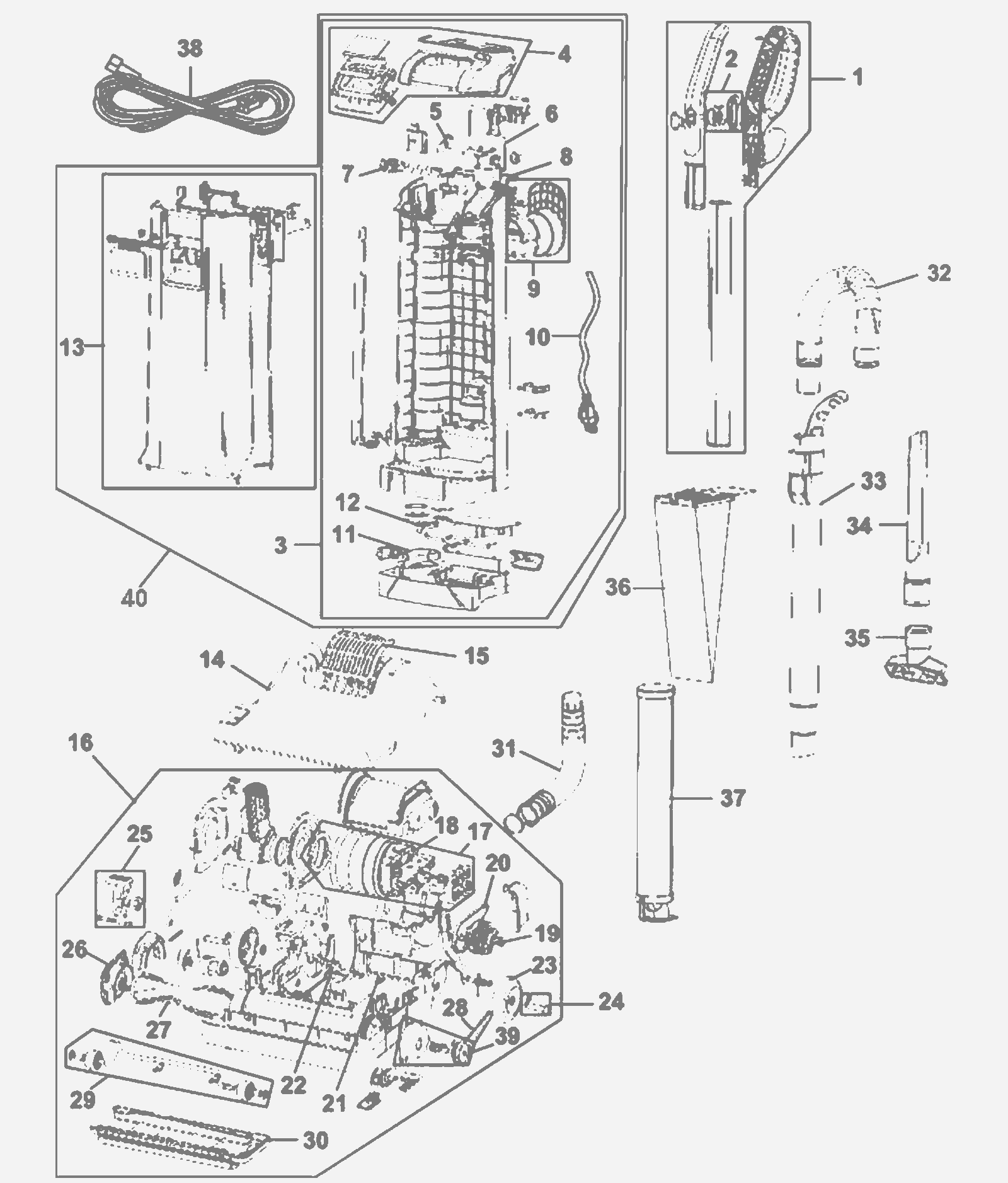

INSIGHT CH50100 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-4210 Handle assembly (OBSOLETE) $75.90 (includes item 2) usually ships 12-20 days
2 215-4304 Switch assembly $7.24 usually ships 12-20 days
3 215-4305 Back housing assembly with no locating hole $38.10 (includes 4-12) usually ships 12-20 days
4 215-4306 Upper housing assembly with PCB and LED display $252.08 usually ships 12-20 days
5 215-4309 Male handle connect assembly $11.33 usually ships 12-20 days
6 215-4310 Power control board assembly $121.24 usually ships 12-20 days
7 215-4311 Pressure switch assembly $18.07 usually ships 12-20 days
8 215-4312 Hose release assembly $4.77 usually ships 12-20 days
9 215-4313 Carry handle/cord wrap assembly (OBSOLETE) $13.18 usually ships 12-20 days
10 215-4314 Pigtail assembly (OBSOLETE) Call for price usually ships 12-20 days
11 215-4315 Lower hose release tab $0.99 usually ships 12-20 days
12 215-4316 Lower hose seal $2.45 usually ships 12-20 days
13a 215-4317 Bag door assembly with no locating tab $66.17 usually ships 12-20 days
13b 215-4318 Bag door assembly with locating tab $61.05 usually ships 12-20 days
14 215-4319 13 inch hood assembly $55.96 usually ships 12-20 days
15 228-3124 Exhaust filter $7.62 usually ships 12-20 days
16 215-4224 Brushroll nozzle housing $313.82 (includes 21, 23-25 and 29) usually ships 12-20 days
17 215-4323 Motor assembly $226.22 usually ships 12-20 days
18 215-4324 Carbon brush assembly $29.25 usually ships 12-20 days
19 215-4325 Torque pulley assembly $41.79 usually ships 12-20 days
20 215-4327 Motor belt $2.86 usually ships 12-20 days
21 215-4328 Hall sensor board $10.40 usually ships 12-20 days
22 215-4329 Nozzle pressure switch assembly $53.46 usually ships 12-20 days
23 215-4330 Rear wheel assembly $18.12 usually ships 12-20 days
24 215-4331 Wheel shaft and E-clip assembly $15.84 usually ships 12-20 days
25 215-4332 Handle release pedal assembly (OBSOLETE0 $29.74 usually ships 12-20 days
26 215-4220 Access door assembly (OBSOLETE) $8.77 usually ships 12-20 days
27 215-4221 Brush roller $34.11 usually ships 12-20 days
28 215-4223 Belt $11.70 usually ships 12-20 days
29 215-4335 Front wheel assembly (OBSOLETE) $54.11 usually ships 12-20 days
30 215-4336 Bottom plate assembly $40.89 usually ships 12-20 days
31 215-4338 Lower hose assembly $36.08 usually ships 12-20 days
32 215-4339 Upper hose assembly $59.72 usually ships 12-20 days
33 215-4340 Wand assembly $39.90 usually ships 12-20 days
34 215-4341 Crevice tool $7.55 usually ships 12-20 days
35 215-4342 Upholstery tool assembly $7.55 usually ships 12-20 days
36 215-0925 Paper vacuum bags - type SB (pkg of 10) $47.04 usually ships 12-20 days
37a 215-0948 HEPA filter $56.18 usually ships 12-20 days
37b 215-0948 HEPA filter $56.18 usually ships 12-20 days
38 215-4212 50 foot extension cord (orange) (OBSOLETE) $43.30 usually ships 12-20 days
39 215-4344 Clutch assembly (OBSOLETE) $134.49 usually ships 12-20 days
40 215-4349 Back housing assembly with locating hole $168.17 usually ships 12-20 days
