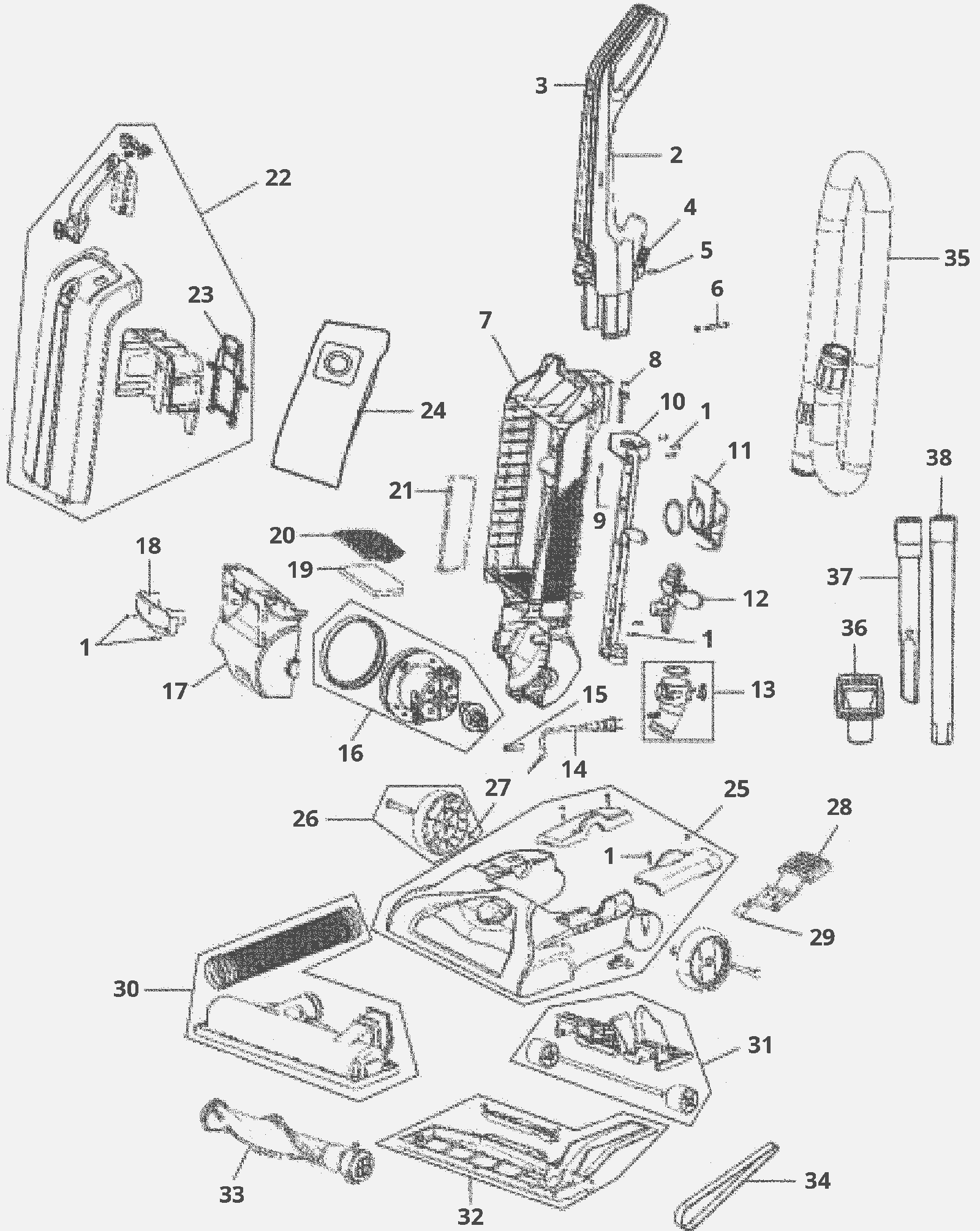

Entire Assembly

#PartDescription ReqNotesAvailability
1 215-9067 Screw #8 x 6mm (OBSOLETE) 8
2 215-9068 Handle assembmly (OBSOLETE) 1
3 215-9069 Switch 1
4 215-9070 Upper cord hook (OBSOLETE) 1
5 215-0121 Self tapping screw 1
6 215-9071 Screw 1
7 215-9072 Main back panel assembly (black) (OBSOLETE) 1
8 215-9073 Wire assembly with plug (OBSOLETE) 1
9 215-9074 18awg wire fuse assembly (OBSOLETE) 1
10 215-9075 Wire cover (OBSOLETE) 1
11 215-9076 Dirt inlet connector 1
12 215-9077 Lower cord wrap (OBSOLETE) 1
13 215-9078 Lower hose adaptor assembly 1
14 215-9079 35 foot power cord assembly (orange) 1
15 215-9080 Plastic pigtail grommet (OBSOLETE) 1
16a 215-9081 Motor assembly with gasket/grommet 1
16b N/A Not available 1 (motor ground wire)
17 215-0944 Front motor cover (black) 1
18 215-9082 Light lens (OBSOLETE) 1
19 215-9083 Inlet filter 1
20 215-9084 Inlet filter cover (OBSOLETE) 1
21 215-9085 Exhaust filter 1
22 N/A Not available 1 (bag door assembly)
23 215-9086 Drop handle (OBSOLETE) 1
24a 215-9087 Type Y bag (OBSOLETE) 1
24b 215-0945 Allergen vacuum bag - Type Y (pkg of 3) (OBSOLETE) 1
24c 215-4206 Type Y HEPA vacuum bag (OBSOLETE) 1
24d 215-9088 Type Y bag hepa (2 pkg) 1
24e 215-4205 Type Y carbon HEPA vacuum bag 1
24f 215-9089 Type Y bag hepa charcoal (2 pkg) 1
25 N/A Not available 1 (nozzle base assembly)
26 215-4354 Rear wheel assembly (OBSOLETE) 1 (includes 27)
27 215-9090 E-clip 1
28 N/A Not available 1 (Handle release pedal)
29 N/A Not available 1 (Handle release spring)
30 N/A Not available 1 (Brush roll housing)
31 215-9155 Roller lifter 1
32 215-0921 Nozzle guard assembly 1
33 215-4359 Brush roll (OBSOLETE) 1
34 215-4213 Belt 1
35 215-1103 8 foot upper hose assembly 1
36 215-0990 Upholstery tool (OBSOLETE) 1
37 N/A Not available 1 (Crevice tool)
38 N/A Not available 1 (Wand)
