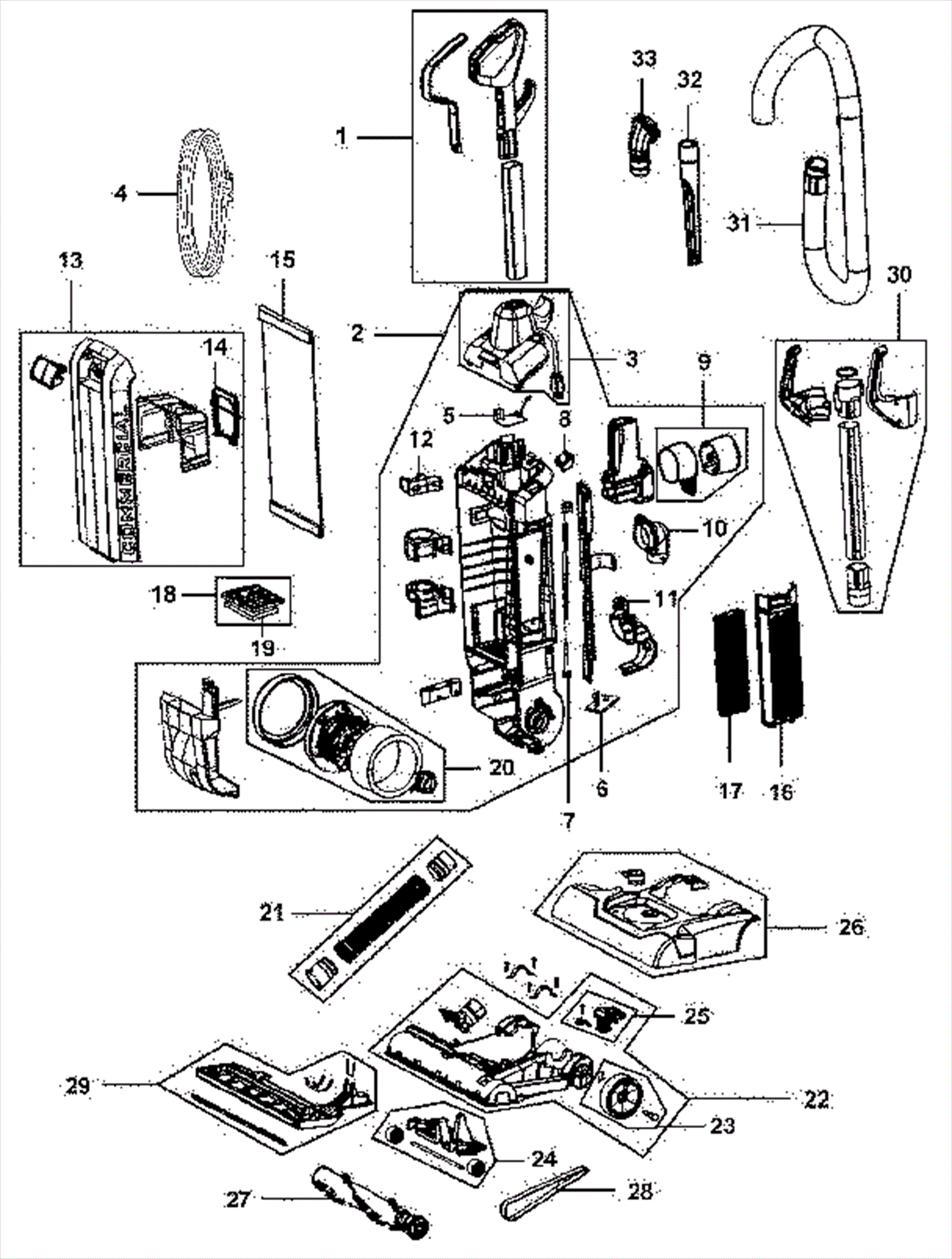

# | Part | Description | Price | Req | Notes | Availability |
1 |
215-0949
|
Handle assembly |
$36.78
|
1 |
|
usually ships 6-16 days |
2a |
215-0950
|
Main body assembly |
$107.22
|
1 |
(Fits CH54013 and CH54015) |
usually ships 6-16 days |
2b |
215-0951
|
Main body assembly (OBSOLETE) |
$79.94
|
1 |
(Fits CH54113 and CH54115) |
usually ships 6-16 days |
3 |
215-0952
|
Upper housing assembly and shoulder cover (OBSOLETE) |
$18.94
|
1 |
|
usually ships 6-16 days |
4 |
215-4212
|
50 foot extension cord (orange) (OBSOLETE) |
$43.30
|
1 |
|
usually ships 6-16 days |
5a |
215-0953
|
Upper power control board assembly (OBSOLETE) |
$10.98
|
1 |
(Fits CH54013 and CH54015) |
usually ships 6-16 days |
5b |
215-0954
|
Power control board |
$28.77
|
1 |
(Fits CH54113 and CH54115) |
usually ships 6-16 days |
6 |
215-0955
|
Circuit board (OBSOLETE) |
$11.91
|
1 |
(Fits CH54113 and CH54115) |
usually ships 6-16 days |
7 |
215-0956
|
Wiring harness |
Call for price
|
1 |
(Fits CH54113 and CH54115) |
usually ships 6-16 days |
8 |
215-0957
|
Switch assembly |
$11.57
|
1 |
|
usually ships 6-16 days |
9 |
215-0958
|
Carry handle assembly |
$28.64
|
1 |
|
usually ships 6-16 days |
10 |
215-0959
|
Bag inlet |
$7.70
|
1 |
|
usually ships 6-16 days |
11 |
215-0960
|
Hose wrap |
$8.99
|
1 |
|
usually ships 16-36 days |
12 |
215-0961
|
Hose guide |
$10.24
|
1 |
|
usually ships 6-16 days |
13 |
215-0962
|
Bag door assembly (OBSOLETE) |
$46.22
|
1 |
|
usually ships 6-16 days |
14 |
215-0963
|
Bag drop release |
Call for price
|
1 |
|
usually ships 6-16 days |
15a |
215-4229
|
CU2 paper vacuum bag (pkg of 10) |
$24.73
|
1 |
(standard 10 pack) |
ships same day |
15b |
215-4230
|
Paper vacuum bag (pkg of 10) |
$31.54
|
1 |
(allergen 10 pack) |
usually ships 6-16 days |
15c |
991-6040
|
Allergen vacuum bags (pkg of 10) |
$12.65
|
1 |
(NON-OEM) (allergen 10 pack) |
ships same day |
16 |
215-0966
|
Exhaust filter assembly |
$31.83
|
1 |
(HEPA) |
usually ships 6-16 days |
17 |
215-0967
|
Exhaust filter assembly |
$12.94
|
1 |
(carbon) |
ships same day |
18 |
215-0968
|
Inlet filter assembly |
Call for price
|
1 |
|
usually ships 6-16 days |
19 |
215-4231
|
Filter |
$11.33
|
1 |
|
usually ships 6-16 days |
20 |
215-0970
|
Motor assembly |
$148.13
|
1 |
|
usually ships 6-16 days |
21 |
215-0971
|
Lower hose assembly (OBSOLETE) |
$13.50
|
1 |
|
usually ships 6-16 days |
22a |
215-0972
|
Nozzle base assembly with wheels (OBSOLETE) |
$43.26
|
1 |
(Fits CH54013 and CH54113) |
usually ships 6-16 days |
22b |
215-0973
|
Nozzle base assembly with wheels (OBSOLETE) |
$57.71
|
1 |
(Fits CH54015 and CH54115) |
usually ships 6-16 days |
23 |
215-0974
|
Rear wheel assembly with hardware (OBSOLETE) |
$23.49
|
1 |
|
usually ships 6-16 days |
24 |
215-0975
|
Roller lifter assembly |
$31.88
|
1 |
|
ships same day |
25 |
215-0976
|
Handle release pedal with hardware |
$6.91
|
1 |
|
ships same day |
26a |
215-0977
|
Nozzle cover with height adjustment (OBSOLETE) |
$57.79
|
1 |
(Fits CH54013) |
usually ships 6-16 days |
26b |
215-0978
|
Nozzle cover with height adjustment |
$58.99
|
1 |
(Fits CH54015) |
usually ships 6-16 days |
26c |
215-0979
|
Nozzle cover with height adjustment (OBSOLETE) |
$58.39
|
1 |
(Fits CH54113) |
usually ships 6-16 days |
26d |
215-0980
|
Nozzle cover with height adjustment |
$61.62
|
1 |
(Fits CH54115) |
usually ships 6-16 days |
27a |
215-0981
|
Brush roll assembly (OBSOLETE) |
$38.60
|
1 |
(Fits CH54013) |
usually ships 6-16 days |
27b |
215-0982
|
Brush roll assembly |
$33.21
|
1 |
(Fits CH54015) |
usually ships 6-16 days |
27c |
215-0983
|
Brush roll assembly |
$38.63
|
1 |
(Fits CH54113) |
ships same day |
27d |
215-0984
|
Brush roll assembly |
$36.98
|
1 |
(Fits CH54115) |
usually ships 6-16 days |
28a |
215-4213
|
Belt |
$7.65
|
1 |
(Fits CH54013 and CH54015) |
usually ships 6-16 days |
28b |
215-4232
|
Belt |
$19.99
|
1 |
(Fits CH54113 and CH54115) |
usually ships 6-16 days |
29a |
215-0985
|
Bottom plate (OBSOLETE) |
$34.17
|
1 |
(Fits CH54013 and CH54113) |
usually ships 16-36 days |
29b |
215-0986
|
Bottom plate (OBSOLETE) |
$47.97
|
1 |
(Fits CH54015 and CH54115) |
usually ships 6-16 days |
30 |
215-0987
|
Handle and wand assembly |
$38.82
|
1 |
|
usually ships 6-16 days |
31 |
215-0988
|
Upper hose assembly |
$15.30
|
1 |
|
usually ships 16-36 days |
32 |
215-0989
|
Crevice tool (OBSOLETE) |
$5.48
|
1 |
|
usually ships 6-16 days |
33 |
215-0990
|
Upholstery tool |
$1.63
|
1 |
|
usually ships 6-16 days |
