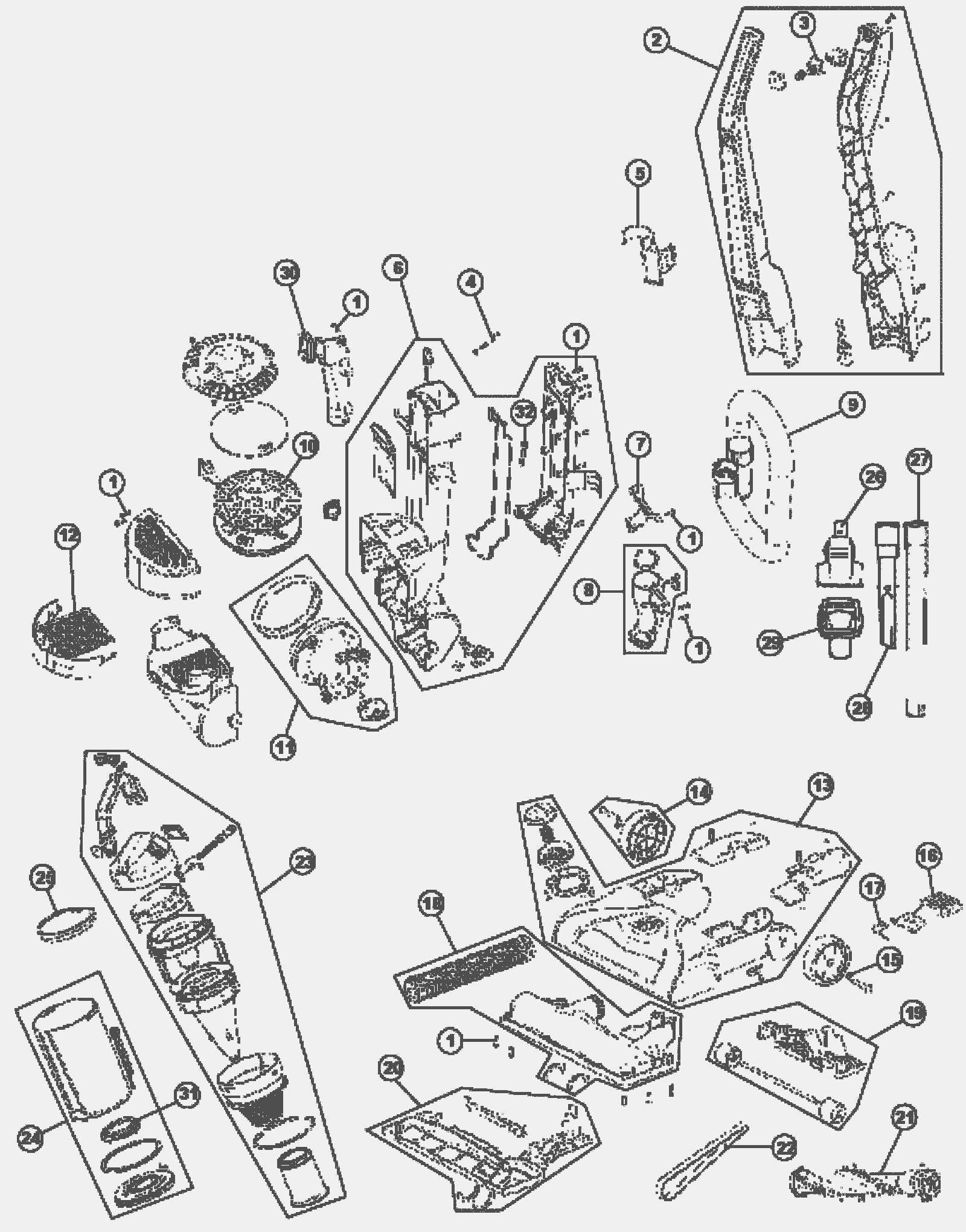

UH70120 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-9067 Screw #8 x 6mm (OBSOLETE) $0.99 16 usually ships 12-20 days
2 N/A Not available Call for price 1 (includes 3) (handle assembly) usually ships 3-26 days
3 215-9069 Switch $2.57 1 usually ships 12-20 days
4 215-9071 Screw $6.56 1 usually ships 12-20 days
5 N/A Not available Call for price 1 (turbo tool clip) usually ships 3-26 days
6 N/A Not available Call for price 1 (includes 32) (main back panel assembly) usually ships 3-26 days
7 N/A Not available Call for price 1 (hose wrap) usually ships 3-26 days
8 N/A Not available Call for price 1 (lower hose adapter assembly) usually ships 3-26 days
9 215-1103 8 foot upper hose assembly $16.12 1 usually ships 31-57 days
10 215-4198 Cord reel assembly $72.55 1 usually ships 12-20 days
11 215-9081 Motor assembly with gasket/grommet $60.52 1 usually ships 12-20 days
12 215-0912 Filter $11.55 1 usually ships 12-20 days
13 215-1104 Nozzle base assembly (sage) $19.36 1 usually ships 31-57 days
14 N/A Not available Call for price 2 (rear wheel assembly) usually ships 3-26 days
15 215-9090 E-clip $0.99 2 usually ships 12-20 days
16 N/A Not available Call for price 1 (handle release pedal) usually ships 3-26 days
17 N/A Not available Call for price 1 (handle release pedal spring) usually ships 3-26 days
18 215-1105 Brush roll housing $27.80 1 usually ships 12-20 days
19 215-9155 Roller lifter $10.12 1 usually ships 31-57 days
20 215-0921 Nozzle guard assembly (OBSOLETE) $14.73 1 usually ships 31-57 days
21 215-4359 Brush roll (OBSOLETE) $24.45 1 usually ships 12-20 days
22 215-4213 Belt $7.65 1 ships same day
23 215-1106 Dirt cup lid assembly (sage) $89.41 1 usually ships 12-20 days
24 N/A Not available Call for price 1 (includes 31, 34) (dirt cup assembly) usually ships 3-26 days
25 215-1107 Primary filter $6.44 1 usually ships 12-20 days
26 N/A Not available Call for price 1 (turbo tool assembly) usually ships 3-26 days
27 N/A Not available Call for price 1 (extension wand) usually ships 3-26 days
28 N/A Not available Call for price 1 (crevice tool) usually ships 3-26 days
29 215-0990 Upholstery tool (OBSOLETE) $1.63 1 usually ships 12-20 days
30 215-1108 Inlet tube seal $3.72 1 usually ships 12-20 days
31 215-1109 Dirt cup seal $2.20 1 usually ships 12-20 days
32 215-9074 18awg wire fuse assembly (OBSOLETE) Call for price 1 usually ships 12-20 days
N/S N/A Not available Call for price 1 (cord rewind inlet) usually ships 3-26 days
N/S 215-1110 Dirt cup bottom seal $1.56 2 usually ships 12-20 days
