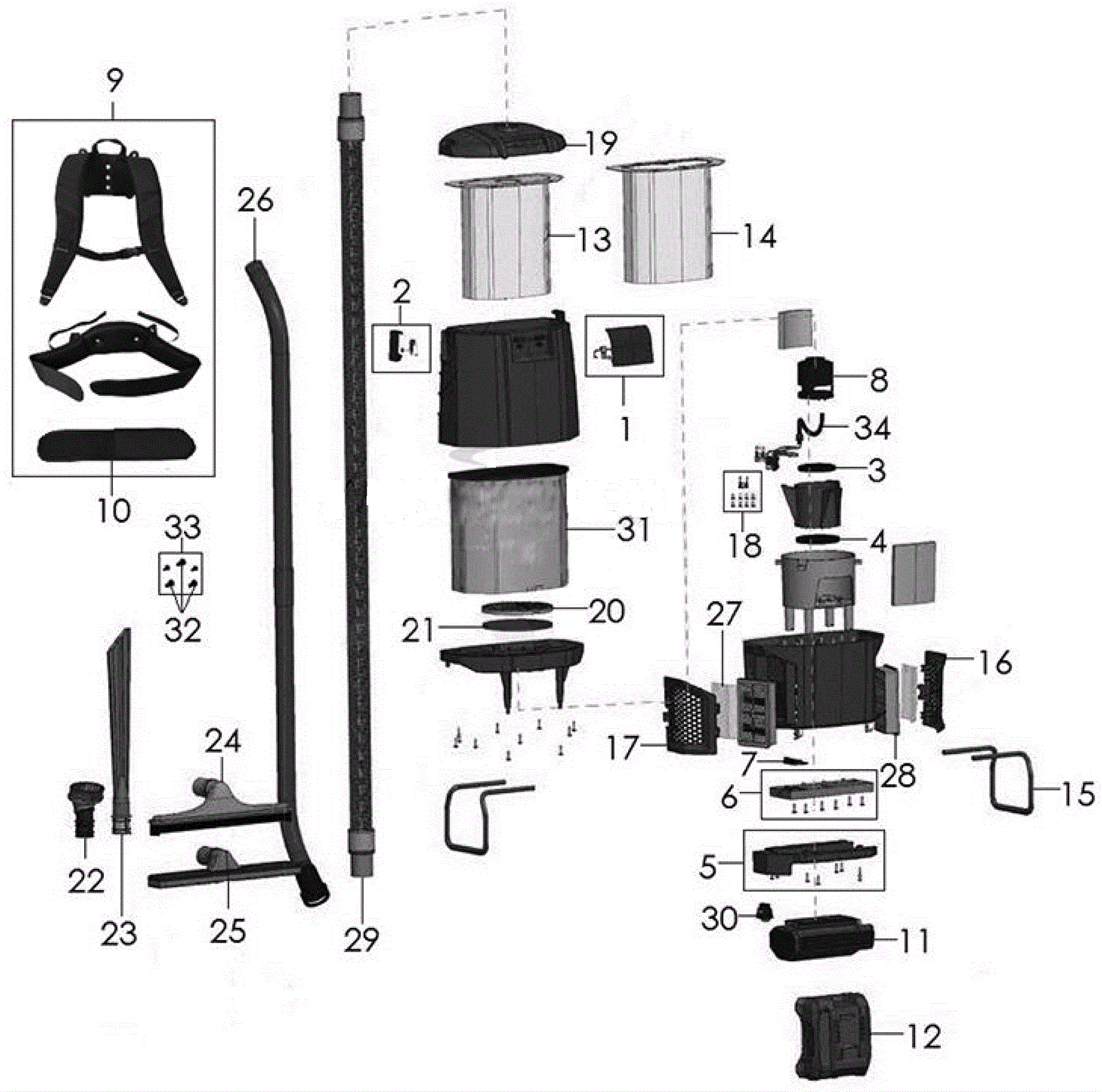

CH93619 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-2071 Latch with hinge bracket and screws $9.22 1 usually ships 6-16 days
2 215-9158 Side latch w/ hinge bracket and screw kit $6.61 1 usually ships 16-36 days
3 N/A Not available Call for price 1 (top motor support) usually ships 3-26 days
4 215-2087 Lower motor support $4.91 1 usually ships 16-36 days
5 215-2072 Frame mount with screws kit $9.22 1 usually ships 6-16 days
6 215-2073 Battery rails and screws $9.21 1 usually ships 6-16 days
7 215-2088 Blade cover $3.83 1 usually ships 16-36 days
8 215-2001 Service motor $88.31 1 usually ships 16-36 days
9 215-2000 Harness $72.57 1 (includes 10) usually ships 6-16 days
10 215-2074 Strap $6.91 1 usually ships 6-16 days
11 N/A Not available Call for price 1 (40V 6Ah battery) usually ships 3-26 days
12 215-2075 Charger base $215.89 1 usually ships 6-16 days
13 215-2076 Paper bags (10 pack) (type b) $35.43 1 usually ships 6-16 days
14 215-9160 Paper bag (pkg 10) $30.06 1 usually ships 6-16 days
15 215-2077 Battery service frame $18.43 2 usually ships 6-16 days
16 215-2078 Right hand service filter door $6.31 1 usually ships 6-16 days
17 215-2079 Left hand service filter door $5.76 1 usually ships 6-16 days
18 215-2080 Fuse and screw kit $5.50 1 usually ships 6-16 days
19 215-2081 Top cap lid $8.06 1 usually ships 6-16 days
20 215-2089 Motor inlet foam guard $6.28 1 usually ships 16-36 days
21 215-9091 Media inlet filter $5.50 1 usually ships 6-16 days
22 215-2082 Dust brush $5.50 1 usually ships 6-16 days
23 215-2083 Crevice tool $6.91 1 usually ships 6-16 days
24 215-2084 Hard floor nozzle $13.82 1 usually ships 6-16 days
25 215-2085 Floor tool $16.13 1 ships same day
26 215-2086 Wand $61.04 1 ships same day
27 215-9092 Media activated carbon filter $6.90 1 usually ships 6-16 days
28 215-9101 Hepa filter (pkg of 2) (OBSOLETE) $20.41 1 usually ships 6-16 days
29 215-9154 Hose $28.81 1 usually ships 6-16 days
30 215-4364 Switch $11.52 1 ships same day
31 215-9093 Cloth bag $12.43 1 usually ships 6-16 days
32 215-9102 Harness adjustment screw $4.73 3 usually ships 6-16 days
33 N/A Not available Call for price 1 (harness screw kit) (includes 32) usually ships 3-26 days
34 215-4365 Service wire harness $23.03 1 usually ships 6-16 days
