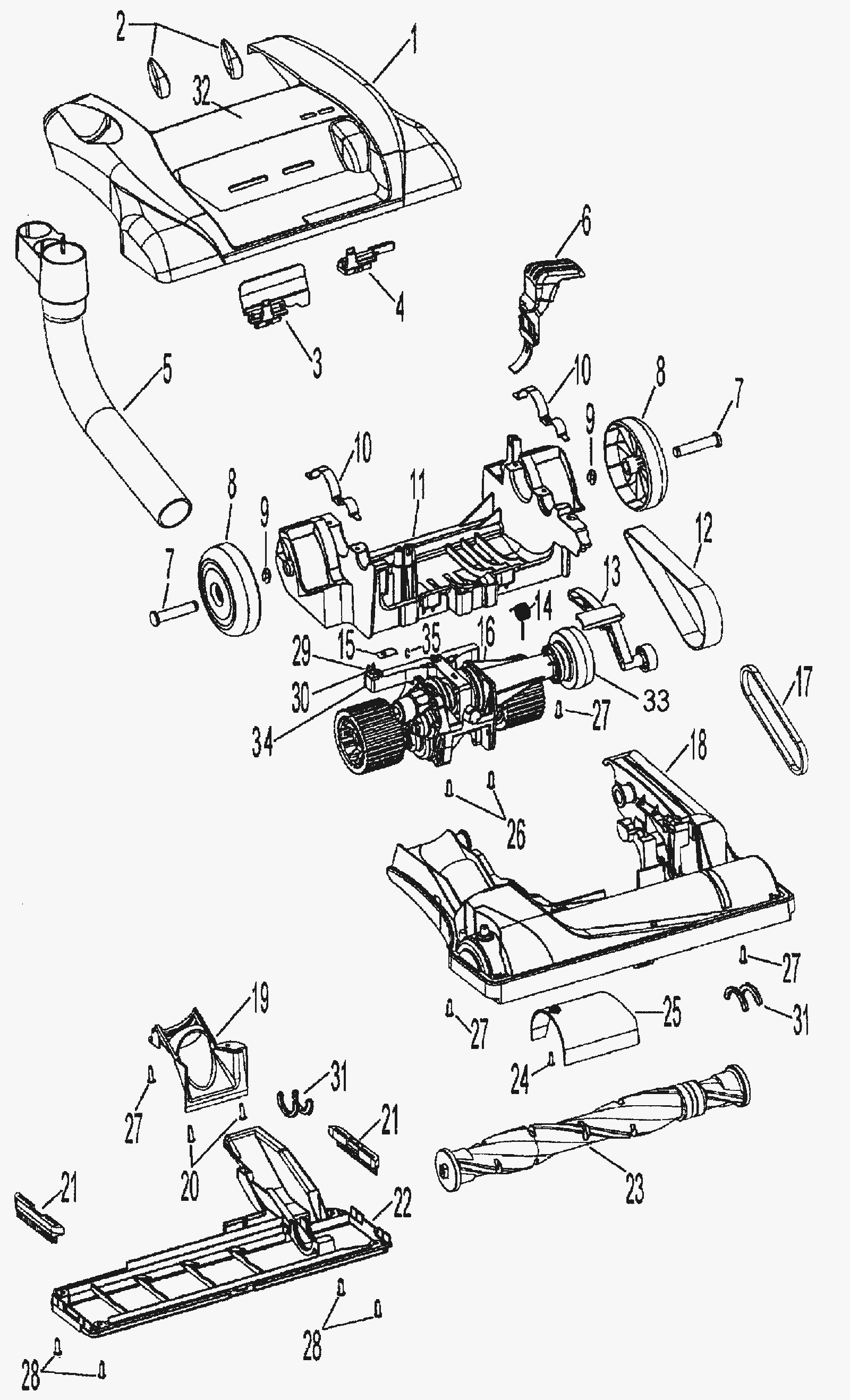

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
215-4162
|
Hood assembly |
1 |
(model u6439-900) |
|
1b |
N/A
|
Not available |
1 |
(model u6454-900) (hood/nozzle cover (ice blue)) |
|
1c |
N/A
|
Not available |
1 |
(model u6485-900) (hood/nozzle cover (techno blue)) |
|
1d |
N/A
|
Not available |
1 |
(models uh50000 and uh50005b) (hood/nozzle cover (aluminum alloy)) |
|
2a |
215-2057
|
Height adjustment knob |
2 |
(models u6439-900 and u6454-900) |
|
2b |
215-0871
|
Knob |
2 |
(models u6485-900, uh50000, and uh50005b) |
|
3 |
215-2058
|
Height adjustment cam |
1 |
|
|
4 |
215-0872
|
Idler arm lock (OBSOLETE) |
1 |
|
|
5 |
N/A
|
Not available |
1 |
(wand/hose holder) |
|
6 |
215-4135
|
Handle release lever |
1 |
|
|
7 |
215-0057
|
Rear axle (OBSOLETE) |
2 |
|
|
8a |
N/A
|
Not available |
2 |
(models u6439-900 and u6454-900) (rear wheel) |
|
8b |
N/A
|
Not available |
2 |
(rear wheel assembly) |
|
9 |
215-0055
|
Retaining ring |
2 |
|
|
10 |
215-2059
|
Trunion cover |
2 |
|
|
11 |
N/A
|
Not available |
1 |
(main body/nozzle base (dark charcoal gray)) |
|
12 |
215-0823
|
Flat belt |
1 |
|
|
13a |
N/A
|
Not available |
1 |
(idler arm assembly) |
|
13b |
N/A
|
Not available |
1 |
(models u6439-900 and u6454-900) (idler pulley and bearing assembly) |
|
14 |
N/A
|
Not available |
1 |
(torsion spring) |
|
15a |
N/A
|
Not available |
1 |
(retainer control table) |
|
15b |
215-0148
|
Screw |
1 |
|
|
16 |
215-4084
|
Transmission (OBSOLETE) |
1 |
|
|
18 |
N/A
|
Not available |
1 |
(agitator/brush roll housing) |
|
19 |
N/A
|
Not available |
1 |
(hose clamp) |
|
20 |
N/A
|
Not available |
2 |
(screw-self tapping) |
|
21a |
215-0134
|
Litter picker (OBSOLETE) |
2 |
|
|
22 |
N/A
|
Not available |
1 |
(bottom plate/nozzle guard) |
|
23 |
N/A
|
Not available |
1 |
(agitator/brush roll) |
|
24 |
N/A
|
Not available |
1 |
(screw-self tapping) |
|
25 |
N/A
|
Not available |
1 |
(duct cover-nozzle) |
|
26 |
215-0148
|
Screw |
2 |
|
|
27 |
215-0121
|
Self tapping screw |
4 |
|
|
28 |
215-0845
|
Screw (OBSOLETE) |
4 |
|
|
29 |
215-2060
|
Screw |
1 |
|
|
30 |
N/A
|
Not available |
1 |
(washer) |
|
31 |
215-0132
|
Agitator pulley seal |
2 |
|
|
33 |
N/A
|
Not available |
1 |
(drive pulley) |
|
34 |
N/A
|
Not available |
1 |
(actuator arm assembly) |
|
35 |
N/A
|
Not available |
1 |
(lock ring) |
|
N/S |
215-4165
|
Hood label (OBSOLETE) |
1 |
(models u6439-900 and u6454-900) |
|
N/S |
215-4165
|
Hood label (OBSOLETE) |
1 |
(models u6485-900, uh50000, and uh50005b) |
|
N/S |
215-2061
|
Control cable support |
1 |
|
|
