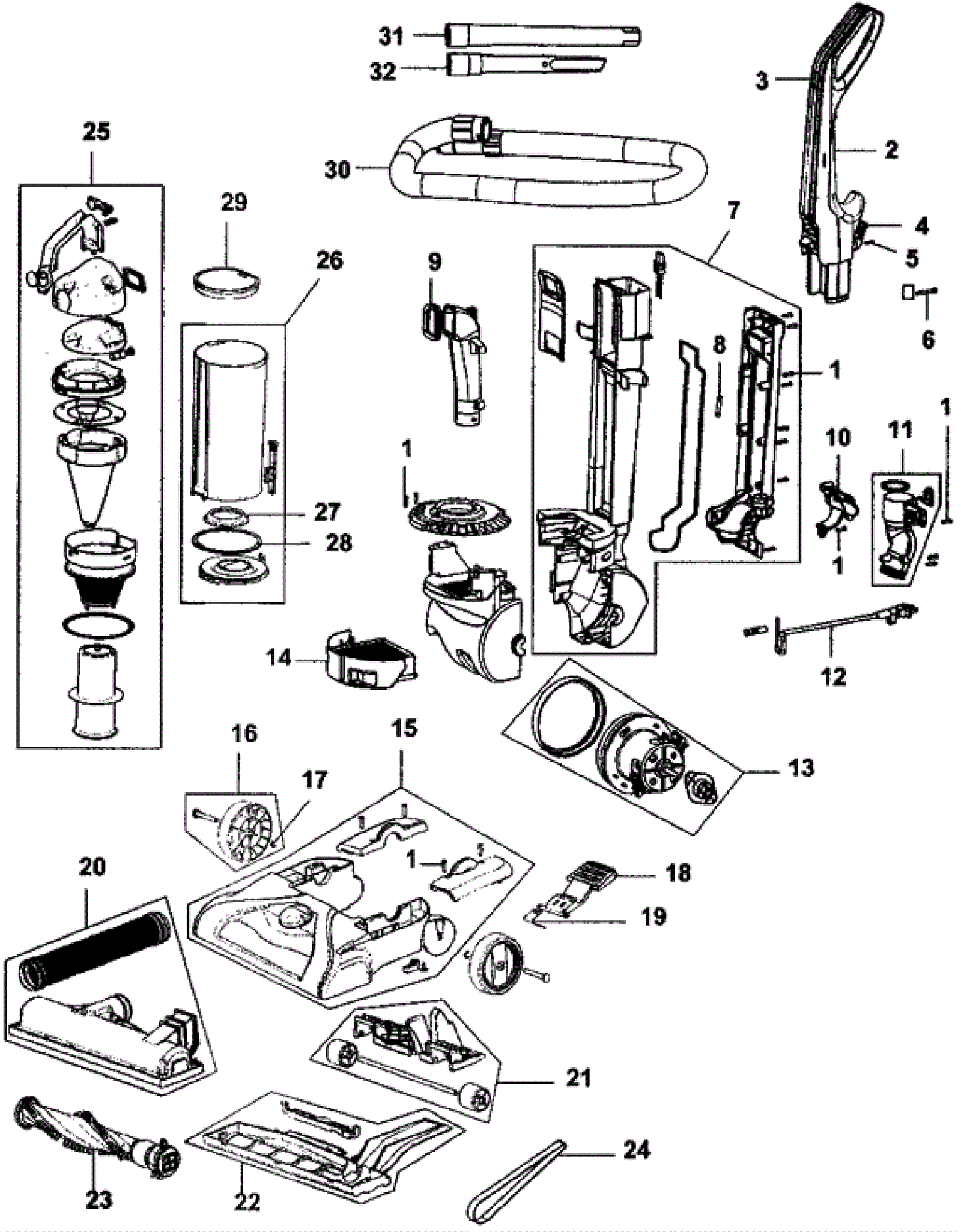

CH53010 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-9067 Screw #8 x 6mm (OBSOLETE) $0.99 14 usually ships 10-16 days
2 215-9068 Handle assembmly (OBSOLETE) Call for price 1 usually ships 10-16 days
3 215-9069 Switch $2.57 1 usually ships 10-16 days
4 215-9070 Upper cord hook (OBSOLETE) $2.29 1 usually ships 10-16 days
5 215-0121 Self tapping screw $0.99 1 usually ships 1-5 days
6 215-9071 Screw $6.56 1 usually ships 10-16 days
7 215-2008 Main back panel assembly- special order- non returnable $73.83 1 (includes 1, 8) usually ships 24-37 days
8 215-9074 18awg wire fuse assembly (OBSOLETE) Call for price 1 usually ships 10-16 days
9 215-1108 Inlet tube seal $3.72 1 usually ships 10-16 days
10 215-2006 Lower cord hook $4.76 1 usually ships 10-16 days
11 N/A Not available Call for price 1 (lower hose adapter assembly) usually ships 3-26 days
12 215-9079 35 foot power cord assembly (orange) $81.10 1 usually ships 10-16 days
13 215-9081 Motor assembly with gasket/grommet $61.05 1 usually ships 10-16 days
14 215-2009 Exhaust hepa filter $14.27 1 usually ships 10-16 days
15 215-2007 Nozzle base assembly (black)- special order- non returnable $102.89 1 usually ships 10-16 days
16 215-4354 Rear wheel assembly (OBSOLETE) $9.87 2 (includes 17) usually ships 10-16 days
17 215-9090 E-clip $0.99 2 usually ships 10-16 days
18 N/A Not available Call for price 1 (handle release pedal) usually ships 3-26 days
19 N/A Not available Call for price 1 (handle release pedal spring) usually ships 3-26 days
20 215-1105 Brush roll housing $41.18 1 usually ships 10-16 days
21 215-9155 Roller lifter $10.31 1 usually ships 24-37 days
22 215-0921 Nozzle guard assembly (OBSOLETE) $14.73 1 usually ships 24-37 days
23 215-4359 Brush roll (OBSOLETE) $24.45 1 usually ships 10-16 days
24 215-4213 Belt $7.65 1 usually ships 10-16 days
25 228-4175 Dirt cup lid assembly (black) $149.28 1 usually ships 10-16 days
26 N/A Not available Call for price 1 (included 27-28) (dirt cup seal assembly) usually ships 3-26 days
27 215-1109 Dirt cup seal (OBSOLETE) $2.20 1 usually ships 10-16 days
28 215-1110 Dirt cup bottom seal $1.56 1 usually ships 10-16 days
29 215-1107 Primary filter $9.85 1 usually ships 10-16 days
30 228-3260 Upper hose $11.52 1 usually ships 10-16 days
31 N/A Not available Call for price 1 (extension wand) usually ships 3-26 days
32 N/A Not available Call for price 1 (crevice tool) usually ships 3-26 days
