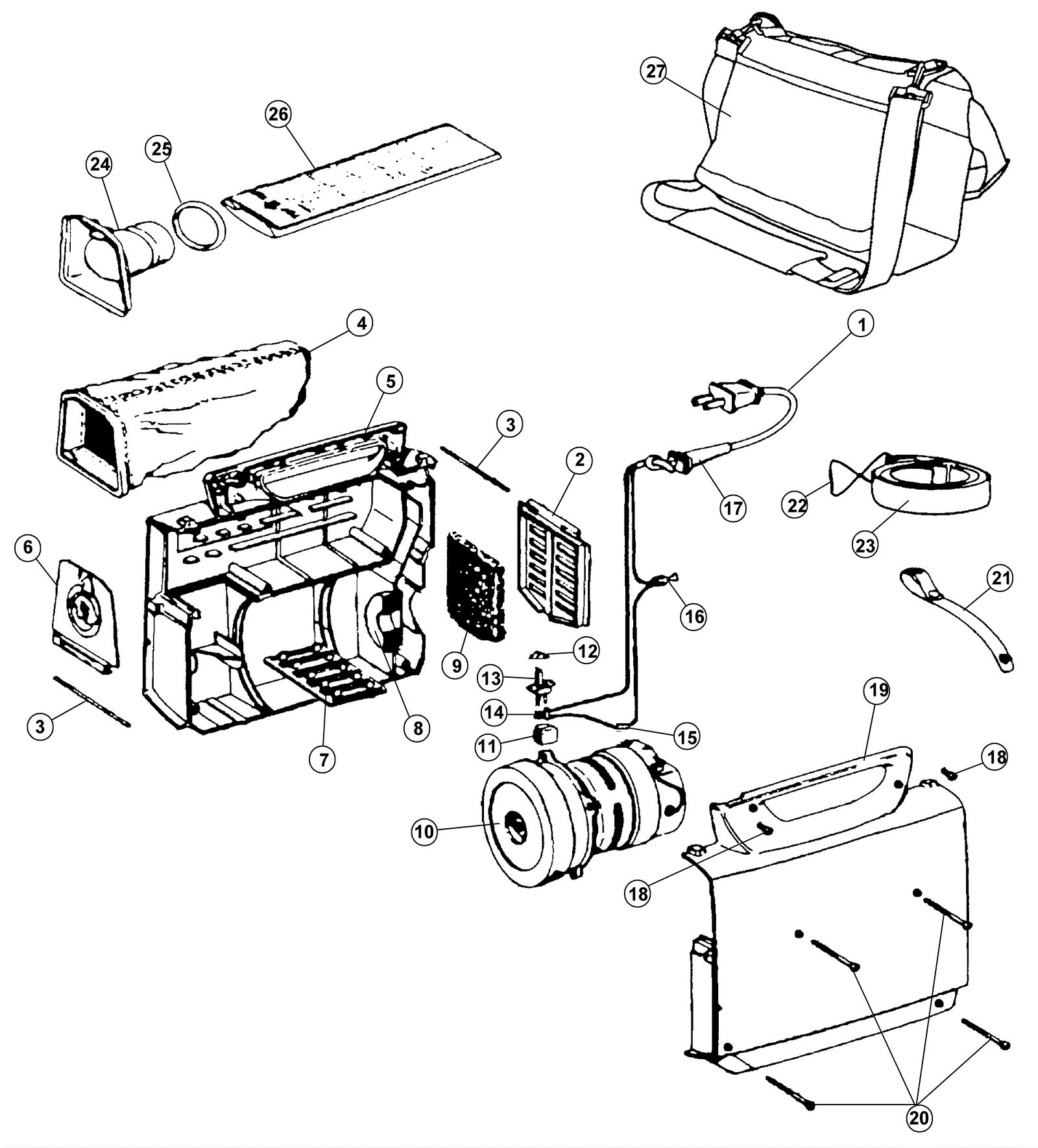

CH30000 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-0430 Attachment cord $24.72 1 usually ships 1-5 days
2 215-0431 Diffuser door $1.70 1 usually ships 1-5 days
3 215-0433 Hinge pin $0.90 2 usually ships 1-5 days
4 215-0434 Cloth bag $18.59 1 usually ships 6-16 days
5 N/A Not available Call for price 1 (right side housing) usually ships 3-26 days
6 215-0437 Bag door $12.56 1 usually ships 6-16 days
7 215-0439 Seconday filter $2.47 1 usually ships 1-5 days
8 215-2036 Pressure pad $6.55 1 usually ships 6-16 days
9 215-0441 Diffuser (OBSOLETE) $6.15 1 usually ships 6-16 days
10 215-2037 Motor assembly $80.63 1 usually ships 6-16 days
11 215-0444 Terminal shield $0.90 1 usually ships 1-5 days
12 215-0201 Switch button (OBSOLETE) $0.90 1 usually ships 6-16 days
13 215-0445 Switch (OBSOLETE) $13.50 1 usually ships 6-16 days
14 215-0204 Terminal $0.90 1 usually ships 1-5 days
15 215-2038 Motor terminal $11.97 1 usually ships 6-16 days
16 215-9132 Wire terminal (OBSOLETE) Call for price 1 usually ships 6-16 days
17 N/A Not available Call for price 1 (cord protector) usually ships 3-26 days
18 215-0447 Screw, self-tapping $1.44 2 usually ships 1-5 days
19 215-2039 Left side housing $37.12 1 usually ships 6-16 days
20 215-2040 SCREW-M4X18 X 70MM BLACK ZINC $1.44 4 usually ships 6-16 days
21 215-0451 Cord storage strap assembly $10.14 1 usually ships 1-5 days
22 215-0452 Strap hook $1.13 1 usually ships 1-5 days
23 215-0453 Carrying strap assembly (OBSOLETE) $7.72 1 usually ships 1-5 days
24 215-0454 Support tube $3.34 1 usually ships 1-5 days
25 N/A Not available Call for price 1 (belt) usually ships 3-26 days
26a 215-0456 Paper bag (5 pack) $5.00 1 usually ships 6-16 days
26b 215-4350 Vacuum adapter kit $13.16 1 usually ships 6-16 days
27 215-2041 Carrying bag $28.74 1 usually ships 6-16 days
