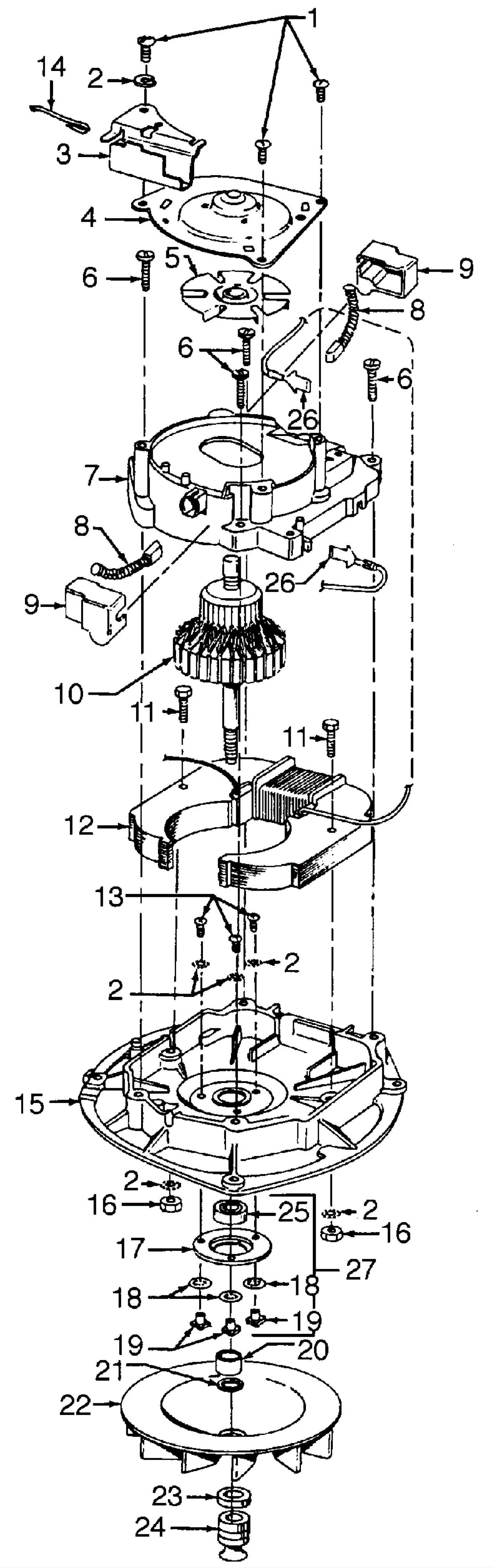

C1634 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (screw) usually ships 3-26 days
2 N/A Not available Call for price 6 (lock washer) usually ships 3-26 days
3 215-0288 Indicator guide $1.64 1 usually ships 1-5 days
4 215-0289 Upper bearing $5.14 1 usually ships 1-5 days
5 215-0332 Vent fan $1.64 1 usually ships 1-5 days
6 N/A Not available Call for price 3 (screw) usually ships 3-26 days
7 215-0333 Upper motor casing $8.18 1 usually ships 1-5 days
8 215-0293 Carbon brush $2.33 2 usually ships 1-5 days
9 215-0294 Brush insulator $1.89 2 usually ships 1-5 days
10 215-2034 Motor $87.00 1 usually ships 6-16 days
11 N/A Not available Call for price 2 (field bolt) usually ships 3-26 days
12 215-0297 Field coil $36.59 1 usually ships 1-5 days
13 215-0298 Screw $1.58 1 usually ships 1-5 days
14 215-0310 Indicator guide spring $0.99 1 usually ships 1-5 days
15 215-0299 Lower motor case $12.53 1 usually ships 1-5 days
16 N/A Not available Call for price 2 (hex nut) usually ships 3-26 days
17 215-0301 Retainer $0.99 1 usually ships 1-5 days
18 N/A Not available Call for price 3 (lock washer) usually ships 3-26 days
19 215-2035 Nut $2.05 3 usually ships 6-16 days
20 215-0304 Spacer $0.99 1 usually ships 1-5 days
21 N/A Not available Call for price 1 (washer) usually ships 3-26 days
22 215-0306 Poly fan $6.50 1 usually ships 6-16 days
23 215-0336 Washer, heat insulating $1.58 1 usually ships 1-5 days
24 215-0337 Motor pulley $1.89 1 usually ships 1-5 days
25 215-0001 Brush bearings $15.06 1 usually ships 6-16 days
26 N/A Not available Call for price 2 (terminal) usually ships 3-26 days
27 215-0309 Bearing kit $15.65 1 (includes 18-19, 25) usually ships 1-5 days
