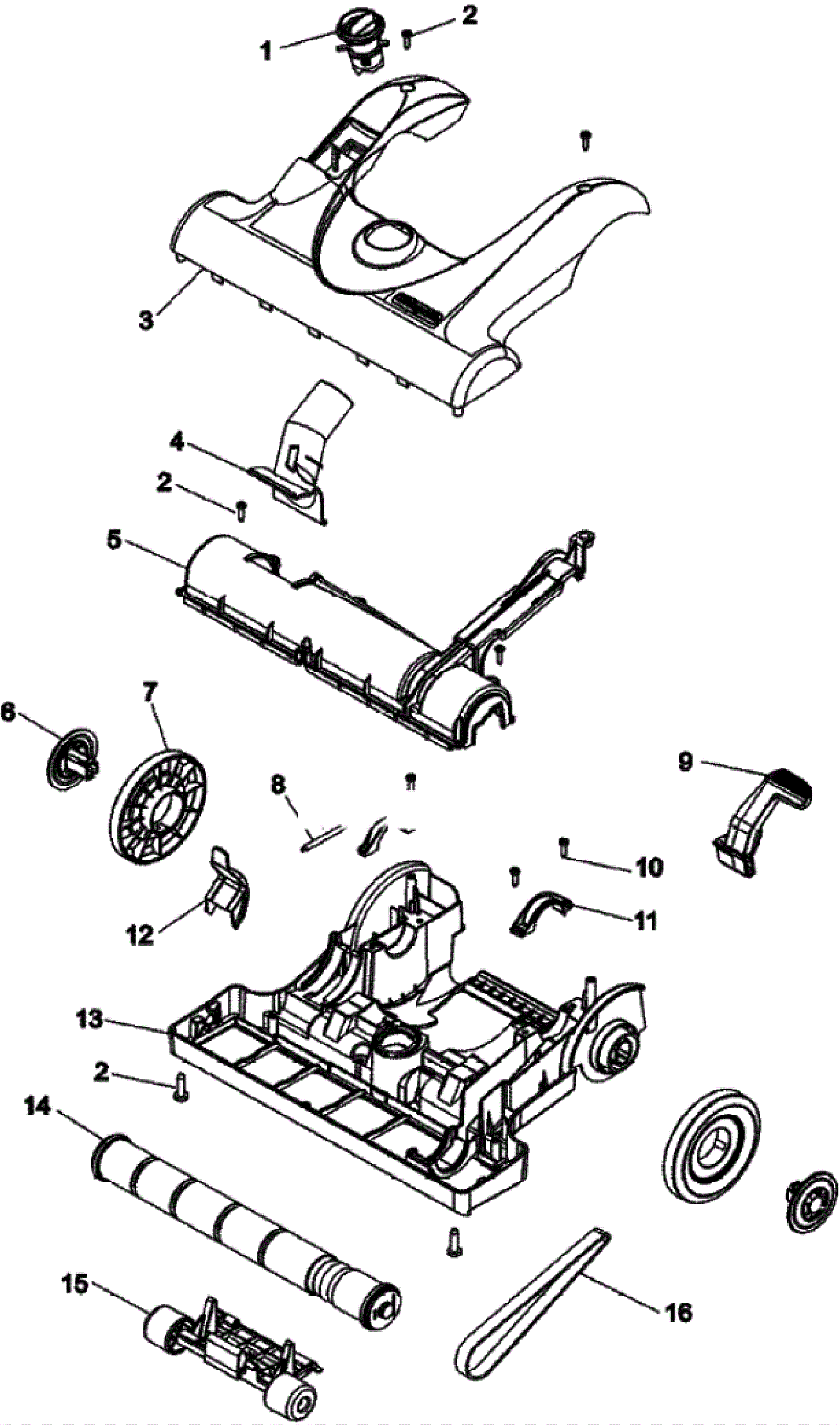

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
215-1037
|
Nozzle height adjsutment (OBSOLETE) |
1 |
|
|
2 |
215-0052
|
Screw, self tapping (OBSOLETE) |
6 |
|
|
3 |
215-1038
|
15 inch hood |
1 |
|
|
4 |
215-1039
|
Lower duct |
1 |
|
|
5 |
215-1040
|
Agitator housing (OBSOLETE) |
1 |
|
|
6 |
215-4097
|
Wheel hub (OBSOLETE) |
2 |
|
|
7 |
215-4096
|
Rear wheel |
2 |
|
|
8 |
215-1041
|
Debris door spring |
1 |
|
|
9 |
215-4098
|
Handle release lever |
1 |
|
|
10 |
215-0148
|
Screw |
4 |
|
|
11 |
215-1042
|
Trunnion cover |
2 |
|
|
12 |
215-1043
|
Debris door |
1 |
|
|
13 |
215-4099
|
Main body |
1 |
|
|
14 |
215-0033
|
Agitator brush roll, 15 inch (OBSOLETE) |
1 |
|
|
15 |
215-1044
|
Front wheel (OBSOLETE) |
1 |
|
|
16 |
215-0022
|
Drive belt |
1 |
|
|
