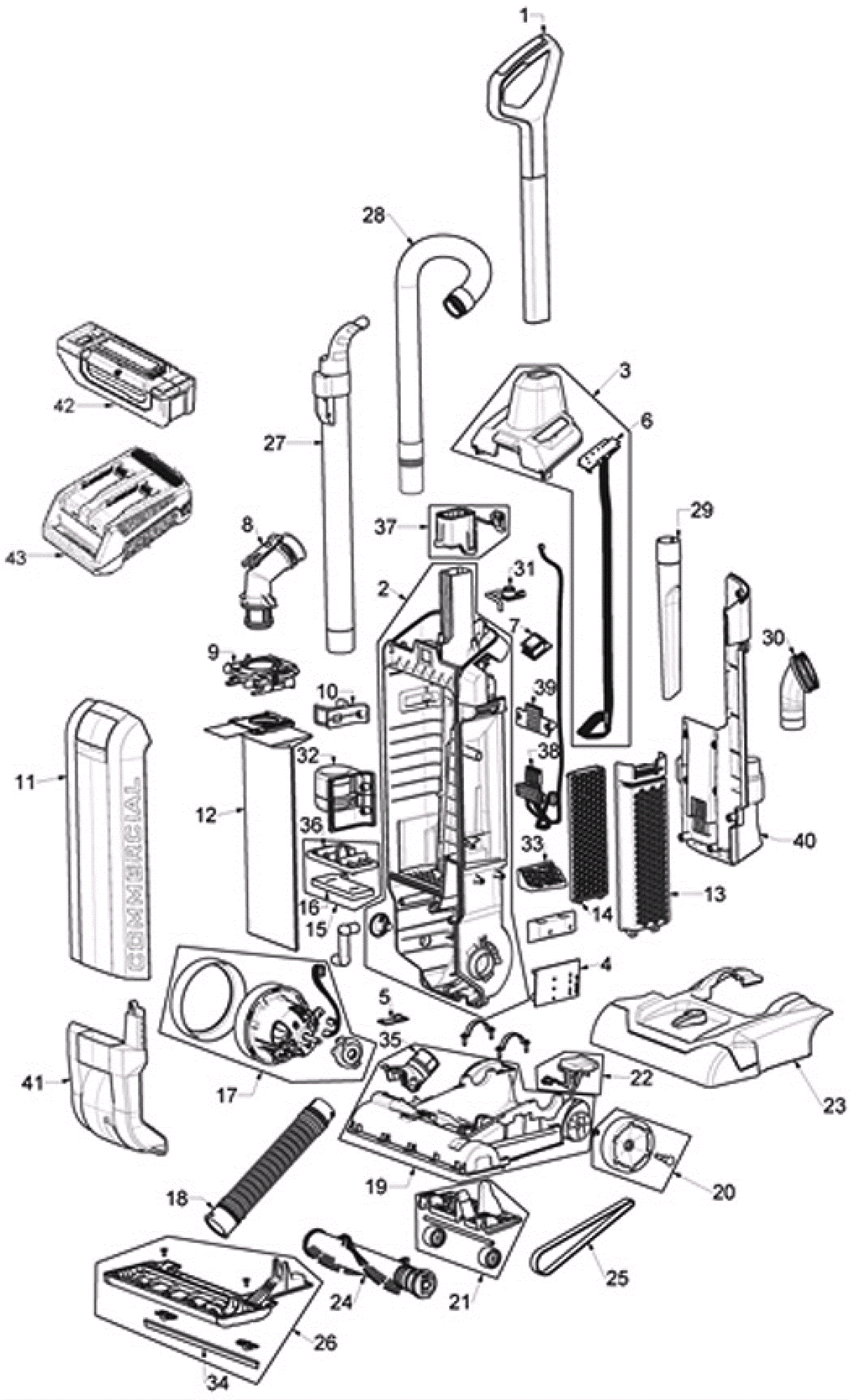

CH95413 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 215-9038 Handle $34.49 1 usually ships 10-16 days
2 215-9040 Main body assembly (OBSOLETE) $244.98 1 usually ships 10-16 days
3 215-9041 Upper housing tower assembly Call for price 1 usually ships 10-16 days
4 215-9042 Power control mainboard assembly (OBSOLETE) $73.34 1 usually ships 10-16 days
5 215-9043 Power control board hall sensor assembly Call for price 1 usually ships 10-16 days
6 215-9044 Power control board assembly $63.92 1 usually ships 10-16 days
7 215-9034 On and off switch $43.47 1 usually ships 10-16 days
8 215-9045 Hose dock assembly Call for price 1 usually ships 10-16 days
9 215-9046 Bag dock assembly Call for price 1 usually ships 10-16 days
10 215-9047 Wand clip (OBSOLETE) $21.05 1 usually ships 24-37 days
11 215-9048 Bag door assembly Call for price 1 usually ships 10-16 days
12 215-0925 Paper vacuum bags - type SB (pkg of 10) $47.03 1 usually ships 10-16 days
13 215-0966 Exhaust filter assembly $44.04 1 usually ships 10-16 days
14 215-0967 Exhaust filter assembly $9.19 1 usually ships 10-16 days
15 215-9049 Inlet filter assembly Call for price 1 usually ships 10-16 days
16 215-9050 Inlet filter (OBSOLETE) $5.46 1 usually ships 10-16 days
17 215-9051 Motor assembly (OBSOLETE) Call for price 1 usually ships 10-16 days
18 215-0971 Lower hose assembly (OBSOLETE) $13.50 1 usually ships 10-16 days
19 215-0972 Nozzle base assembly with wheels (OBSOLETE) $43.26 1 usually ships 10-16 days
20 215-9052 Rear wheel assembly with hardware $22.17 1 ships same day
21 215-0975 Roller lifter assembly $30.37 1 usually ships 10-16 days
22 215-0976 Handle release pedal with hardware $15.13 1 ships same day
23 215-0979 Nozzle cover with height adjustment (OBSOLETE) $58.39 1 usually ships 10-16 days
24 215-0983 Brush roll assembly $34.34 1 ships same day
25 215-4232 Belt $19.99 1 usually ships 10-16 days
26 215-4356 Bottom plate/ nozzle guard $35.05 1 ships same day
27 215-9053 Wand handle assembly (OBSOLETE) $51.03 1 usually ships 10-16 days
28 215-4339 Upper hose assembly $42.54 1 usually ships 10-16 days
29 215-0989 Crevice tool (OBSOLETE) $5.48 1 usually ships 10-16 days
30 215-9054 Dusting brush Call for price 1 usually ships 10-16 days
31 215-9055 Bag full indicator Call for price 1 usually ships 10-16 days
32 215-9056 Lower wand support Call for price 1 usually ships 10-16 days
33 215-9057 Filter grate Call for price 1 usually ships 10-16 days
34 215-9058 13 inch wiper $6.70 1 usually ships 10-16 days
35 215-9059 Nozzle duct Call for price 1 usually ships 10-16 days
36 215-9060 Air inlet grate Call for price 1 usually ships 10-16 days
37 215-9061 Handle release Call for price 1 usually ships 10-16 days
38 215-9062 Contact wire assembly Call for price 1 usually ships 10-16 days
39 215-9063 Dovetail bracket cap Call for price 1 usually ships 10-16 days
40 215-9064 SCM board cover Call for price 1 usually ships 10-16 days
41 215-9065 Motor cover Call for price 1 usually ships 10-16 days
42 215-4352 40V Li-ion battery $597.03 1 usually ships 16-34 days
43 215-9066 40V battery dual bay charger (OBSOLETE) $289.65 1 usually ships 10-16 days
