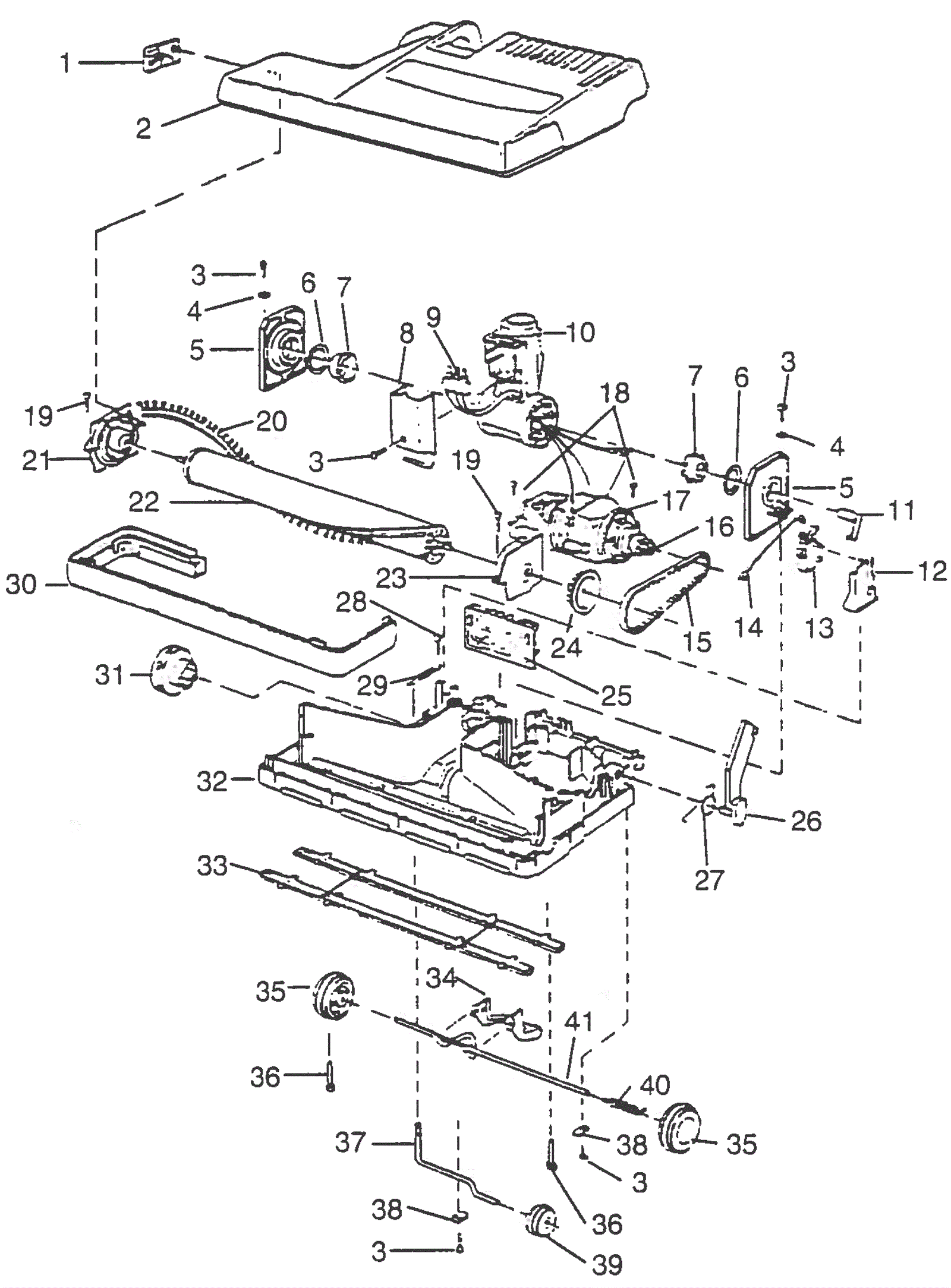

Lower Assembly

#PartDescription ReqNotesAvailability
1 173-0081 Brush strip cover with screws 1
2 173-0133 Cover 1
3 173-0007 Screw M3-.5 x 13mm 5
4 173-0090 Lock washer 1
5 173-0126 Swivel support 2
6 173-6377 Washer (OBSOLETE) 2
7 173-6378 Bearing (OBSOLETE) 2
8 173-6379 Swivel neck cover (OBSOLETE) 1
9 173-0122 Swivel neck wire 1
10 173-0121 Swivel neck assembly 1
11 173-6380 Switch lever (OBSOLETE) 1
12 173-6381 Microswitch support (OBSOLETE) 1
13 173-0128 Micro switch 1
14 173-6382 Wire on neck with switch (OBSOLETE) 1
15 991-9012 Belt 1
16 173-0092 Motor pulley 1
17a 173-0091 120V brush motor 1
17b 173-0095 Carbon brush with spring (pkg of 2) 2
18 173-6383 Screw #3 (OBSOLETE) 1
19 173-0136 Screw M3-9 x 19mm (OBSOLETE) 2
20 173-0077 14 inch brush strip 1
21a 173-0078 Right hand bearing block with bearings 1
21b 991-9172 BEARING BLOCK, VSM/VSE RH (NON-OEM)
22 173-0076 14 inch brush assy (no bearing blocks or bearings included) 1
23 193-0004 12 inch floor tool 1 1/2inch 1
24 173-0080 Brush roller pulley 1
25 173-0075 Electronic control board 1
26 173-0063 Support lever with spring 1
27 173-0064 Torsion spring 1
28 173-0135 Screw M3-.5 x 16mm 1
29 173-0073 Spring 1
30 173-0070 Bumper 1
31 173-6384 Adjustment knob (OBSOLETE) 1
32 173-0115 14 inch chassis 1
33 173-0101 14 inch metal plate set 1
34 173-0069 Foot pedal 1
35 173-0117 Wheel (includes hub cap and push nut) 2
37 173-0072 Pile adjustment axle 1
38 173-0008 Axle clamp 1
39 173-0118 Pile adjustment wheel 1
40 173-0009 Axle spring 1
41 173-0066 Axle 1
