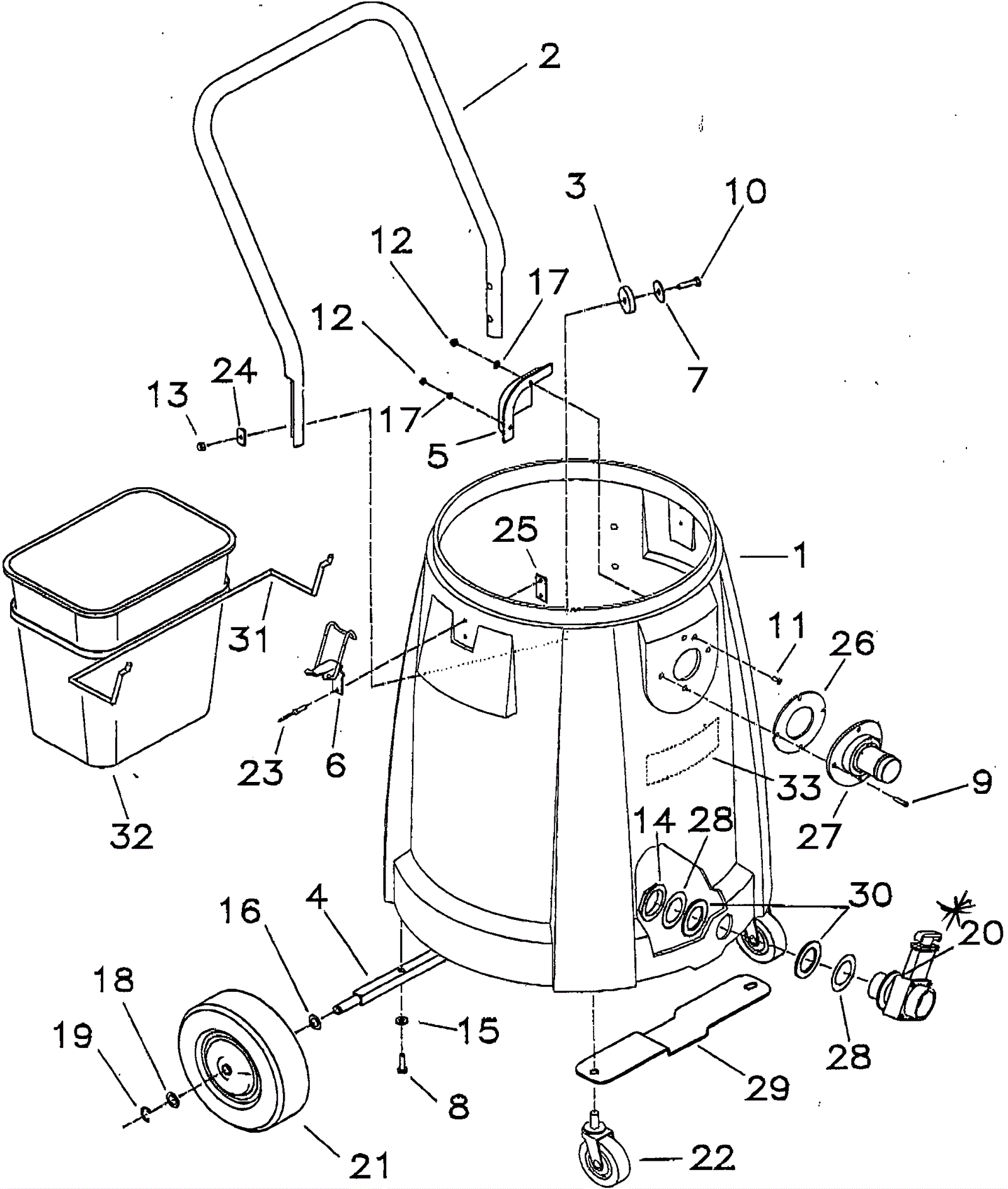

1005 Tank Assembly - External

#PartDescriptionPriceReqNotesAvailability
1 174-8507 15 gallon tank $371.19 1 usually ships 1-5 days
2 174-8545 Handle assembly $36.87 1 usually ships 1-5 days
3 174-1167 Washer 9/32 x 19/32 flat stainless steel $0.70 4 ships same day
4 174-2252 Plated axle $68.33 1 usually ships 1-5 days
5 174-2253 Intake deflector $17.28 1 usually ships 1-5 days
6 174-2267 Latch $14.21 2 usually ships 4-14 days
7 174-2269 Gasket $1.74 4 usually ships 1-5 days
8 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 2 ships same day
9 174-3187 Screw 10-24 x 1 stainless steel $0.97 4 ships same day
10 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 4 ships same day
11 174-8548 Screw 10-24 x 3/4 nickel plated $0.97 1 usually ships 1-5 days
12 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
13 999-0429 Nut 1/4-20 acorn nickel plated $0.99 4 ships same day
14 175-2907 Nut 1 1/2 flanged hex $6.60 1 usually ships 5-16 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
17 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
18 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
19 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
20 174-0057 Gate valve $56.32 1 usually ships 4-14 days
21 174-8510 8 inch wheel $29.89 2 ships same day
22 174-2259 3 inch caster wheel (gray) $18.23 2 usually ships 4-14 days
23 174-1356 Pop rivet $0.97 4 usually ships 1-5 days
24 174-8549 Weldnut 1/4-20 plated $1.20 4 usually ships 1-5 days
25 174-2261 Back clamp plate $3.78 2 usually ships 1-5 days
26 174-2262 Diecut poron intake gasket $1.10 1 usually ships 4-14 days
27 174-8537 Intake assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
28 174-0051 Washer stainless steel $0.95 4 ships same day
29 N/A Not available Call for price 1 Backing plate usually ships 3-26 days
30 175-1304 Drain valve gasket $6.27 2 usually ships 5-16 days
31 174-8538 Mounting bracket weldment $95.52 1 usually ships 1-5 days
32 174-8539 Plastic tool holder basket $25.20 1 usually ships 1-5 days
33 174-8540 Decal Call for price 1 usually ships 1-5 days
