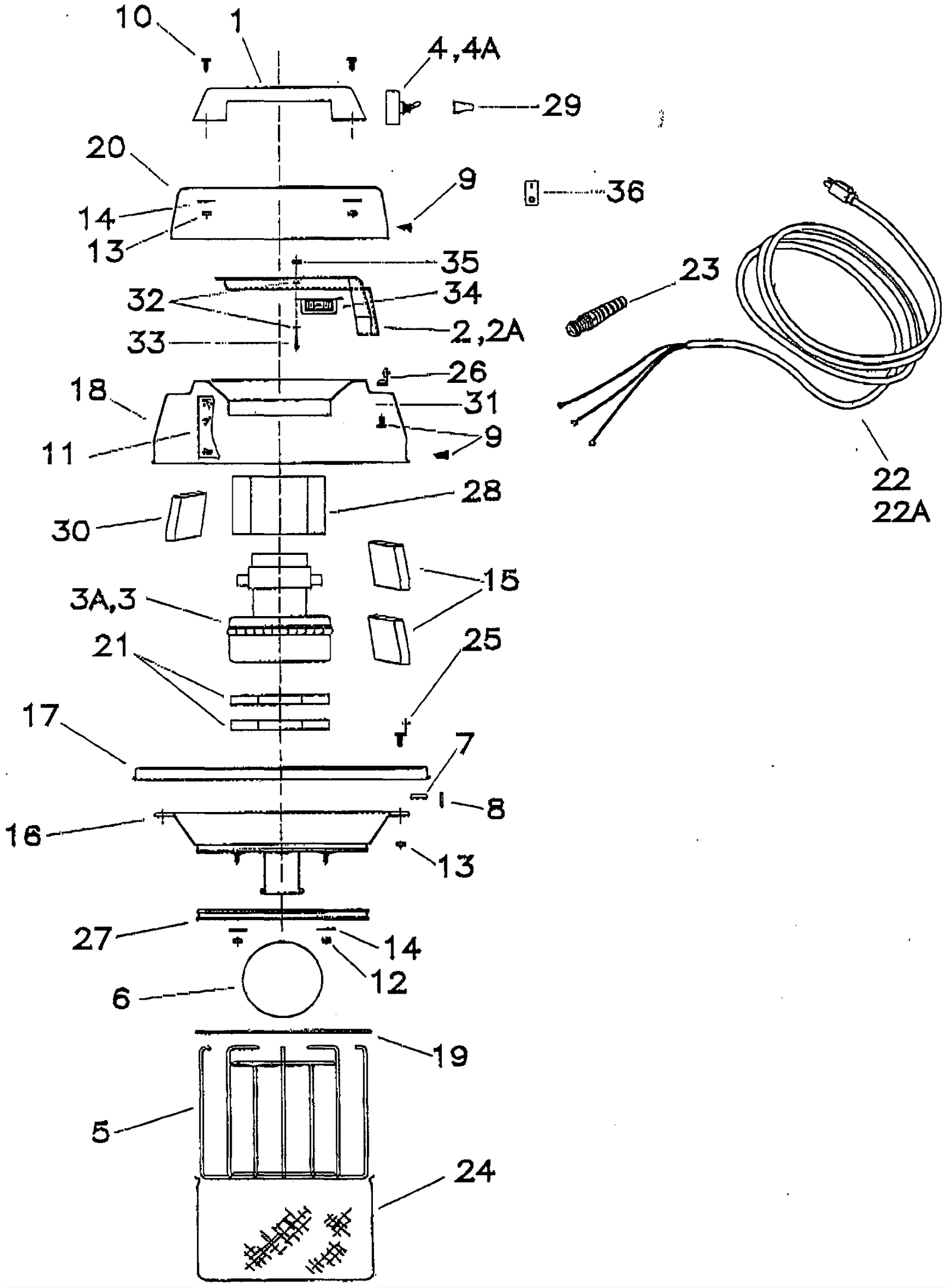

1005 Tank Assembly - Internal

#PartDescriptionPriceReqNotesAvailability
1 174-2278 Handle $9.31 1 usually ships 4-14 days
2 174-8527 Cooling duct $6.15 1 usually ships 1-5 days
2A 174-8528 Cooling duct (CE) Call for price 1 usually ships 1-5 days
3 174-8513 120V 2 stage vacuum motor $126.72 1 usually ships 1-5 days
3A 174-8529 240V vacuum motor $116.19 1 usually ships 1-5 days
4 174-5198 Toggle switch 1.5 HP $28.36 1 usually ships 4-14 days
4A 174-8530 Switch Call for price 1 usually ships 1-5 days
5 174-1931 Cage float assembly $67.20 1 usually ships 4-14 days
6 174-1930 Hollow rubber ball $58.36 1 usually ships 1-5 days
7 174-2915 Gasket 1/4 x 7/8 x 1/2 $28.94 1 usually ships 4-14 days
8 174-2914 Rubber locating ring $18.10 1 usually ships 4-14 days
9 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 12 ships same day
10 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 2 usually ships 1-5 days
11 174-8470 Diffuser $120.90 1 usually ships 1-5 days
12 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
13 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
14 174-0536 Washer 1/4 $0.97 6 usually ships 4-14 days
15 174-0840 Optional diffuser $38.32 2 usually ships 1-5 days
16 N/A Not available Call for price 1 Water shutoff adapter usually ships 3-26 days
17 174-8531 Lid assembly Call for price 1 usually ships 1-5 days
18 174-8532 Motor holdown Call for price 1 usually ships 1-5 days
19 174-2895 Bag spring retainer $11.31 1 usually ships 4-14 days
20 174-8533 Motor cooling cover Call for price 1 usually ships 1-5 days
21 174-1435 Gasket 2 1/2 x 5/8 neoprene $7.99 2 ships same day
22 174-8466 16/3 power cord 50 foot $80.82 1 usually ships 1-5 days
22A 174-5125 Powercord $85.78 1 usually ships 4-14 days
23 175-0001 Strain relief $12.32 1 ships same day
24 174-8465 Filter bag $29.52 1 usually ships 4-14 days
25 174-8473 Mounting bracket Call for price 6 usually ships 1-5 days
26 174-8534 Mounting bracket lid $0.90 3 usually ships 1-5 days
27 174-8492 Bag retaining ring $52.16 1 usually ships 4-14 days
28 174-0171 Foam ring $2.57 1 usually ships 4-14 days
29 174-0851 Switch cover $11.95 1 usually ships 1-5 days
30 174-8535 Fiberglass insulation Call for price 1 usually ships 1-5 days
31 174-5227 Washer 1/4 steel plated $0.97 3 usually ships 4-14 days
32 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
33 174-2592 Screw 8 x 32 x 5/8 $0.97 2 usually ships 1-5 days
34 174-8546 EMI filter $25.13 1 usually ships 1-5 days
35 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
36 174-8536 On/off decal Call for price 1 usually ships 1-5 days
37 272-0563 Carbon brush $23.61 2 usually ships 1-5 days
