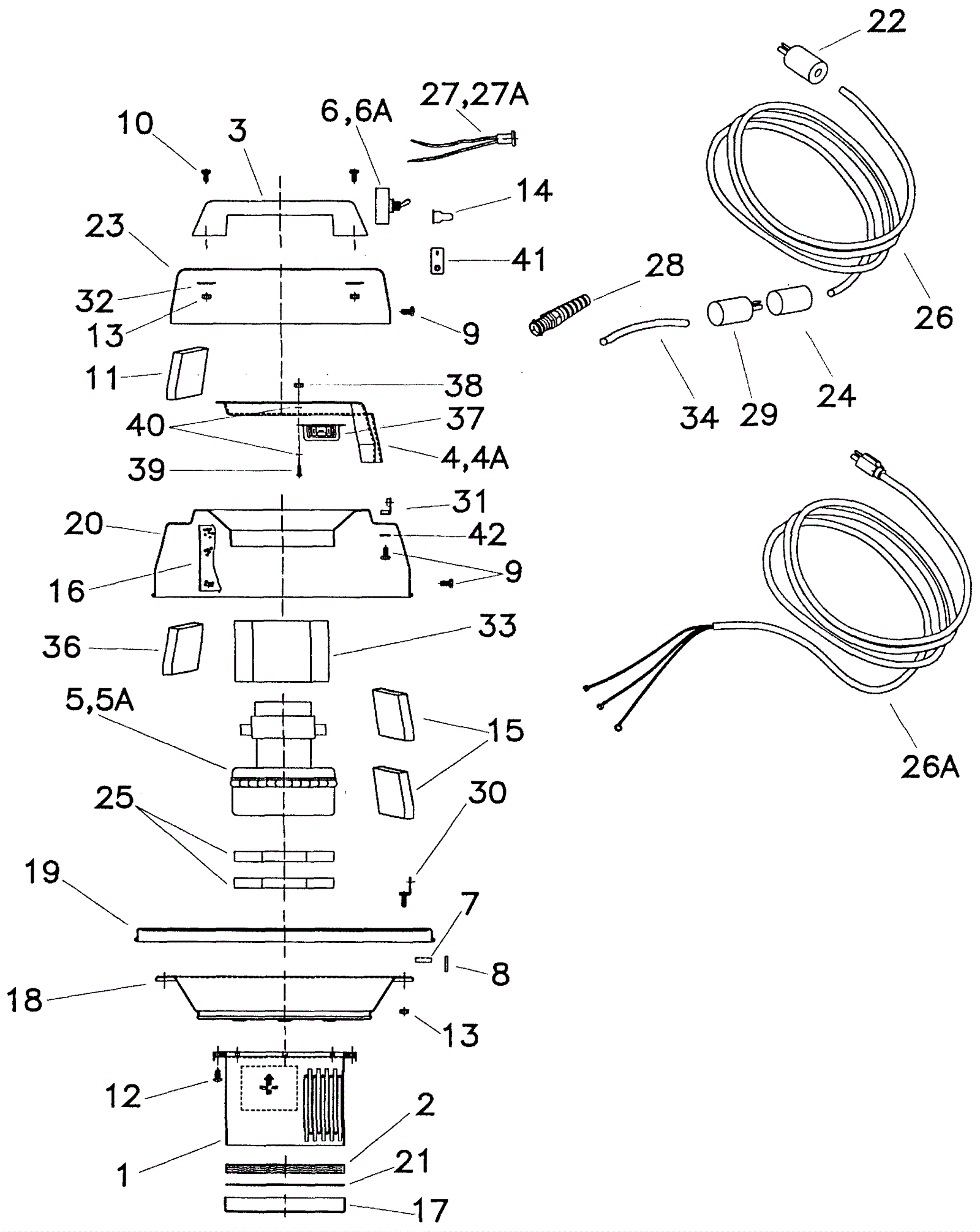

2012 Tank Assembly - Internal

#PartDescriptionPriceReqNotesAvailability
1 174-1441 Filter copolm $343.77 1 usually ships 4-14 days
2 174-8613 Impact filter $14.72 1 usually ships 1-5 days
3 174-2278 Handle $9.31 1 usually ships 4-14 days
4 174-8527 Cooling duct $6.15 1 usually ships 1-5 days
4A 174-8528 Cooling duct (CE) Call for price 1 usually ships 1-5 days
5 174-8513 120V 2 stage vacuum motor $126.72 1 usually ships 1-5 days
5A 174-8529 240V vacuum motor $116.19 1 usually ships 1-5 days
6 174-5198 Toggle switch 1.5 HP $28.36 1 usually ships 4-14 days
6A 174-8530 Switch Call for price 1 usually ships 1-5 days
7 174-2915 Gasket 1/4 x 7/8 x 1/2 $28.94 1 usually ships 4-14 days
8 174-2914 Rubber locating ring $18.10 1 usually ships 4-14 days
9 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 12 ships same day
10 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 2 usually ships 1-5 days
11 174-8631 Felt dome $5.36 1 usually ships 1-5 days
12 174-2286 Screw 10 x 1/2 $0.97 8 usually ships 1-5 days
13 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
14 174-0851 Switch cover $11.95 1 usually ships 1-5 days
15 174-0840 Optional diffuser $38.32 2 usually ships 1-5 days
16 174-8470 Diffuser $120.90 1 usually ships 1-5 days
17 174-8614 Retainer weldment $37.03 1 usually ships 1-5 days
18 174-2917 Water shut off adapter $378.98 1 usually ships 1-5 days
19 174-8531 Lid assembly Call for price 1 usually ships 1-5 days
20 174-8532 Motor holdown Call for price 1 usually ships 1-5 days
21 174-8615 Retainer screen $31.35 1 usually ships 4-14 days
22 991-2108 125V 15amp male replacement plug $5.59 1 ships same day
23 174-8533 Motor cooling cover Call for price 1 usually ships 1-5 days
24 992-1017 Female replacement twist lock plug $12.10 1 usually ships 5-16 days
25 174-1435 Gasket 2 1/2 x 5/8 neoprene $7.99 2 ships same day
26 174-8629 16/3 power cord (yellow) $40.04 1 usually ships 1-5 days
26A 174-5125 Powercord $85.78 1 usually ships 4-14 days
27 174-5128 115V indicator light $12.28 1 usually ships 4-14 days
27A 174-5081 Indicator light 240V $15.38 1 usually ships 1-5 days
28 174-2293 Strain relief with nut $10.62 1 usually ships 4-14 days
29 992-1016 Male replacement twist lock plug $16.10 1 usually ships 5-16 days
30 174-8473 Mounting bracket Call for price 6 usually ships 1-5 days
31 174-8534 Mounting bracket lid $0.90 3 usually ships 1-5 days
32 174-0536 Washer 1/4 $0.97 2 usually ships 4-14 days
33 174-0171 Foam ring $2.57 1 usually ships 4-14 days
34 174-8630 16 gauge pigtail cord $27.40 1 usually ships 1-5 days
35 174-3002 Carbon brush (sold individually) $10.47 1 usually ships 4-14 days
36 174-8535 Fiberglass insulation Call for price 1 usually ships 1-5 days
37 174-8546 EMI filter $25.13 1 usually ships 1-5 days
38 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
39 174-2592 Screw 8 x 32 x 5/8 $0.97 2 usually ships 1-5 days
40 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
41 174-8536 On/off decal Call for price 1 usually ships 1-5 days
42 174-5227 Washer 1/4 steel plated $0.97 3 usually ships 4-14 days
