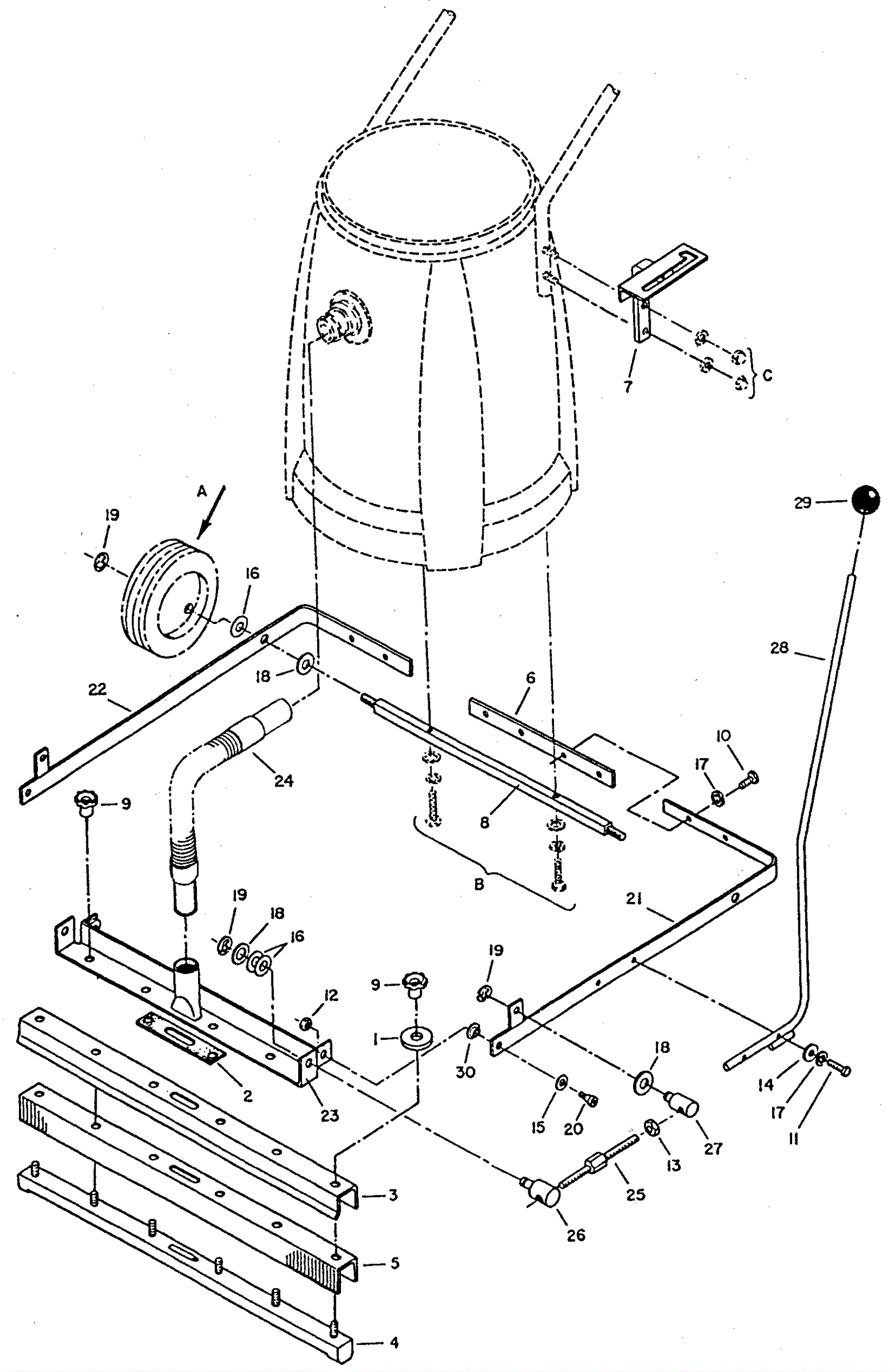

390 Pumpout Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-0786 Squeegee bumper wheel $11.24 2 ships same day
2 174-0781 Back diecut gasket $4.63 1 usually ships 12-16 days
3 174-0784 U profile $36.58 1 usually ships 12-16 days
4 174-0785 Squeegee assembly casting $178.30 1 usually ships 12-16 days
5 174-0696 Squeegee blade 27 1/4 inch gum rubber (tan) $19.95 1 usually ships 12-16 days
6 174-8541 Rear brace $46.49 1 usually ships 1-5 days
7 174-8471 Log lever assembly $51.02 1 ships same day
8 174-8542 Axle squeegee assembly $18.58 1 usually ships 1-5 days
9 174-0782 Star knob $2.71 6 usually ships 12-16 days
10 174-5718 Bolt 1/4 20 x 5/8 hex head $1.08 4 usually ships 1-5 days
11 174-6289 Bolt 1/4-20 x 7/8 hex head steel plated $1.08 2 usually ships 1-5 days
12 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
13 999-0430 Nut 5/16-18 hex jam plain finish $0.99 2 ships same day
14 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
15 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
16 174-5159 Washer 33/64 x 1/64 wave $1.10 6 usually ships 12-16 days
17 174-5159 Washer 33/64 x 1/64 wave $1.10 6 usually ships 12-16 days
18 999-0855 Washer 9/16 SAE flat $0.99 6 ships same day
19 174-0178 1/2 inch external retaining ring $1.10 6 usually ships 12-16 days
20 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $1.08 2 ships same day
21 174-8543 Left arm squeegee assembly bracket $48.09 1 usually ships 1-5 days
22 174-8544 Right arm squeegee assembly bracket $62.65 1 usually ships 1-5 days
23 174-1339 Squeegee mounting bracket assembly $83.99 1 usually ships 1-5 days
24 174-8467 Vacuum hose $19.72 1 usually ships 12-16 days
25 174-1338 Adjusting stud $20.71 2 usually ships 12-16 days
26 174-0136 Swivel pin $8.23 2 usually ships 12-16 days
27 174-3037 Adjusting nut $6.87 2 usually ships 12-16 days
28 174-8468 Handle rod $98.23 1 usually ships 1-5 days
29 174-5755 Knob $16.38 1 usually ships 1-5 days
30 174-3040 Nylon flanged bushing $4.70 2 usually ships 12-16 days
