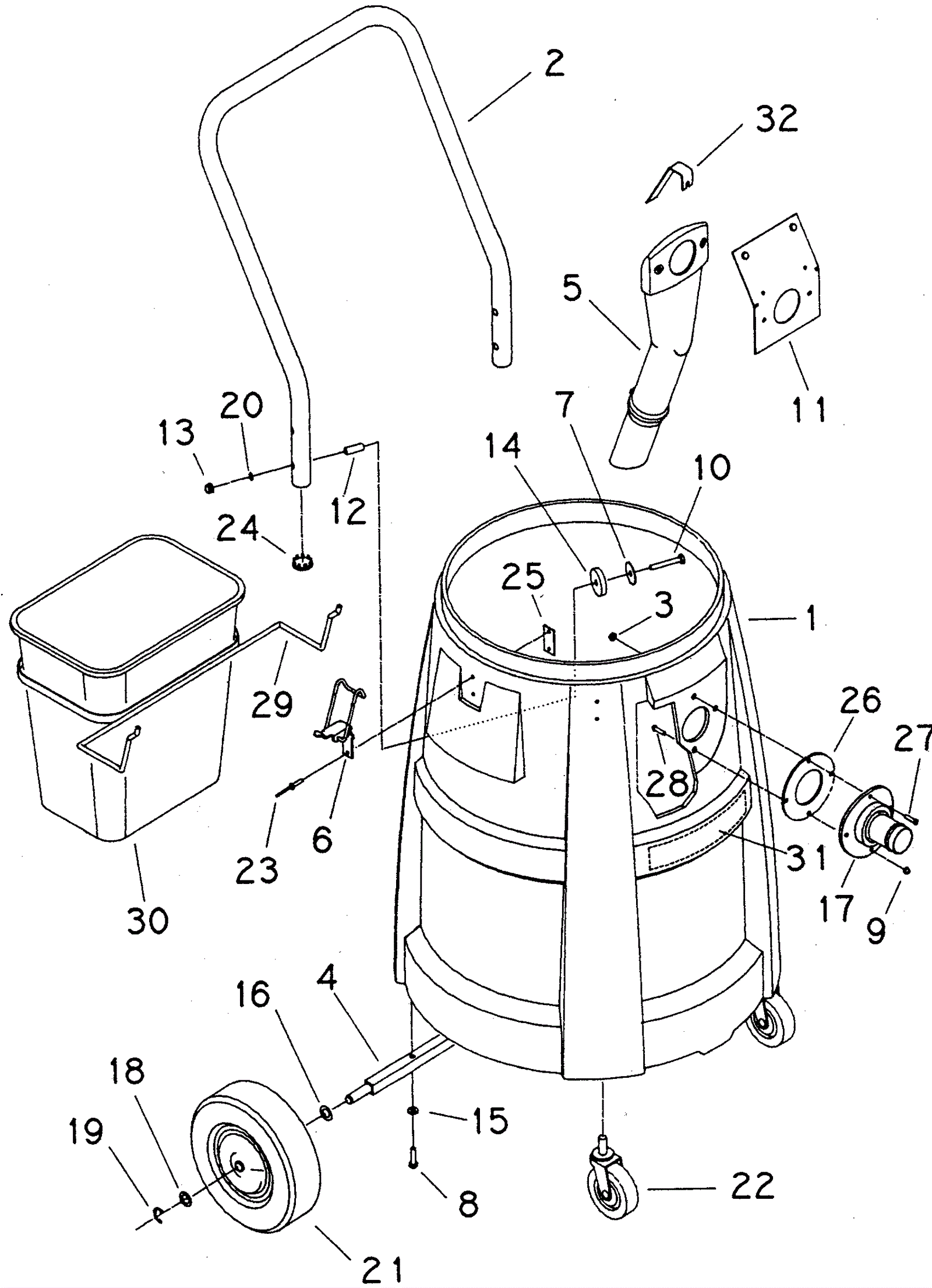

390 Pumpout Tank Assembly - External

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 Pump tank usually ships 3-26 days
2 174-8545 Handle assembly $36.87 1 usually ships 1-5 days
3 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
4 174-2252 Plated axle $68.33 1 usually ships 1-5 days
5 174-8610 Downtube assembly $39.27 1 usually ships 4-14 days
6 174-2267 Latch $14.21 6 usually ships 4-14 days
7 174-2269 Gasket $1.74 4 usually ships 1-5 days
8 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 2 ships same day
9 999-0345 Nut 10-24 acorn brass $0.99 1 ships same day
10 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 4 ships same day
11 174-8611 Flap down tube assembly $30.05 1 usually ships 4-14 days
12 174-5189 Bushing 1/4 x 3/8 x 1 $9.50 4 usually ships 1-5 days
13 999-0429 Nut 1/4-20 acorn nickel plated $0.99 4 ships same day
14 174-1167 Washer 9/32 x 19/32 flat stainless steel $0.70 4 ships same day
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
17 174-8537 Intake assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
18 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
19 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
20 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
21 174-8510 8 inch wheel $29.89 2 ships same day
22 174-2259 3 inch caster wheel (gray) $18.23 2 usually ships 4-14 days
23 174-1356 Pop rivet $0.97 24 usually ships 1-5 days
24 174-2260 Tube Closure $0.90 2 usually ships 4-14 days
25 174-2261 Back clamp plate $3.78 12 usually ships 1-5 days
26 174-2262 Diecut poron intake gasket $1.10 1 usually ships 4-14 days
27 174-5072 Screw 10-24 x 1-1/4 $0.97 3 usually ships 4-14 days
28 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
29 174-8538 Mounting bracket weldment $95.52 1 usually ships 1-5 days
30 174-8539 Plastic tool holder basket $25.20 1 usually ships 1-5 days
31 174-8540 Decal Call for price 1 usually ships 1-5 days
32 174-8612 Deflector bracket $18.86 1 usually ships 1-5 days
