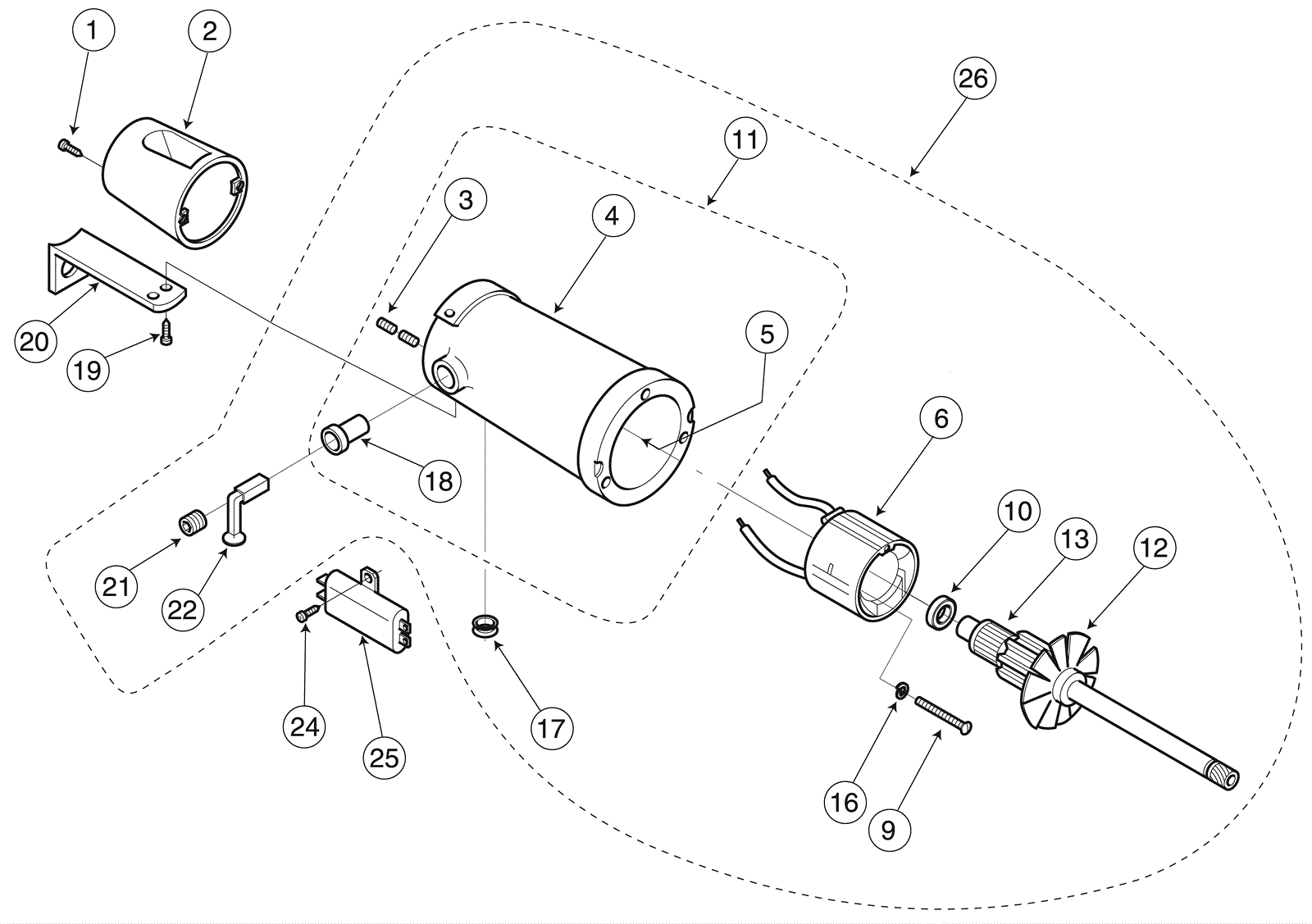

FREESTYLE T7 Motor Case Assembly

#PartDescriptionPriceReqNotesAvailability
1 212-0023 Screw 8-32 x 1/2 Call for price 2 usually ships 1-5 days
2 212-0266 Motor exhaust duct $42.80 1 usually ships 26-37 days
3 212-0267 Set screw 10-24 x 3/16 $0.99 4 usually ships 26-37 days
4 212-0272 Carbon brush holder assembly $161.52 1 (includes 5) usually ships 26-37 days
5 212-0268 Tolerance ring $14.71 1 usually ships 26-37 days
6a 212-0269 100V field $191.14 1 usually ships 26-37 days
6b 212-0270 120V field $185.11 1 usually ships 26-37 days
9 212-0274 Screw 8-32 x 3 3/8 $2.95 2 usually ships 26-37 days
10 212-0271 Bearing $14.16 1 usually ships 26-37 days
11 212-0272 Carbon brush holder assembly $161.52 1 usually ships 26-37 days
12 212-0273 Armature Fan $38.74 1 usually ships 26-37 days
13a 212-0275 100V armature $518.27 1 (includes 12) usually ships 26-37 days
13b 212-0276 120V armature $533.40 1 (includes 12) usually ships 26-37 days
16 212-0103 Lock washer Call for price 1 usually ships 1-5 days
17 212-0134 Grommet Call for price 1 usually ships 1-5 days
18 212-0277 Carbon brush holder $9.71 2 usually ships 26-37 days
19 212-0259 Screw 10-32 x 3/8 $0.99 2 usually ships 26-37 days
20 212-0278 Support bracket $10.13 1 usually ships 26-37 days
21 212-0279 Carbon brush holder cap $1.05 2 usually ships 26-37 days
22 212-0231 Carbon brush $29.22 2 usually ships 26-37 days
24 212-0281 Screw 8-32 X 1/4 $0.99 1 usually ships 26-37 days
25 212-0341 RFI filter $149.77 1 (220V unit only) usually ships 26-37 days
26a 212-0342 100V motor case assembly $1,034.15 1 usually ships 26-37 days
26b 212-0230 Vacuum motor $1,039.08 1 usually ships 26-37 days
