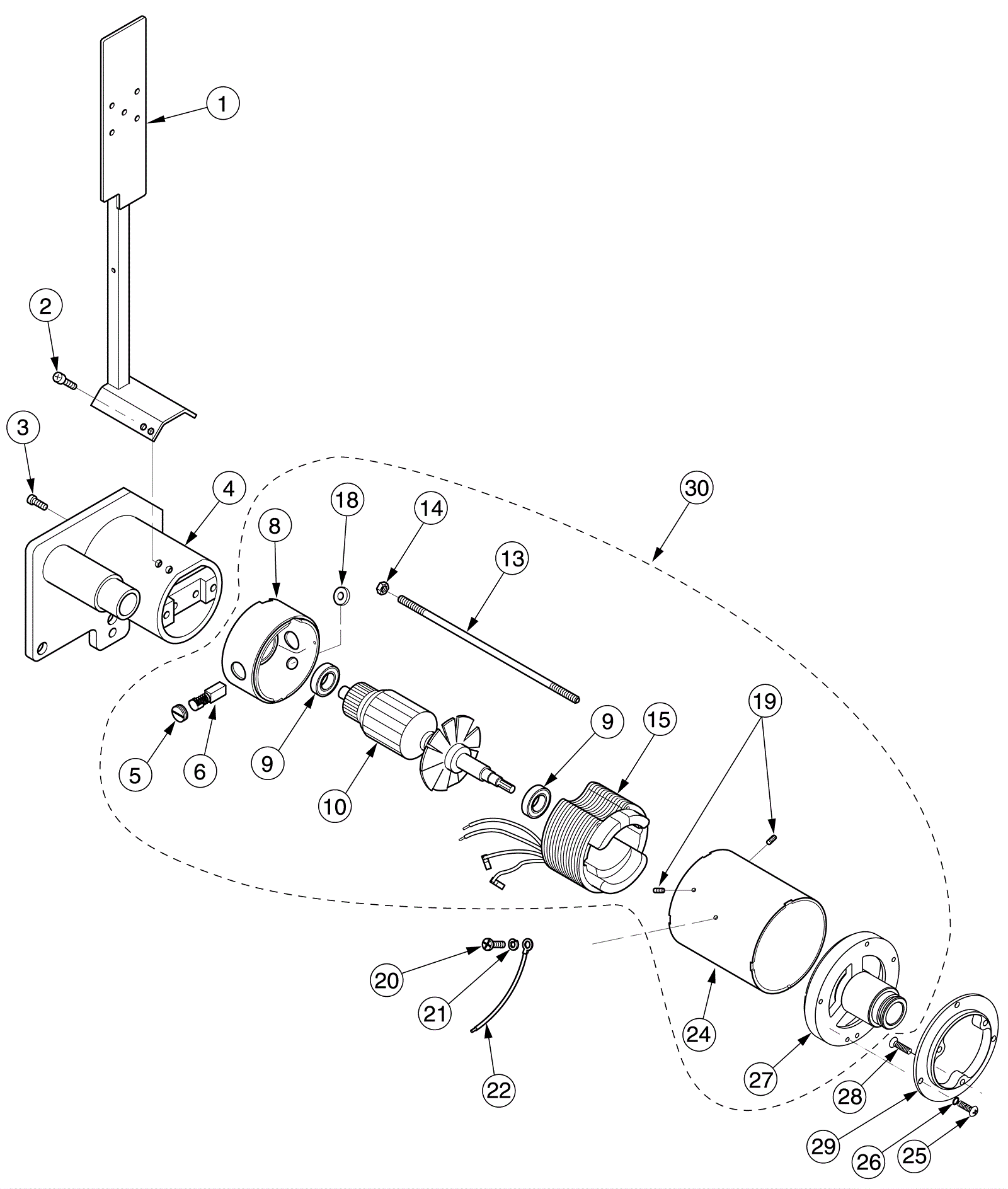

LIBERATOR Motor Case Assembly

#PartDescriptionPriceReqNotesAvailability
1 212-0123 Support plate assembly Call for price 1 usually ships 1-5 days
2 212-0052 Screw 1/4-20 x 1/2 inch Call for price 4 usually ships 1-5 days
3 212-0124 Screw 1/4-20 x 1 1/4 inch Call for price 2 usually ships 1-5 days
4 212-0125 Exhaust tube assembly $255.73 1 usually ships 1-5 days
5 212-0126 Carbon brush holder Call for price 2 usually ships 1-5 days
6 212-0127 Carbon brush (OBSOLETE) $41.04 2 usually ships 6-27 days
8 212-0128 Commutator end bell assembly Call for price 1 usually ships 1-5 days
9 212-0129 Bearing Call for price 2 usually ships 1-5 days
10 212-0130 Armature Call for price 1 usually ships 1-5 days
13 212-0131 Bolt Call for price 2 usually ships 1-5 days
14 212-0132 Nut 10-32 Call for price 2 usually ships 1-5 days
15 212-0133 120V field assembly Call for price 1 usually ships 1-5 days
18 212-0134 Grommet Call for price 1 usually ships 1-5 days
19 212-0135 Set screw Call for price 2 usually ships 1-5 days
20 212-0071 Screw 8-32 x 1/4 in Call for price 1 usually ships 1-5 days
21 212-0103 Lock washer Call for price 1 usually ships 1-5 days
22 212-0136 Groundwire assembly Call for price 1 usually ships 1-5 days
24 212-0137 Motor housing Call for price 1 usually ships 1-5 days
25 212-0138 Screw 10-32 x 1/2 inch $0.90 3 usually ships 1-5 days
26 212-0139 Lock washer Call for price 3 usually ships 1-5 days
27 212-0140 Fan end bell assembly Call for price 1 usually ships 1-5 days
28 212-0141 Screw 10-24 x 3/4 inch Call for price 3 usually ships 1-5 days
29 212-0142 Adapter ring $42.85 1 usually ships 1-5 days
30 212-0143 120V motor assembly $1,611.60 1 usually ships 1-5 days
