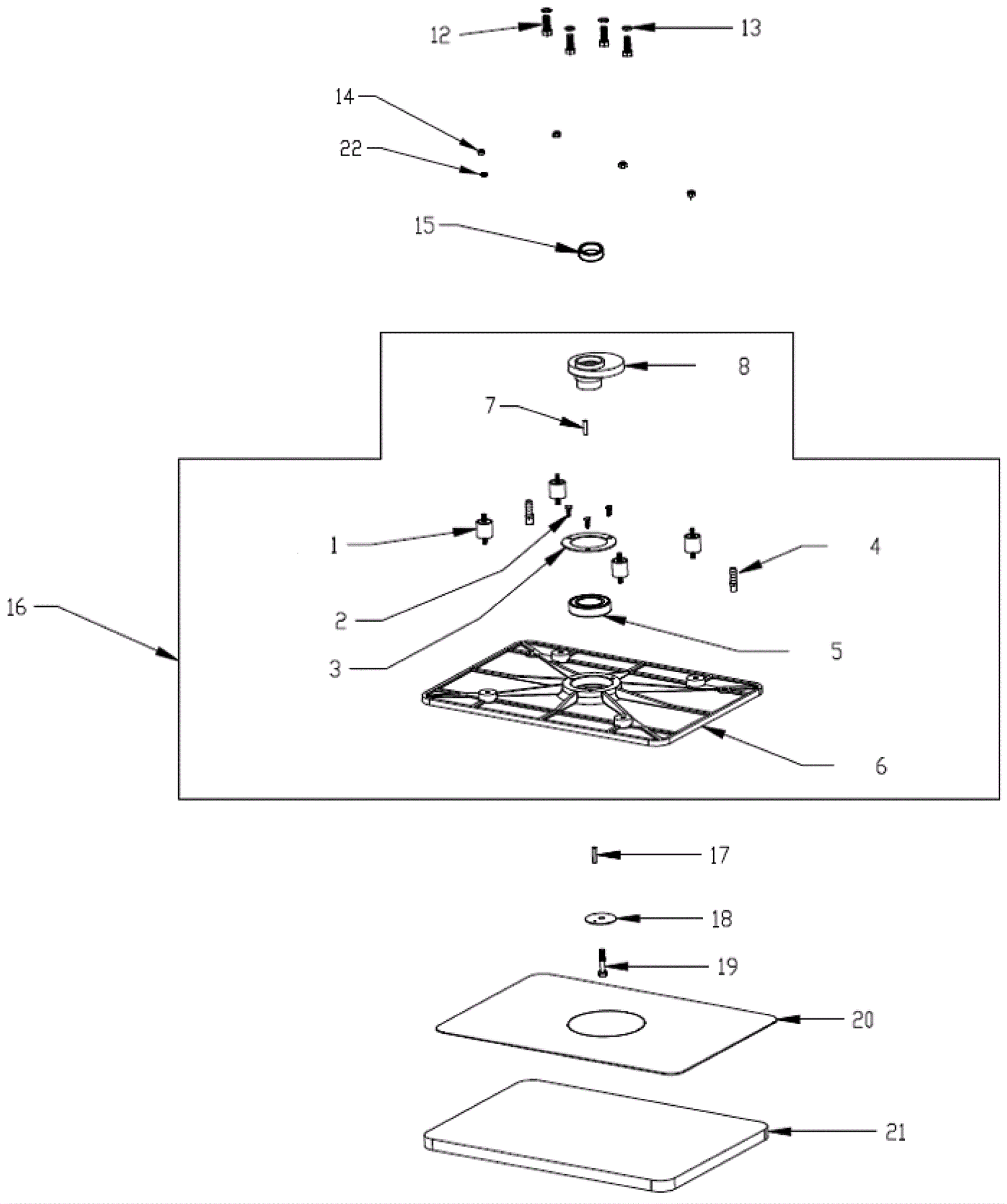

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
210-1015
|
Isolator kit (pkg of 4) |
4 |
(20 inch) |
|
1b |
210-1015
|
Isolator kit (pkg of 4) |
8 |
(28 inch) |
|
2 |
210-1048
|
Bolt |
3 |
|
|
3 |
210-5595
|
Bearing retainer |
1 |
|
|
4 |
210-5596
|
1/8 barbed hose |
2 |
|
|
5a |
210-1016
|
Bearing |
1 |
(20 inch) |
|
5b |
210-1016
|
Bearing |
2 |
(28 inch) |
|
6a |
210-1047
|
Pad driver |
1 |
(20 inch) |
|
6b |
210-5589
|
Pad driver |
1 |
(28 inch) |
|
7 |
210-5598
|
Spiral pin |
1 |
|
|
8a |
210-5599
|
Larger than 1 inch orbital weight (OBSOLETE) |
1 |
(20 inch) |
|
8b |
210-1050
|
Orbital weight |
1 |
(28 inch) |
|
12 |
210-5600
|
Screw |
4 |
|
|
13 |
210-5565
|
Washer 3/8 split lock |
4 |
|
|
14a |
210-0875
|
Security nut |
4 |
(20 inch) |
|
20 |
210-1162
|
Grip face 28x14 |
1 |
|
|
