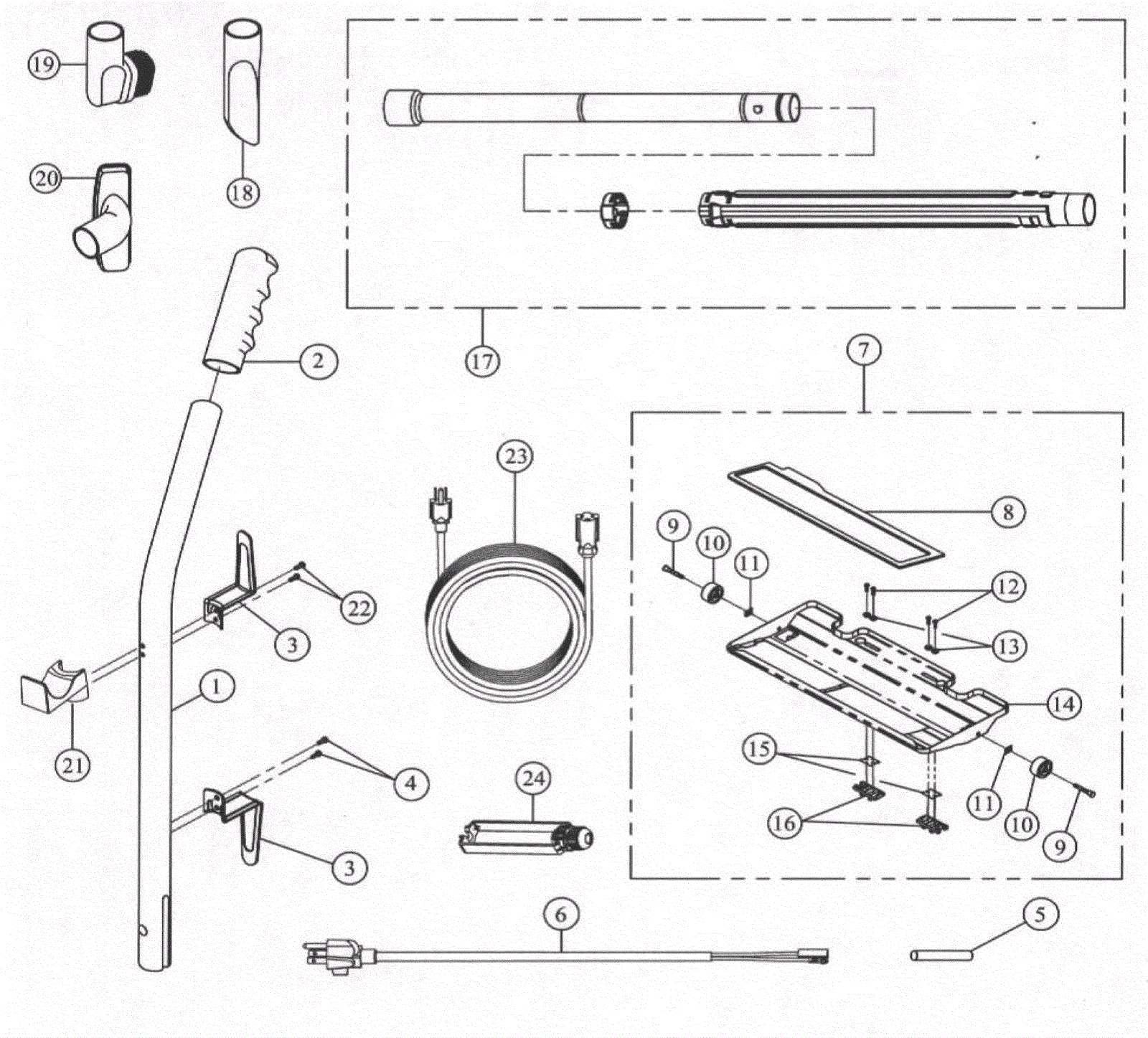

Handle and Tools Assembly

#PartDescription ReqNotesAvailability
1 210-0328 Handle tube 1
2 210-0328 Handle tube 1
3 210-1040 Metal cord hook 2
4 210-0330 Screw set 2 Screw set (M4*25)
5 210-0331 Cord protection tube 1
6 210-0052 Pigtail power cord 1
7 210-0333 Locking bottom plate assembly 1
8 210-0334 Packing grip 1
9 210-0335 Bottom plate wheel pin 2
10 210-0336 Bottom plate wheel (black) 2
11 210-0337 Push-on nut 2
12 210-0338 Screw set 4 Screw set (M3*10)
13 210-0339 Bottom plate latch washer 4
14 210-0340 Bottom plate lock 1
15 210-0341 Bottom plate latch spring 2
16 210-0342 Bottom plate latch (black) 2
17 210-0343 2 piece telescopic wand (black) 1
18 210-0344 Crevice tool (black) 1
19 210-0345 Dusting brush (black) 1
20 210-0346 Upholstery tool (black) 1
21 210-0347 Hose rack (black) 1
22 210-0348 Screw set 2 Screw set (M4*37)
23 210-1012 50 foot power cord (yellow) 1
24 210-0349 Power cord holder (black) 1
