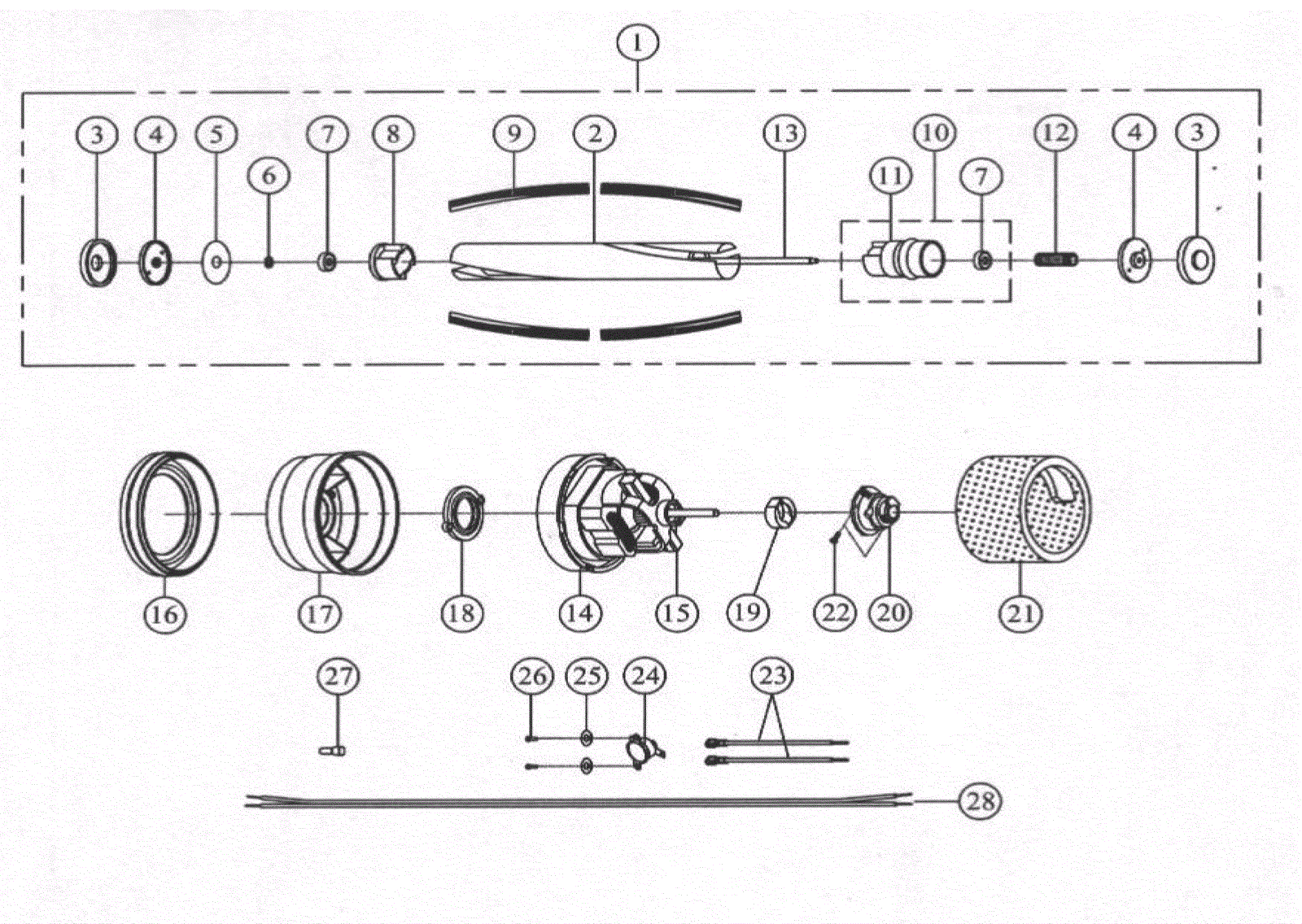

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
210-0934
|
Agitator assembly |
1 |
|
|
2 |
210-0303
|
Metal agitator core |
1 |
|
|
3 |
210-0304
|
Rubber end cover (black) |
2 |
|
|
4 |
210-0305
|
End cap |
2 |
|
|
5 |
210-0306
|
Agitator felt washer (white) |
1 |
|
|
6 |
210-0307
|
Washer |
1 |
|
|
7 |
210-0308
|
Agitator bearing (626DD) |
2 |
|
|
8 |
210-0309
|
Agitator bearing holder |
1 |
|
|
9 |
210-0310
|
Agitator brush |
4 |
|
|
10 |
210-0311
|
Agitator pulley complete |
1 |
|
|
11 |
210-0312
|
Agitator pulley |
1 |
|
|
12 |
210-0313
|
Agitator pulley bushing |
1 |
|
|
13 |
210-0314
|
Agitator shaft |
1 |
|
|
14 |
210-0315
|
Vacumm motor (119560-00) 1000W |
1 |
|
|
15 |
210-0316
|
Lamb carbon brush (for single fan) |
2 |
|
|
16 |
210-0317
|
Rear motor mount |
1 |
|
|
17 |
210-0318
|
Motor support housing (black) |
1 |
|
|
18 |
210-0319
|
Suction inlet packing (black) |
1 |
|
|
19 |
210-0320
|
Front motor mount |
1 |
|
|
20 |
210-0321
|
Motor pivot sleeve (black) |
1 |
|
|
21 |
210-0322
|
Noise suppressor |
1 |
|
|
22 |
210-0270
|
Screw M4 x 15mm set |
2 |
|
|
23 |
210-0323
|
16AWG cord (black) |
2 |
|
|
24 |
210-1039
|
Thermal switch |
1 |
|
|
25 |
210-0324
|
Washer |
2 |
Washer (4.2*14-1) |
|
26 |
210-0325
|
Screw set |
2 |
|
|
27 |
210-0326
|
Wire connector |
4 |
|
|
28 |
210-0327
|
16/2 motor cord (black) |
1 |
|
|
