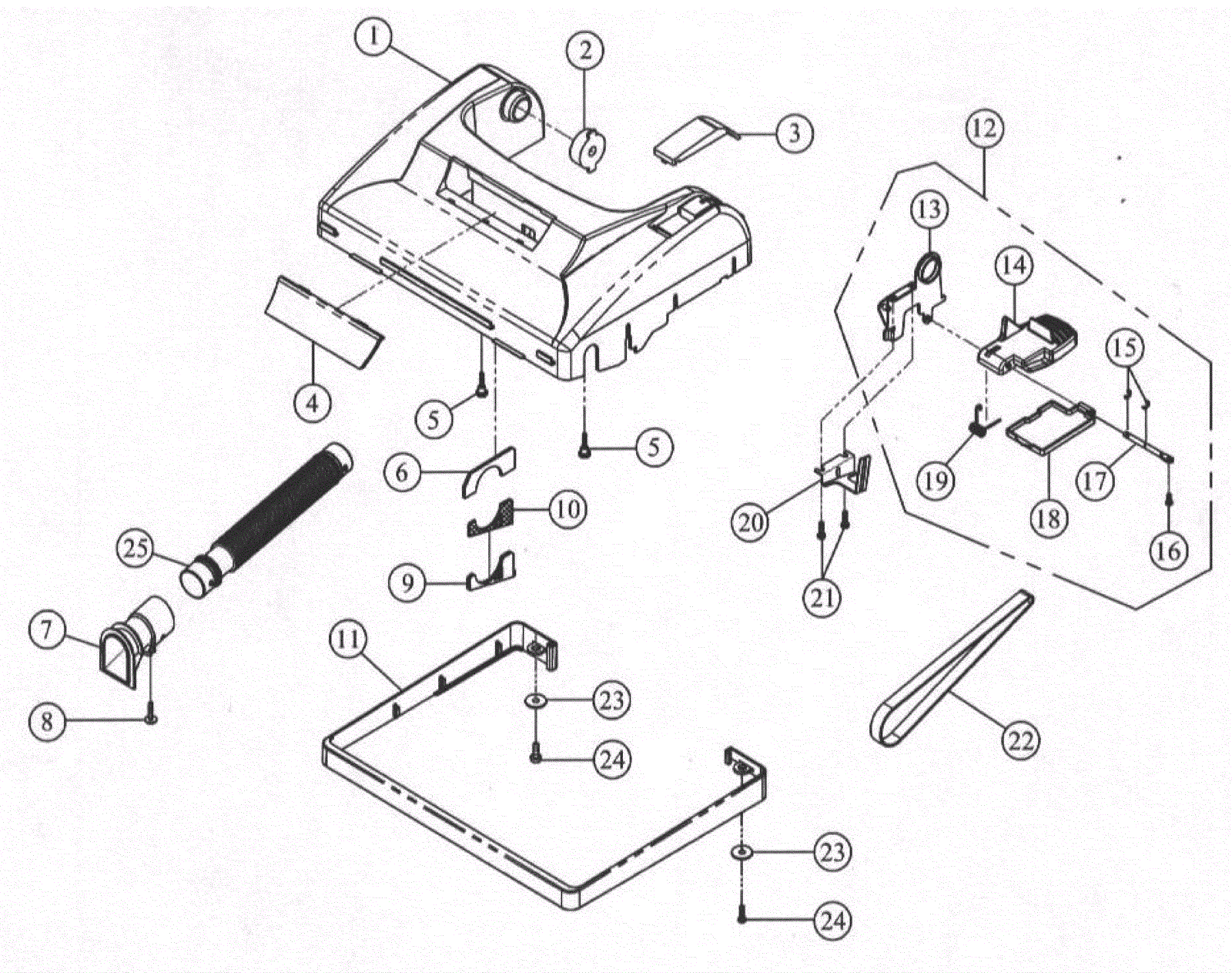

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
210-1031
|
Nozzle housing |
1 |
|
|
2 |
210-1032
|
Plastic bushing |
1 |
|
|
3 |
210-0245
|
Carpet/ Floor pedal cover (gray) |
1 |
|
|
4 |
210-0246
|
Window (gray) |
1 |
|
|
5 |
210-0247
|
Screw (M4) |
2 |
|
|
6 |
210-0248
|
Nozzle housing felt packing |
1 |
|
|
7 |
210-0249
|
Hose inlet fitting (red) |
1 |
|
|
8 |
210-0250
|
Screw set |
1 |
|
|
9 |
210-0251
|
Vented support fitting |
1 |
|
|
10 |
210-0252
|
Vented support felt |
1 |
|
|
11 |
210-0253
|
Furniture guard |
1 |
|
|
12 |
210-1033
|
Complete foot pedal |
1 |
|
|
13 |
210-0254
|
Pedal frame (B) |
1 |
|
|
14 |
210-0255
|
Foot pedal (black) |
1 |
|
|
15 |
210-0256
|
E-clip |
2 |
E-clip (ETW4) |
|
16 |
210-0257
|
Screw M4 x 12mm set |
1 |
Screw set (M4*12) |
|
17 |
210-0258
|
Foot pedal shaft |
1 |
|
|
18 |
210-0259
|
Rear belt cover |
1 |
|
|
19 |
210-0260
|
Foot pedal spring |
1 |
|
|
20 |
210-0261
|
Belt Guard |
1 |
|
|
21 |
210-0262
|
Screw Set |
2 |
Screw set (M4.2*12*1) |
|
22 |
210-1004
|
Belt (OBSOLETE) |
1 |
|
|
23 |
210-0263
|
Washer |
2 |
|
|
24 |
210-0270
|
Screw M4 x 15mm set |
2 |
|
|
25 |
210-1013
|
Hose (black) |
1 |
|
|
