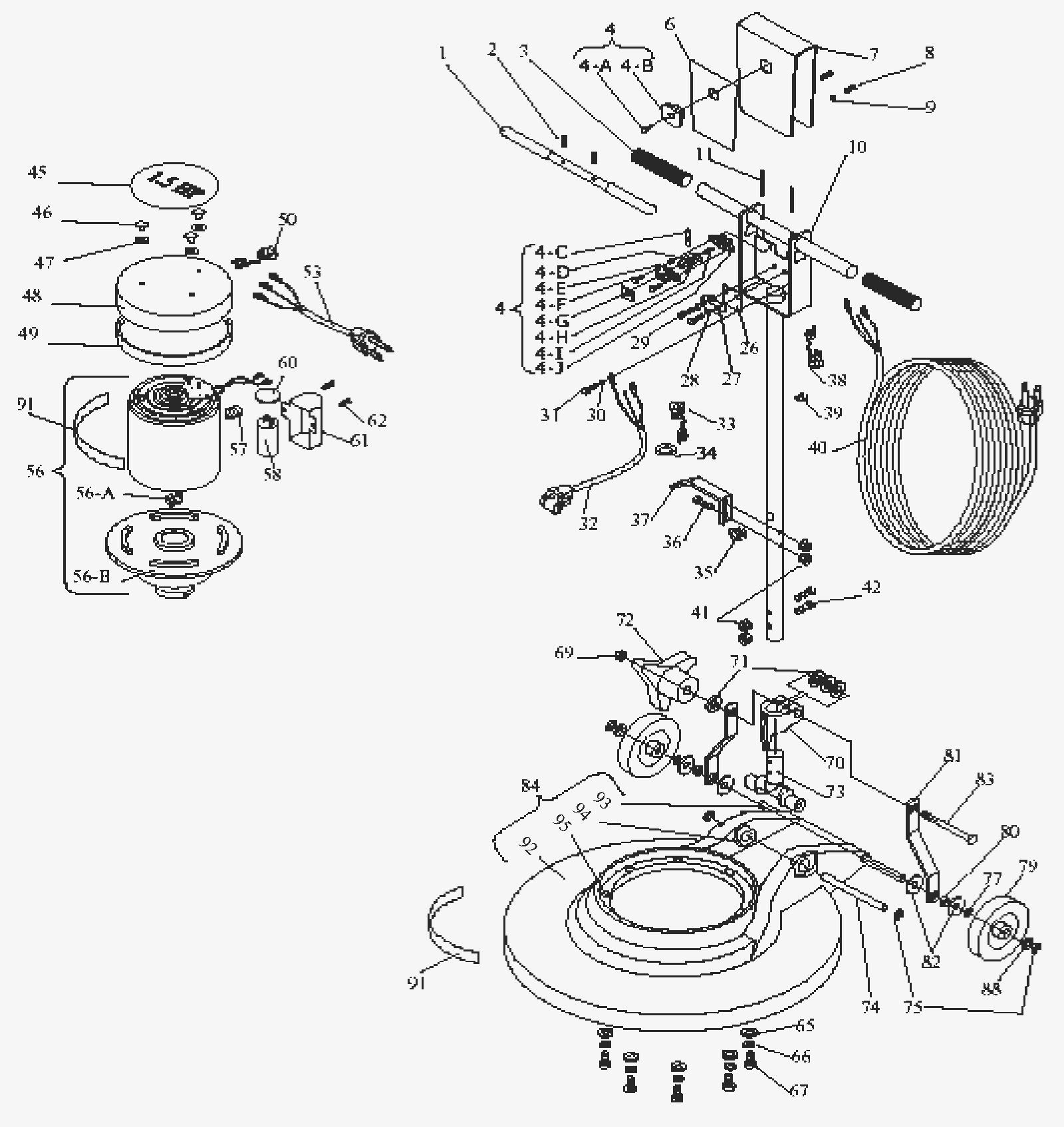

Entire Assembly

#PartDescription ReqNotesAvailability
1 210-0189 Starter lever 1
2 210-0936 Spring 2
3 210-0937 Upper handle grip 2
4 210-0938 Switch kit 1
4-A 210-0939 Screw 6 x 1/2 1
4-B 210-0940 Switch button 1
4-C 210-0941 Spring 1
4-D 210-0942 Switch 1
4-E 210-0943 Switch cover 1
4-F 210-0944 Screw 8-32 x 1/2 2
4-G 210-0945 Dust cover 1
4-H 210-0946 Tubular separator 2
4-I 210-0936 Spring 1
4-J 210-0948 Switch housing 1
6 210-0949 Switch box decal 1
7 210-0950 Switch box cover (black) 1
8 210-0951 Screw 8-32 x 1 2
9 210-0952 Washer #8 2
10 210-1099 Handle assembly 1
11 210-0953 Bolt 2
26 210-0954 Switch insulator 1
27 210-0004 Switch 1
28 210-0955 Washer #6 2
29 210-0956 Screw 6-32 x 1 2
30 210-0957 Washer #8 1
31 210-0958 Screw 6-32 x 3/8 1
32 210-0959 Motor cable and contact assembly 1
33 210-0960 Grommet 1
34 210-0961 Washer 1
35 210-0962 Rubber grommet 1
36 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
37 210-1100 Cord hook 1
38 210-1101 Grommet 1
39 210-0966 Pressure connector 1
40 210-1018 Electrical cord 1
41 210-0875 Security nut 2
42 210-0967 Screw 2
45 210-0968 1.5 HP decal 1
46 210-1102 Screw 10-32 x 1/4 3
47 210-1103 Washer 3
48 210-1104 Motor cover (gray) 1
49 210-1105 Motor cover gasket 1
50 210-0960 Grommet 1
53 210-0972 Motor cable and contact assembly 1
56 210-1106 Gear box 1
56-A 210-0973 Reduction coupling 1
56-B 210-1107 Reduction assembly 1
57 210-0975 Grommet 1
58 210-1108 Capacitor 1
60 210-0976 Capacitor insulator 1
61 210-1109 Capacitor cover (gray) 1
62 210-0978 Screw 8 x 3/8 tapping 2
65 210-0981 Screw 8 x 3/8 8
66 210-0982 Washer 5/16 pressure 8
67 210-1110 Screw 5-16-18 x 1 1/2 8
69 210-1111 Nut 1
70 210-0985 Clamp 1
71 999-0120 Washer 3/8 SAE flat 1
72 210-1112 Knob 1
73 210-0988 Tube socket 1
74 210-0989 Socket axle 1
75 210-1113 Clamp 4
77 210-0070 Washer .850 x .017 end play 2
79 210-1114 Polisher wheel 2
80 210-1115 Spacer 2
81 210-1116 Tube 2
82 210-0995 Flat washer 4
83 210-1117 Screw 38-16 x 5 1
84a 210-1118 Polisher base 1 (17 inch)
84b 210-1119 Polisher base 1 (20 inch)
88 210-1120 Washer stainless steel 2
91 210-0947 Koblenz decal 1
92a 210-1121 Chassis 1 (17 inch)
92b 210-1122 Chassis 1 (20 inch)
93 210-1123 Wheel axle 1
94 210-1124 Bushing 2
95 210-1125 Separator 8
