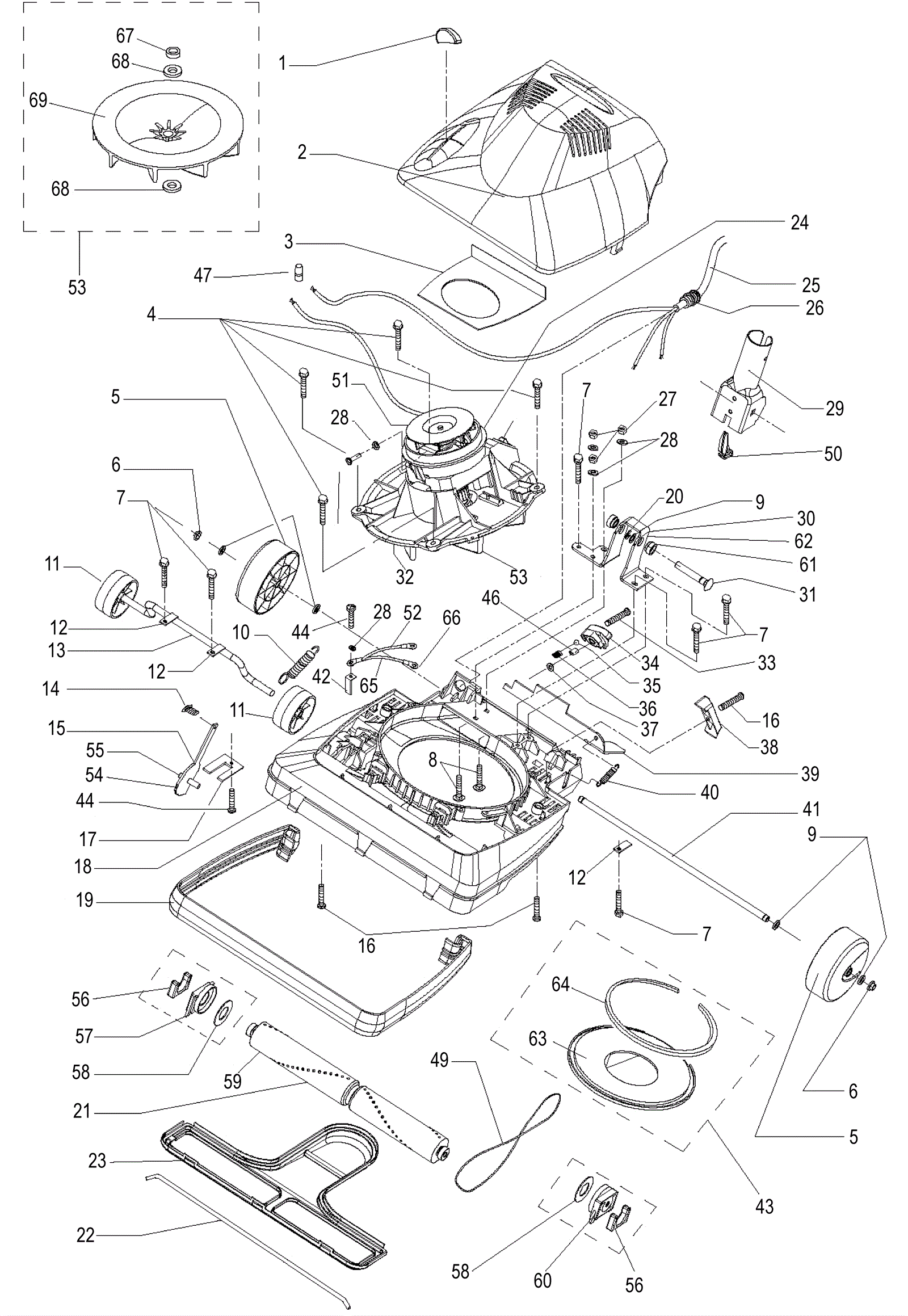

U-75 Internal Parts Diagram

#PartDescriptionPriceReqNotesAvailability
1 210-0206 Knob $0.98 1 usually ships 1-5 days
2 210-0202 Cover $18.83 1 usually ships 1-5 days
3 210-0924 Vac motor filter $3.50 1 ships same day
4 999-1604 Screw 10-16 x 3/4 pan head phillips zinc plated $0.99 4 usually ships 1-5 days
5 210-0209 Rear wheel $1.84 2 usually ships 1-5 days
6 210-1006 Retainer cap $1.85 2 usually ships 1-5 days
7 210-0210 Screw 10-16 x 5/8 hex head $0.90 6 usually ships 1-5 days
8 210-0211 Screw 10 x 5/8 $0.90 2 usually ships 1-5 days
9 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
10 210-0213 Front axle spring $3.54 1 usually ships 1-5 days
11 210-0214 Front wheel $2.12 2 usually ships 1-5 days
12 210-0215 Axle retainer plate $0.90 3 usually ships 1-5 days
13 210-0216 Front axle $10.59 1 usually ships 1-5 days
14 210-0217 Screw #6 type b $1.84 1 usually ships 1-5 days
15 210-0218 Cam assembly $5.30 1 (includes 54 and 55) usually ships 1-5 days
16 210-0221 Screw #6 x 5/8 phillips type bc $0.90 2 usually ships 1-5 days
17 210-0222 Cam retainer plate $0.90 1 usually ships 1-5 days
18 210-0201 Chassis $56.71 1 usually ships 7-20 days
19 210-0891 Front bumper $7.06 1 usually ships 1-5 days
20 210-0123 Retainer clip $0.90 1 usually ships 7-20 days
21 210-0156 Brush roll assy (includes bearings and supports) $13.85 1 (includes 56-60) ships same day
22 210-0166 Bottom plate retainer $2.82 1 usually ships 7-20 days
23 210-0197 Bottom plate $32.96 1 usually ships 7-20 days
24 210-0223 Motor cooling cover $1.70 1 usually ships 1-5 days
25 210-0885 Power cord $35.31 1 usually ships 7-20 days
26 210-0886 Strain relief $3.54 1 usually ships 7-20 days
27 999-0960 Nut 10-24 hex stainless steel $0.99 3 ships same day
28 210-0036 Washer 10 X .204 star $0.90 5 usually ships 1-5 days
29 210-0225 Chromed yoke $14.12 1 usually ships 7-20 days
30 210-0226 Yoke support bushing assembly $7.06 1 (includes 61 and 62) usually ships 7-20 days
31 210-0229 Bolt for yoke $1.11 1 ships same day
32 210-0230 Gasket $1.28 1 usually ships 1-5 days
33 210-0231 Screw 8 x 3/4 $0.90 2 usually ships 1-5 days
34 210-0041 Bag knob $1.24 1 usually ships 7-20 days
35 210-0039 Ball $3.49 1 usually ships 7-20 days
36 210-0044 Knob spring $1.84 1 usually ships 7-20 days
37 210-0117 Washer 13/64 flat $0.90 1 usually ships 1-5 days
38 210-0037 Bag support $1.28 1 usually ships 1-5 days
39 210-0232 Pedal $8.24 1 usually ships 1-5 days
40 210-0233 Pedal spring $2.88 1 usually ships 1-5 days
41 210-0234 Rear axle $4.94 1 usually ships 1-5 days
42 210-0235 Grounding terminal $1.28 1 usually ships 1-5 days
43 210-0932 Fan cover $8.24 2 (includes 63 and 64) usually ships 7-20 days
44 210-0017 Screw 8 X 3/8 type B $0.90 2 usually ships 1-5 days
45 210-0236 Screw 8-32 x 1/4 type t $0.90 1 usually ships 1-5 days
46 210-0040 Bag knob spacer $0.90 1 usually ships 7-20 days
47 210-0237 Cable connector $0.90 1 usually ships 1-5 days
48 210-0083 Switch $4.06 1 ships same day
49 210-0180 Belt - brush roll - upgraded clear type $4.23 1 ships same day
50 210-5617 Actuator switch $2.96 1 usually ships 7-20 days
51 210-0888 Motor assembly $94.16 1 ships same day
52 210-0238 Cord assembly $4.60 1 (includes 65 and 66) usually ships 1-5 days
53 210-0196 Lexan fan kit $5.89 1 (includes 67-69) ships same day
54 210-0219 Cam $5.89 1 usually ships 1-5 days
55 210-0220 Bolt for cam $0.92 1 usually ships 1-5 days
56 210-0159 Bearing support gasket $1.10 1 usually ships 1-5 days
57 210-0162 Left bearing support $2.34 1 usually ships 1-5 days
58 210-0161 Felt bearing support $0.90 2 usually ships 1-5 days
59 210-0156 Brush roll assy (includes bearings and supports) $13.85 1 ships same day
60 210-0160 Right bearing support $2.22 1 usually ships 1-5 days
61 210-0227 Bushing $0.90 2 usually ships 7-20 days
62 210-0228 Yoke support $5.00 1 usually ships 7-20 days
63 210-0932 Fan cover $8.24 1 usually ships 7-20 days
64 210-0198 Gasket $1.18 1 usually ships 1-5 days
65 210-0239 Grounding cable $1.70 2 usually ships 1-5 days
66 210-0240 Terminal Call for price 3 usually ships 1-5 days
67 210-0241 Nut $0.90 1 usually ships 1-5 days
68 210-0242 Washer $5.25 2 usually ships 1-5 days
69 210-0084 Fan $20.19 1 usually ships 7-20 days
N/S 210-0243 Spacer $2.20 1 usually ships 1-5 days
