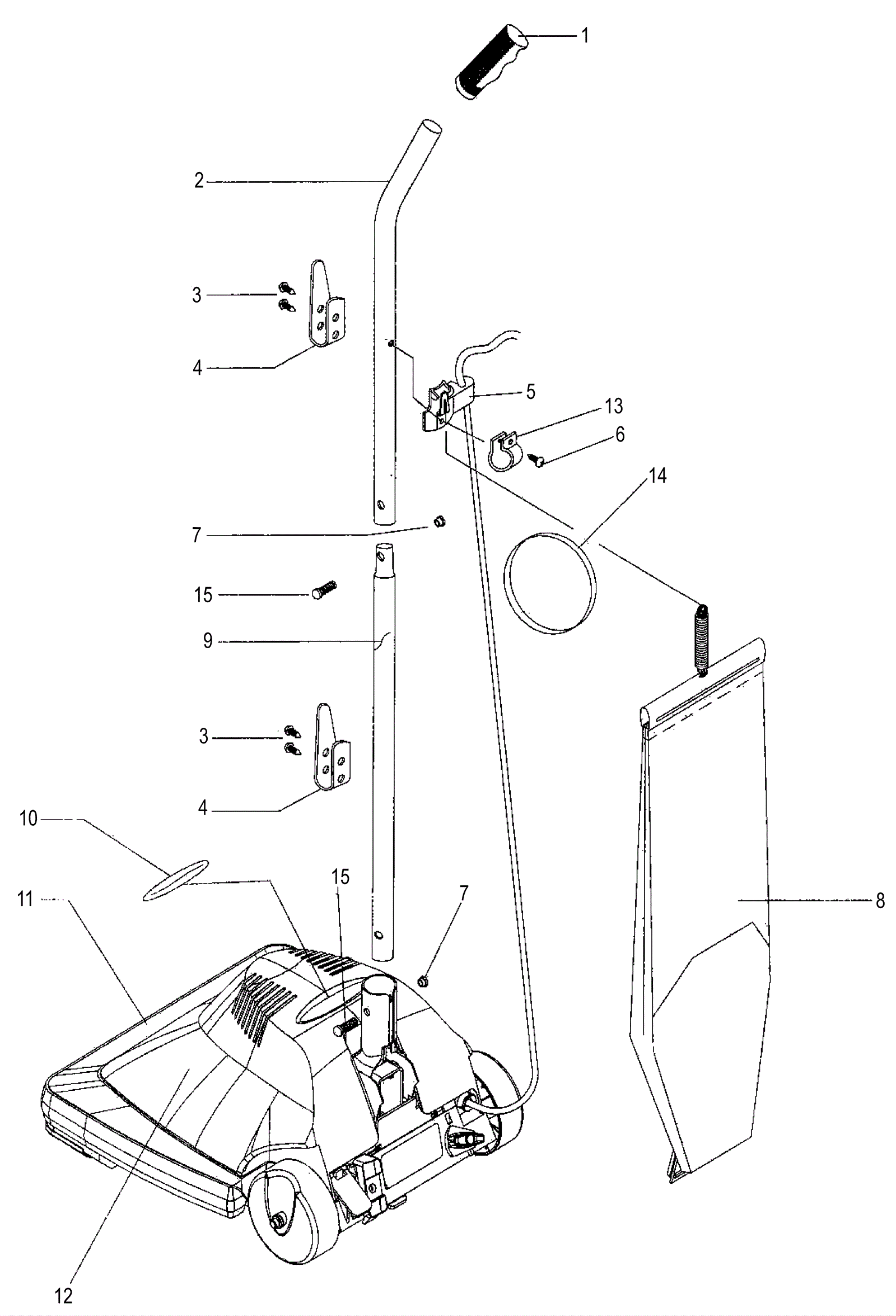

U-75 External Parts Diagram

#PartDescriptionPriceReqNotesAvailability
1 210-0001 Handle grip $3.24 1 usually ships 1-5 days
2 210-0925 Cord hook $10.59 1 usually ships 1-5 days
3 210-0008 Screw 10 X 5/8 type A $0.90 4 usually ships 7-20 days
4 210-0890 Cord hook $2.96 2 usually ships 1-5 days
5 210-0006 Cord retainer $3.13 1 usually ships 7-20 days
6 210-0007 Screw 8 x 1/2 type A $0.90 1 usually ships 1-5 days
7 210-0013 Nut $1.52 2 usually ships 1-5 days
8a 210-0047 Permanent cloth bag stamped $38.43 1 usually ships 7-20 days
8b 210-0056 Paper bag (3 pack) $5.00 1 usually ships 7-20 days
9 210-0199 Lower handle (black) $9.42 1 usually ships 1-5 days
10 210-0200 U-75 cover decal $1.70 1 usually ships 1-5 days
11 210-0201 Chassis $56.71 1 usually ships 7-20 days
12 210-0202 Cover $18.83 1 usually ships 1-5 days
13 210-0203 Belt retainer $0.90 1 usually ships 1-5 days
14 210-0204 Belt $2.54 1 usually ships 7-20 days
15 210-0205 Handle screw $0.90 2 usually ships 7-20 days
