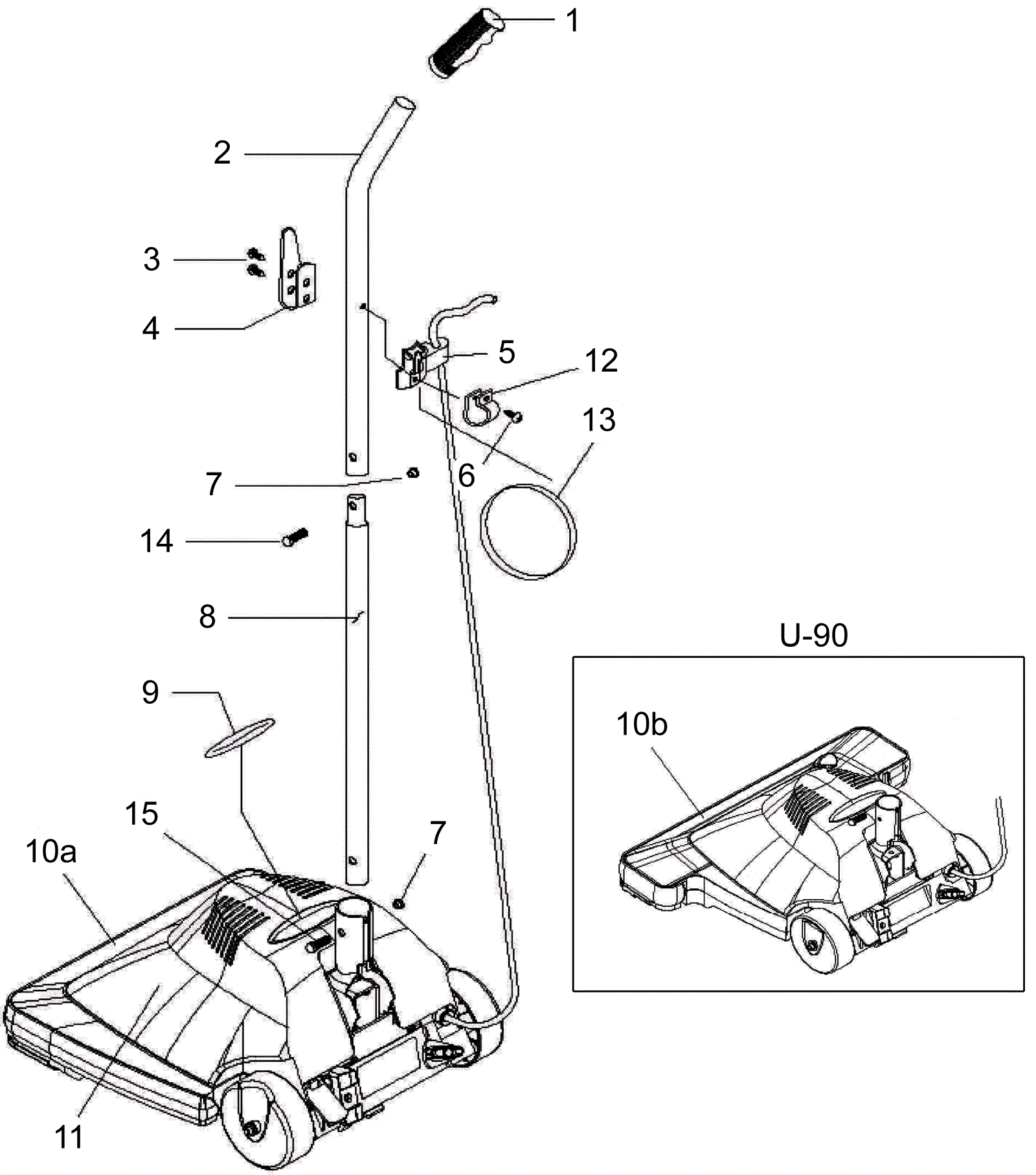

U-80 External Parts Assembly

#PartDescriptionPriceReqNotesAvailability
1 210-0001 Handle grip $3.56 1 usually ships 1-5 days
2 210-0925 Cord hook $11.65 1 usually ships 1-5 days
3 210-0008 Screw 10 X 5/8 type A $0.99 2 usually ships 15-24 days
4 210-0890 Cord hook $3.26 1 usually ships 1-5 days
5 210-0006 Cord retainer $3.44 1 usually ships 15-24 days
6 210-0007 Screw 8 x 1/2 type A $0.99 1 usually ships 1-5 days
7 210-0013 Nut $1.67 2 usually ships 1-5 days
8 210-0199 Lower handle (black) $10.36 1 usually ships 1-5 days
9 N/A Not available Call for price 1 (model decal) usually ships 3-26 days
10a 210-0201 Chassis $62.38 1 (U-80) usually ships 15-24 days
10b 210-5630 Chassis tampo plastic $48.66 1 (U-90) usually ships 15-24 days
11 210-5631 Cover tampo plastic $20.71 1 usually ships 15-24 days
12 210-0203 Belt retainer $0.99 1 usually ships 1-5 days
13 210-0180 Belt - brush roll - upgraded clear type $4.65 1 ships same day
14 210-0205 Handle screw $0.99 1 usually ships 15-24 days
15 210-0179 Screw 10-32 x 1 3/8 machine $0.99 1 usually ships 1-5 days
