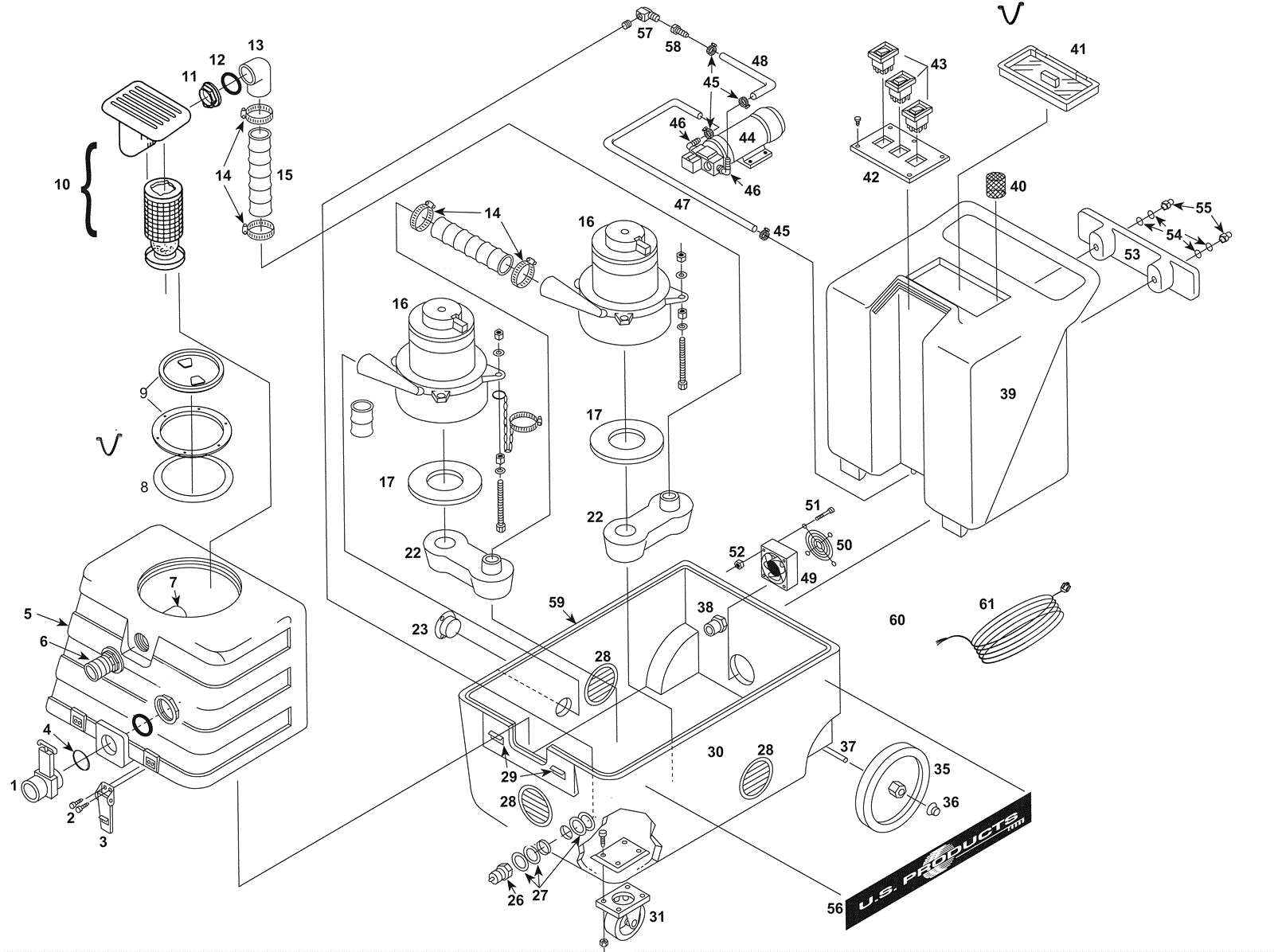

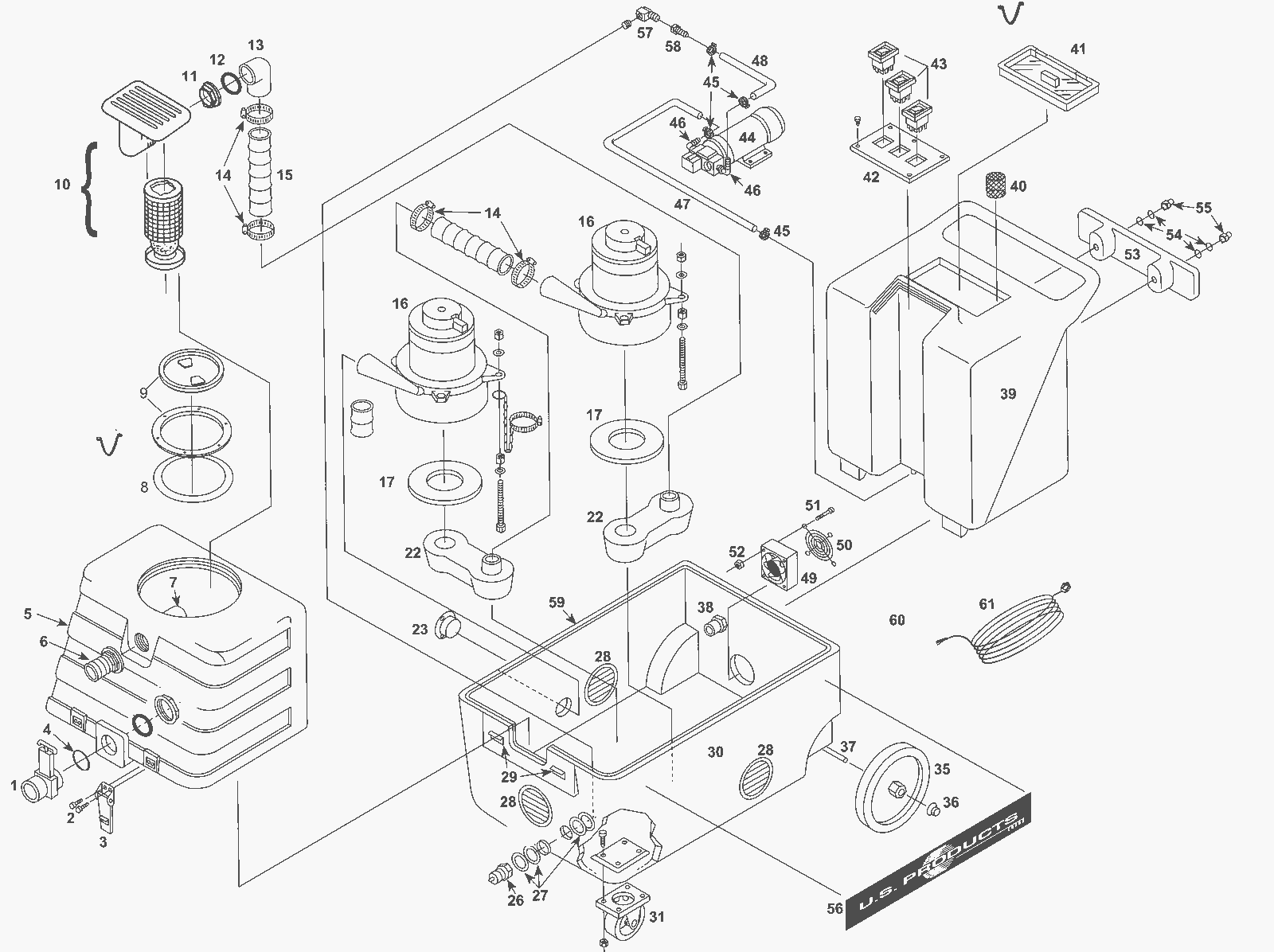

Entire Assembly

#PartDescription ReqNotesAvailability
1 209-2203 DRAIN GATE ASSEMBLY FOR COBRA 1
2 209-0062 Screw 10-32 x 5/8 button head 4
3 172-0094 Latch 2
4a 270-8075 O-ring 1
4b 209-0341 Rubber washer 1
4c 170-0647 Lock nut 1
5 372-1370 Vacuum tank 1
6 172-2481 Hose barb 1
7 172-2473 PVC elbow 1-1/2 1
8 209-0088 Gasket lid 1
9b 172-2474 8 inch chain 2
10 209-0071 Complete ball float assembly (OBSOLETE) 1
11 170-0647 Lock nut 1
12 209-0341 Rubber washer 1
13 172-2473 PVC elbow 1-1/2 1
14 209-0657 Hose clamp 4
15a 270-8077 Hose 2 X 21 inch 1
15b 209-2344 Vacuum hose 1
16 209-0004 120V 2 stage vacuum motor with gasket and connectors 2
17 209-0005 Vacuum motor gasket 2
22 209-0132 Vacuum manifold 2
23a 209-0139 Exhaust flange 1
23b 209-0079 Exhaust hose (sold by the inch) 1
26 209-0336 Male quick disconnect 1
27a 209-0628 Washer 1
27b 209-6081 Washer 1
27c 209-0125 Fiber bushing 1
28 372-3715 Shutter 3
29 209-0140 Latch strike 2
30 270-8082 Black base 1
31 270-8083 Castor (OBSOLETE) 2
35 209-0145 Wheel inch8 2
36 170-5410 Axle cap (OBSOLETE) 2
37 N/A Not available 1 (Axle rod)
38 209-0141 PVC reducer 1
39 372-1377 Holding tank 1
40 209-0150 Filter 1
41 270-8137 Tinted tank lid 1
42a 209-2345 3 hole switch plate 1
42b 272-6814 Screw M4 x .375mm 4
43 172-3539 Switch with cover (OBSOLETE) 3
44 209-0006 100psi pump 1
45 209-0604 Hose clamp 4
46 209-0058 Hose barb elbow 3/8 inch x 3/8 inch 1
47 209-2346 13 inch hose 1
48 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) 1
49 209-0074 Cooling fan 1
50 209-0075 Guard fan 1
51 209-0159 Screw 6/32 inch x 2 inch-1/4 4
52 270-8623 Nut nylon lock 6/32 Z.P 4
53 209-0162 Cord wrap 1
54 209-0164 Washer, nylon 4
55 209-0163 Nut 3/8 inch acron 2
56 N/A Not available 1 (Decal)
57a 209-0609 90 degree elbow 1
57b 209-0124 Nipple 1
58 209-0039 Hose barb 1/4 1
59 372-1373 Gasket 1
60 209-0142 Cord retainer 1
61 209-0143 Yellow power cord 1
