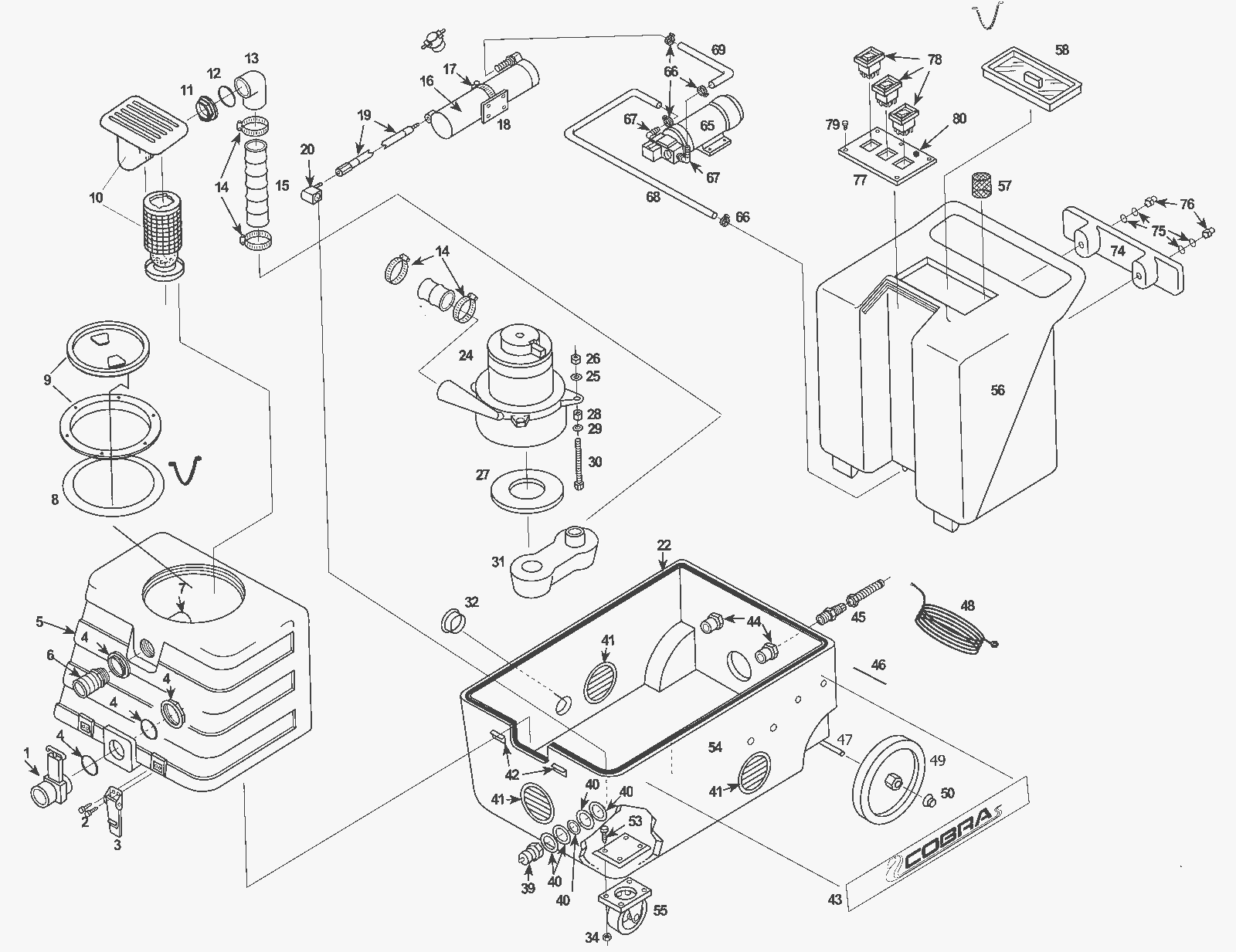

Entire Assembly

#PartDescription ReqNotesAvailability
1 270-8097 Drain valve (black) 1
2 209-0062 Screw 10-32 x 5/8 button head 4
3 172-0094 Latch 2
4a 270-8075 O-ring 1
4b 209-0341 Rubber washer 2
4c 170-0647 Lock nut 1
5 N/A Not available 1 (Vacuum tank)
6 172-2481 Hose barb 1
7 172-2473 PVC elbow 1-1/2 1
8 209-0088 Gasket lid 1
9b 209-0386 O-ring 1
9c 209-0394 8 inch lid chain (OBSOLETE) 2
10 209-0071 Complete ball float assembly (OBSOLETE) 1
11 170-0647 Lock nut 1
12 270-8075 O-ring 1
13 172-2473 PVC elbow 1-1/2 1
14 209-0657 Hose clamp 4
15 270-8077 Hose 2 X 21 inch 1
16a 209-2336 Heat exchanger 1
16b 209-0333 Bi-metallic heat repair kit 1 (includes cutout and thermostat switch)
17 209-0120 Hose clamp (OBSOLETE) 1
18 209-0621 Heat exchanger mount 1
19 270-8093 Heater to outlet hose (OBSOLETE) 1
20 209-0609 90 degree elbow 7
22 270-8078 Base gasket poron 7/8 x 7 inch 1
24 991-1213 120V 3 stage vacuum motor tangential 1
25 999-0006 Washer 3/16 flat zinc plated 4
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 15
27 209-0632 Adhesive gasket 1
28 170-6639 Nut 1/4-20 6
29 999-0006 Washer 3/16 flat zinc plated 17
30 209-0133 Bolt 5 inch x 1/4 inch 3
31 209-0132 Vacuum manifold 1
32 209-0139 Exhaust flange 1
34 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
39 209-0336 Male quick disconnect 1
40a 209-0628 Washer 3
40b 209-0125 Fiber bushing 1
40c 209-6081 Washer 1
41 209-0479 Louver (OBSOLETE) 3
42 209-0140 Latch strike 2
43 N/A Not available 2 (Decal)
44 209-0141 PVC reducer 2
45 209-0142 Cord retainer 2
46 N/A Not available 2 (Rod)
47 N/A Not available 1 (Axle rod)
48 209-0143 Yellow power cord 2
49 209-0145 Wheel inch8 2
50 170-5410 Axle cap (OBSOLETE) 2
54 270-8082 Black base 1
55 270-8083 Castor (OBSOLETE) 2
56 372-1377 Holding tank 1
57 209-0150 Filter 1
58 270-8137 Tinted tank lid 1
65 209-0006 100psi pump 1
66 209-0604 Hose clamp 3
67 209-0058 Hose barb elbow 3/8 inch x 3/8 inch 2
68 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) 1
69 209-0076 24 inch pump inlet hose (sold by the inch) (OBSOLETE) 1
74 209-0162 Cord wrap 1
75 209-0164 Washer, nylon 4
76 209-0163 Nut 3/8 inch acron 2
77 372-1384 Switch plate 1
78 172-3539 Switch with cover (OBSOLETE) 3
79 272-6814 Screw M4 x .375mm 5
80 209-0367 Green light 1
N/S 272-6871 Extension cord caution decal 2
N/S N/A Not available 1 (Decal)
N/S 209-0382 Heat designation power decal 1
