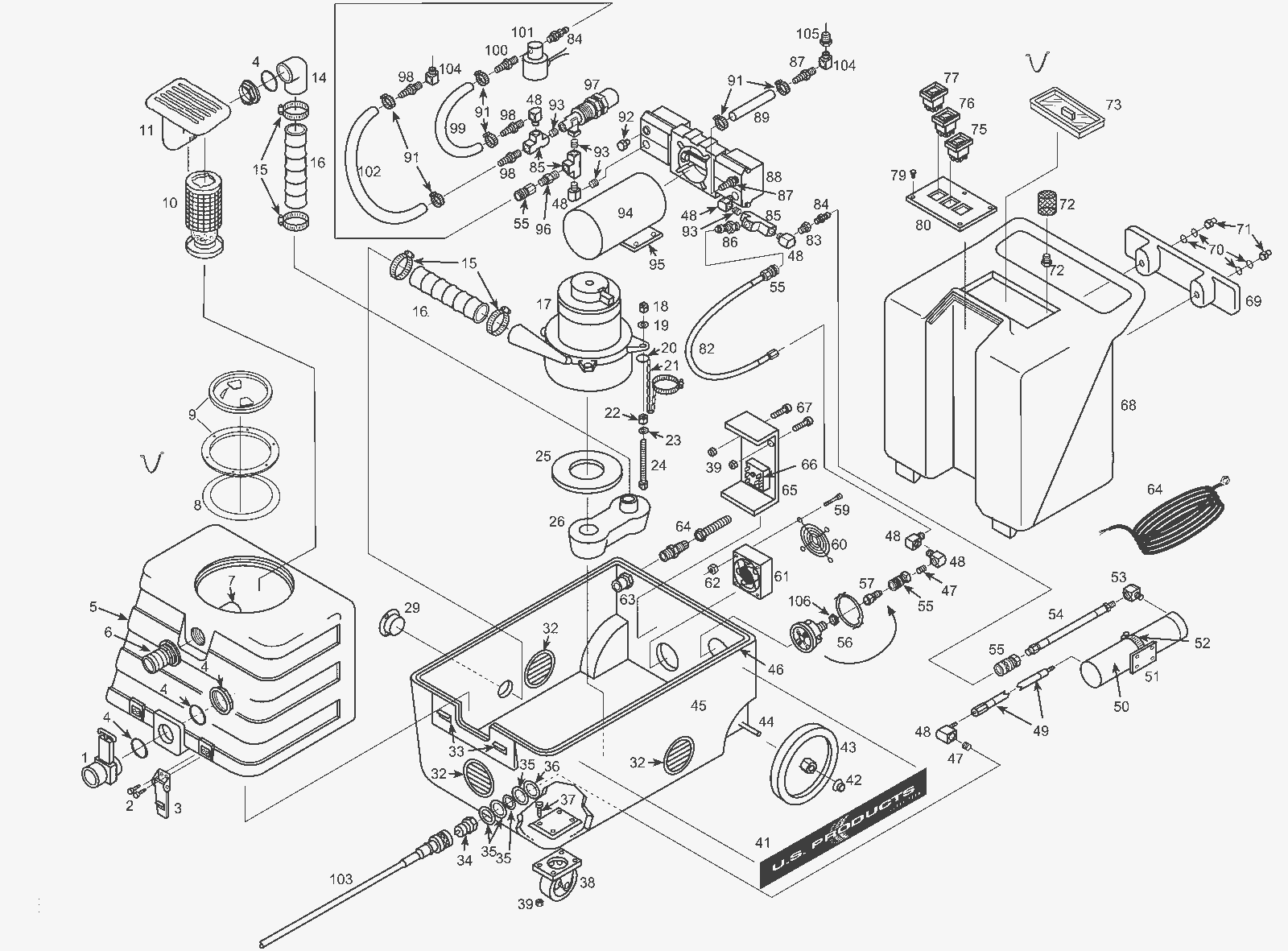

Entire Assembly

#PartDescription ReqNotesAvailability
1 270-8097 Drain valve (black) 1
2 209-0062 Screw 10-32 x 5/8 button head 4
3 172-0094 Latch 2
4a 270-8075 O-ring 1
4b 209-0341 Rubber washer 2
4c 170-0647 Lock nut 1
5 372-1370 Vacuum tank 1
6 172-2481 Hose barb 1
8 209-0088 Gasket lid 1
9b 209-0394 8 inch lid chain (OBSOLETE) 2
10 372-1365 Float ball and cage with manifold 1
11 209-0071 Complete ball float assembly (OBSOLETE) 1
14 172-2473 PVC elbow 1-1/2 1
15 209-0657 Hose clamp 4
16a 270-8077 Hose 2 X 21 inch 1
16b N/A Not available 1 (Vacuum hose)
17 372-1371 Vacuum motor (OBSOLETE) 1
18 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 3
19 999-0024 Washer 5/16 flat stainless steel 3
20 209-0128 Split ring 1
21 N/A Not available 1 (13 inch chain)
22 999-0069 Nut 5/16-18 hex 3
23 170-6686 Washer 5/16 lock 3
24 209-6127 Bolt 5/16 x 4 fully threaded 3
25 209-0284 Vacuum motor gasket 1
26 209-0132 Vacuum manifold 1
29 209-0139 Exhaust flange 1
32 372-3715 Shutter 3
33 209-0140 Latch strike 2
34 209-0336 Male quick disconnect 1
35a 209-0628 Washer 3
35b 209-0125 Fiber bushing 1
36 209-6081 Washer 1
37 209-0148 Bolt 1/4 inch x 3/4 inch 8
38 270-8083 Castor (OBSOLETE) 2
39 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 10
41 372-1372 Cobra decal 2
42 170-5410 Axle cap (OBSOLETE) 2
43 209-0145 Wheel inch8 2
44 N/A Not available 2 (Axle)
45 270-8082 Black base 1
46 372-1373 Gasket 1
47 209-0124 Nipple 2
48 209-0609 90 degree elbow 7
49 372-1374 Hose assembly (OBSOLETE) 1
50 372-1375 100V heater exchange 1
51 209-0621 Heat exchanger mount 1
52 209-0436 Hose clamp 1
53 209-0619 90 degree elbow 1/8 x 1/8 inch 1
54 372-1376 Hydraulic hose 1
55 209-0468 Brass quick disconnect socket 4
56 209-0011 PSI pressure gauge 1
57 209-0624 1/4 inch quick connect brass 1
59 209-0159 Screw 6/32 inch x 2 inch-1/4 4
60 209-0075 Guard fan 1
61 209-0074 Cooling fan 1
62 270-8623 Nut nylon lock 6/32 Z.P 4
63 209-0141 PVC reducer 1
64a 209-0142 Cord retainer 1
64b 209-0143 Yellow power cord 1
65 209-0108 Heat sink plate 1
66 209-0412 Thermistor control (OBSOLETE) 1
67 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2
68 372-1377 Holding tank 1
69 209-0162 Cord wrap 1
70 209-0164 Washer, nylon 4
71 209-0163 Nut 3/8 inch acron 2
72a 209-0026 Pump inlet filter 1
72b 172-9444 Reducer 1
73 270-8137 Tinted tank lid 1
75 172-3539 Switch with cover (OBSOLETE) 1
76 172-3539 Switch with cover (OBSOLETE) 1
77 172-3539 Switch with cover (OBSOLETE) 1
79 272-6814 Screw M4 x .375mm 4
80 372-1378 Switch plate 1
82 209-2180 HOSE PULSATION DAMPENING 28 O 1
83 170-5417 Bushing 1
84 209-0099 Male quick disconnect 2
85 209-0610 1/4 inch tee brass 3
86 209-0618 Quick connect plug 1
87 209-0449 Hose barb 2
88 209-0009 Complete pump (except motor) 1
89 372-1379 Pump inlet hose 1
91 209-0604 Hose clamp 6
92 209-0614 1/4 inch plug 1
93 209-0124 Nipple 4
94 172-9331 Pump motor kit 1
96 172-1342 Male reducer nipple 1
97 372-1381 8 inch hose 1
98 209-0157 Hose barb with male 1/4 pipe 3
99 372-1381 8 inch hose 1
100 209-0460 Hose barb 3/8 x 1/8 pt 1
101a 209-0611 Solenoid 1
101b 272-8051 120V complete solenoid 1
102 209-0152 Inlet hose 3/8 inch x 18 inch 1
103 209-0030 Syphon hose (OBSOLETE) 1
104 209-0623 90 degree elbow 1/4 inch brass 2
105 209-0450 Bushing 1
106 272-5675 Nut M4-0.7 hex flange stainless steel 1
N/S 209-2040 ELBOW 45DEG.ANGLE 1/4 MALE X 1 1
N/S 272-6815 Gasket 1
N/S 209-0665 Brass nipple 1
