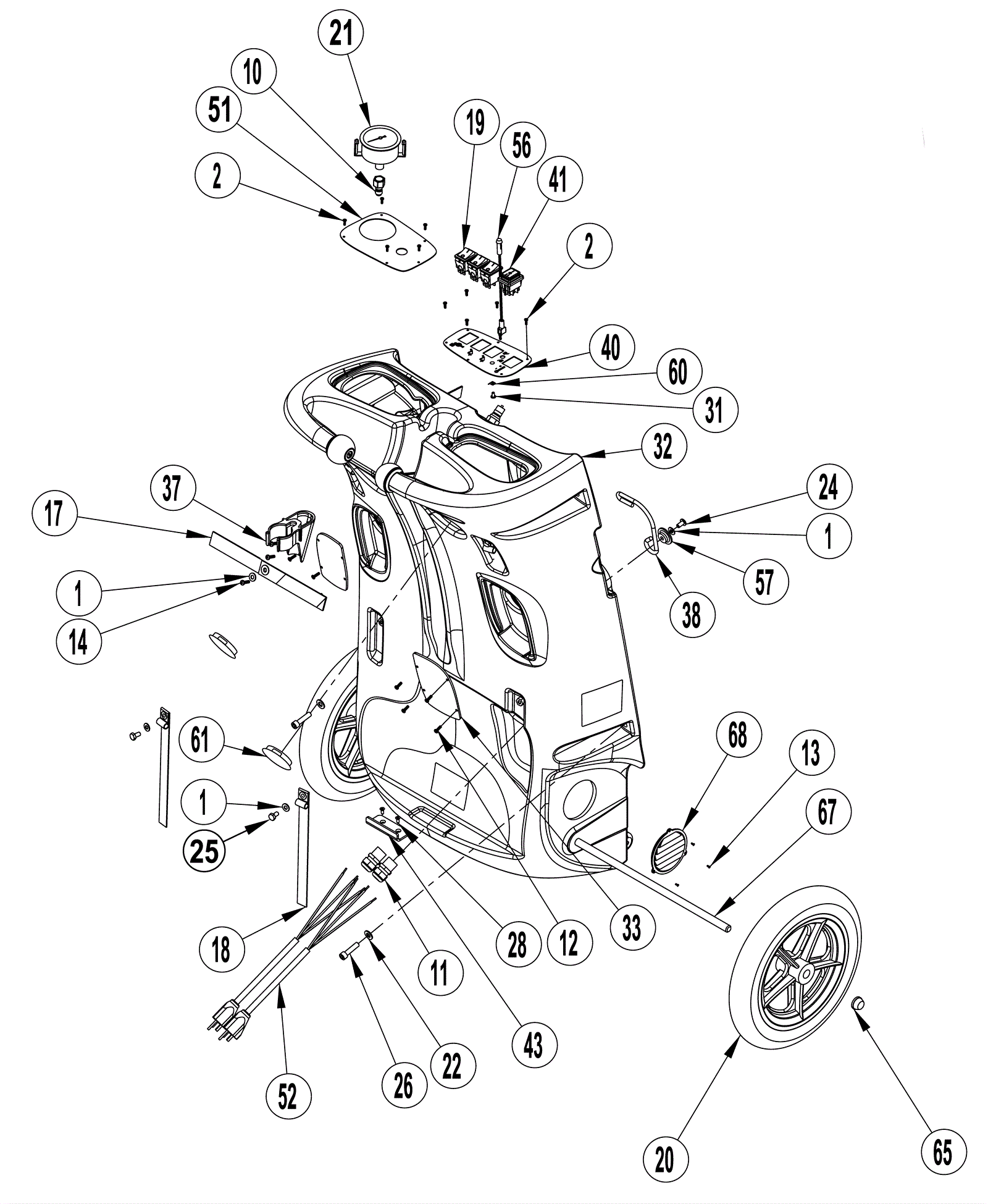

PEX 500 Lower Assembly - Series 1 - PEX 200

#PartDescriptionPriceReqNotesAvailability
1 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 22 (Washer) (Only available in kit) usually ships 16-41 days
2 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 11 (Screw) (Only available in kit) usually ships 16-41 days
10 209-0624 1/4 inch quick connect brass $7.85 1 ships same day
11 209-0677 Cord retainer $10.56 2 usually ships 16-41 days
12 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 19 (Screw) (Only available in kit) usually ships 16-41 days
13 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 6 (Screw) (Only available in kit) usually ships 16-41 days
14 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 4 (Screw) (Only available in kit) usually ships 16-41 days
17 209-0269 Cord strap (OBSOLETE) $8.11 2 usually ships 16-41 days
18 209-0363 Cord strap $10.56 4 usually ships 16-41 days
19 172-9342 Rocker switch $20.86 3 usually ships 16-41 days
20 209-0357 12 inch wheel $57.08 2 usually ships 16-41 days
21 209-0011 PSI pressure gauge $79.01 1 usually ships 16-34 days
22 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 4 (Washer) (Only available in kit) usually ships 16-41 days
24 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 2 (Screw) (Only available in kit) usually ships 16-41 days
25 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 7 (Screw) (Only available in kit) usually ships 16-41 days
26 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 4 (Screw) (Only available in kit) usually ships 16-41 days
28 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 2 (Screw) (Only available in kit) usually ships 16-41 days
31 472-4638 KIT-HARDWARE PALLET SYS 200 $28.46 1 (Screw) (Only available in kit) usually ships 16-41 days
32 472-4587 EQUIPMENT PALLET $447.72 1 usually ships 16-41 days
33 472-4588 COVER-INTAKE-PALLET $11.69 2 usually ships 16-41 days
38 472-4592 HOSE HANGER SS (OBSOLETE) $29.55 2 usually ships 16-41 days
40 272-5674 120V switch plate assembly $62.83 1 usually ships 1-5 days
41 472-4595 ROCKER SWITCH-3 POSITION (OBSOLETE) $25.36 1 usually ships 16-41 days
43 472-4598 WAND BRACKET (OBSOLETE) $17.46 1 usually ships 16-41 days
51 472-4618 COVER PLATE PRESSURE 200PSI $21.00 1 usually ships 16-41 days
52 272-5676 Pigtail power cord $11.99 2 usually ships 16-41 days
56 209-0671 Light (green) $21.00 1 usually ships 16-41 days
57 472-4633 HOSE HANGER BUSHING $14.71 2 usually ships 16-41 days
60 372-1303 Quick connect $11.99 1 usually ships 16-41 days
61 N/A Not available Call for price 2 (Plug) usually ships 3-26 days
65 170-5410 Axle cap (OBSOLETE) $10.56 2 usually ships 16-41 days
67 372-1304 Axle rod (zinc) $15.07 1 usually ships 16-41 days
