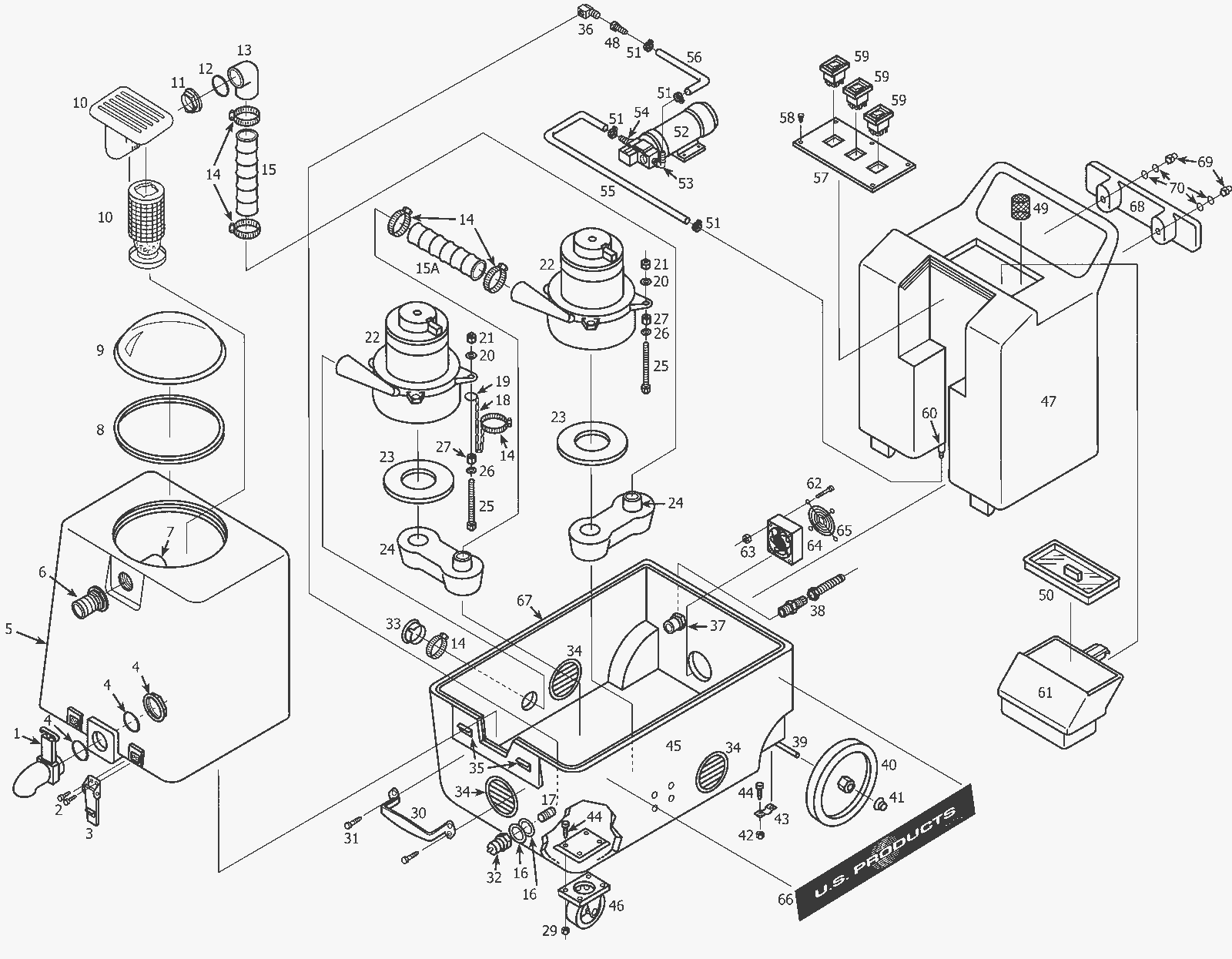

Entire Assembly

#PartDescription ReqNotesAvailability
1 270-8097 Drain valve (black) 1
2 209-0062 Screw 10-32 x 5/8 button head 2
3 172-0094 Latch 1
4a 270-8075 O-ring 1
4b 209-0341 Rubber washer 1
4c 170-0647 Lock nut 1
5 N/A Not available 1 (Vacuum tank)
6 172-2481 Hose barb 1
7 172-2473 PVC elbow 1-1/2 1
8 209-0031 Dome gasket (OBSOLETE) 1
9 209-0032 Vacuum dome (no gasket) (OBSOLETE) 1
10a 209-0071 Complete ball float assembly (OBSOLETE) 1
10b 372-1365 Float ball and cage with manifold 1
11 170-0647 Lock nut 1
12 209-0341 Rubber washer 1
13 172-2473 PVC elbow 1-1/2 1
14 209-0657 Hose clamp 4
15a 209-0118 Hose vacuum to tank 2 inch x 24 inch (OBSOLETE) 11
15b 209-0119 Hose vacuum to manifold 2 inch x 13 inch 1
16a 209-0628 Washer 1
16b 209-6081 Washer 1
17 209-0124 Nipple 1
18 209-0126 12 inch Chain assembly (OBSOLETE) 1
19 209-0128 Split ring 1
20 999-0006 Washer 3/16 flat zinc plated 2
21 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
22 209-0004 120V 2 stage vacuum motor with gasket and connectors 2
23 209-0005 Vacuum motor gasket 2
24 209-0132 Vacuum manifold 2
25 209-0133 Bolt 5 inch x 1/4 inch 2
26 999-0006 Washer 3/16 flat zinc plated 2
27 170-6639 Nut 1/4-20 2
29 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 10
30 209-0137 Chrome handle 1
31 209-0138 Screw flathead 1/4 inch 2
32 209-0336 Male quick disconnect 1
33 209-0139 Exhaust flange 1
34 372-3715 Shutter 3
35 209-0140 Latch strike 2
36 209-0609 90 degree elbow 1
37 209-0141 PVC reducer 1
38a 209-0142 Cord retainer 1
38b 209-0143 Yellow power cord 1
39 209-0107 Axle 1
40 209-0145 Wheel inch8 2
41 170-5410 Axle cap (OBSOLETE) 2
42 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
43 209-0147 Axle bracket 2
44 209-0148 Bolt 1/4 inch x 3/4 inch 4
45 209-0146 Black base (OBSOLETE) 1
46 209-0480 Caster wheel (gray) 2
47 209-0149 Holding tank (OBSOLETE) 1
48 209-0039 Hose barb 1/4 1
49 209-0150 Filter 1
50 270-8137 Tinted tank lid 1
51 209-0604 Hose clamp 4
52 172-3533 Pump 120volt 150psi (OBSOLETE) 1
53 209-0058 Hose barb elbow 3/8 inch x 3/8 inch 1
54 209-0057 Hose barb 3/8 inch x 3/8 inch 1
55 209-0152 Inlet hose 3/8 inch x 18 inch 1
56 209-0153 Outlet hose 3/8 inchx 4' 1
57 N/A Not available 1 (Switch plate)
58 272-6814 Screw M4 x .375mm 5
59 172-3539 Switch with cover (OBSOLETE) 3
60 209-0157 Hose barb with male 1/4 pipe 1
61 209-0158 Funnel (OBSOLETE) 1
62 209-0159 Screw 6/32 inch x 2 inch-1/4 4
63 270-8623 Nut nylon lock 6/32 Z.P 4
64 209-0074 Cooling fan 1
65 209-0075 Guard fan 1
66 N/A Not available 1 (Decal)
67 209-0292 Gasket (OBSOLETE) 1
68 209-0162 Cord wrap 1
69 209-0163 Nut 3/8 inch acron 2
70 209-0164 Washer, nylon 2
