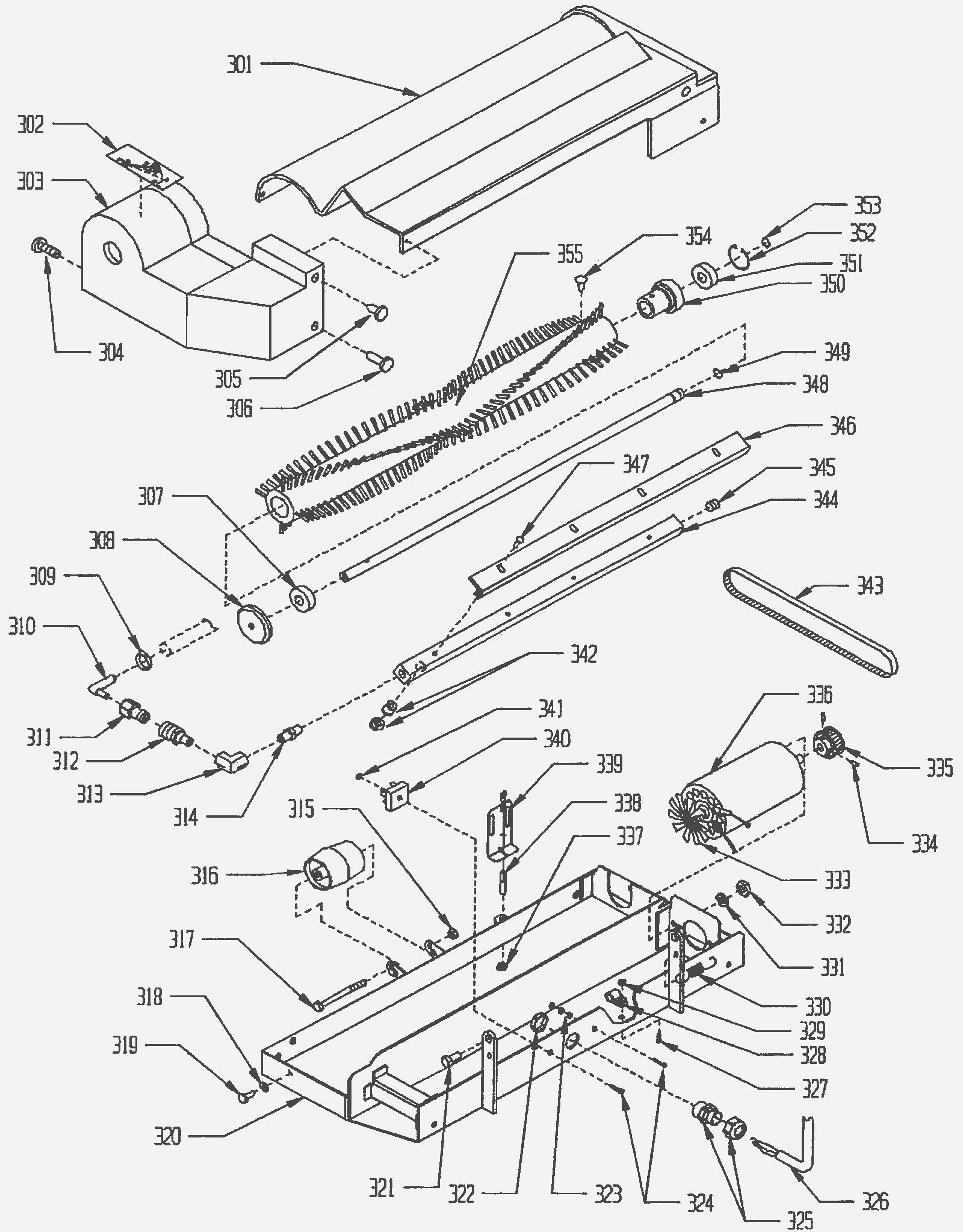

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
N/A
|
Not available |
1 |
(Long brush cover) |
|
302 |
N/A
|
Not available |
1 |
(Decal) |
|
303 |
N/A
|
Not available |
1 |
(Short brush cover) |
|
304 |
N/A
|
Not available |
3 |
(Screw) |
|
305 |
N/A
|
Not available |
1 |
(Screw) |
|
306 |
N/A
|
Not available |
2 |
(Screw) |
|
307 |
N/A
|
Not available |
1 |
(Bearing) |
|
308 |
N/A
|
Not available |
1 |
(Guard) |
|
309 |
N/A
|
Not available |
1 |
(Clamp) |
|
310 |
N/A
|
Not available |
1 |
(Hose barb) |
|
311 |
N/A
|
Not available |
1 |
(Male quick connect) |
|
312 |
N/A
|
Not available |
1 |
(Female quick connect) |
|
313 |
N/A
|
Not available |
1 |
(Elbow) |
|
314 |
N/A
|
Not available |
1 |
(Nipple) |
|
315 |
N/A
|
Not available |
1 |
(Nut) |
|
316 |
N/A
|
Not available |
1 |
(Roller wheel) |
|
317 |
N/A
|
Not available |
2 |
(Bolt) |
|
318 |
N/A
|
Not available |
2 |
(Washer) |
|
319 |
N/A
|
Not available |
1 |
(Screw) |
|
320 |
N/A
|
Not available |
2 |
(Brush housing frame) |
|
321 |
N/A
|
Not available |
1 |
(Screw) |
|
322 |
N/A
|
Not available |
3 |
(Nut) |
|
323 |
N/A
|
Not available |
1 |
(Washer) |
|
324 |
N/A
|
Not available |
2 |
(Screw) |
|
325 |
N/A
|
Not available |
1 |
(Strain relief) |
|
326 |
N/A
|
Not available |
1 |
(Power cord) |
|
327 |
N/A
|
Not available |
1 |
(Screw) |
|
328 |
N/A
|
Not available |
1 |
(Clamp) |
|
329 |
N/A
|
Not available |
1 |
(Washer) |
|
330 |
N/A
|
Not available |
1 |
(Adjusting wheel spring) |
|
331 |
N/A
|
Not available |
2 |
(Washer) |
|
332 |
999-1269
|
Nut 10-32 nylon insert jam stainless steel |
2 |
|
|
333 |
N/A
|
Not available |
1 |
(Brush drive motor fan) |
|
334 |
N/A
|
Not available |
2 |
(Screw) |
|
335 |
N/A
|
Not available |
1 |
(Pulley) |
|
336 |
N/A
|
Not available |
1 |
(Brush drive motor) |
|
337 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
338 |
N/A
|
Not available |
1 |
(Brush housing lift cable) |
|
339 |
N/A
|
Not available |
1 |
(Bracket) |
|
340 |
N/A
|
Not available |
1 |
(Rectifier) |
|
341 |
N/A
|
Not available |
1 |
(Washer) |
|
342 |
N/A
|
Not available |
5 |
(Spray tip with body) |
|
343 |
N/A
|
Not available |
1 |
(Brush drive belt) |
|
344 |
N/A
|
Not available |
1 |
(Spray bar) |
|
345 |
N/A
|
Not available |
1 |
(Pipe plug) |
|
346 |
N/A
|
Not available |
1 |
(Spray bar guide) |
|
347 |
N/A
|
Not available |
2 |
(Screw) |
|
348 |
N/A
|
Not available |
1 |
(Brush axle) |
|
349 |
N/A
|
Not available |
1 |
(retaining ring) |
|
350 |
N/A
|
Not available |
1 |
(Brush pulley) |
|
351 |
N/A
|
Not available |
1 |
(Bearing) |
|
352 |
N/A
|
Not available |
1 |
(Retaining ring) |
|
353 |
N/A
|
Not available |
1 |
(Retaining ring) |
|
354 |
N/A
|
Not available |
2 |
(Screw) |
|
355 |
N/A
|
Not available |
1 |
(Brush) |
|
