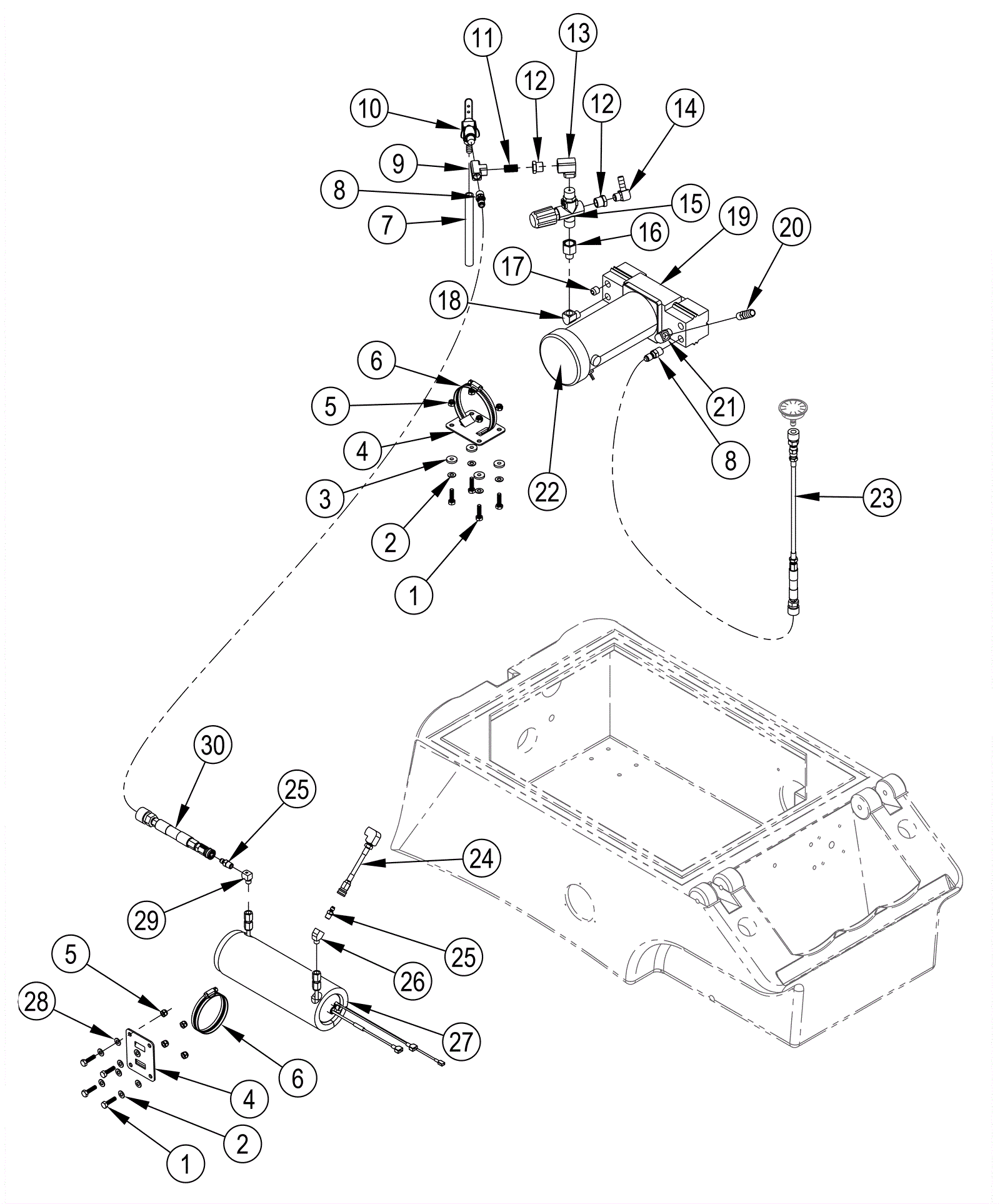

KING COBRA 300 Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 8 ships same day
2 999-0006 Washer 3/16 flat zinc plated $0.99 8 ships same day
3 209-0258 Washer $9.02 4 usually ships 16-41 days
4 209-0621 Heat exchanger mount $10.56 2 usually ships 1-5 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
6 209-0405 Hose clamp $5.26 2 usually ships 1-5 days
7 172-1909 PVC hose 3/8 x 6 inch $11.99 1 usually ships 16-41 days
8 209-0618 Quick connect plug $10.56 2 usually ships 16-41 days
9 209-0610 1/4 inch tee brass $11.99 1 usually ships 16-41 days
10 209-0371 Power prime valve $93.14 1 usually ships 16-41 days
11 209-0665 Brass nipple $10.56 2 usually ships 1-5 days
12 209-0450 Bushing $7.47 2 usually ships 1-5 days
13 472-7365 ELBOW 90 DEGREE 3/8 BRASS $13.40 1 usually ships 16-41 days
14 209-0627 90 degree hose barb 3/8 inch brass $11.50 1 usually ships 1-5 days
15 209-0287 Pressure regulator valve (unloader) $179.06 1 usually ships 16-41 days
16 172-9444 Reducer $11.99 1 usually ships 1-5 days
17 209-0614 1/4 inch plug $9.02 1 usually ships 16-41 days
18 209-2061 ELBOW 90 DEG 1/4 MPT X 1/4 $16.50 1 usually ships 16-41 days
19 209-0616 Pump $656.36 1 usually ships 16-41 days
20 209-0449 Hose barb $11.99 1 usually ships 16-41 days
21 209-0623 90 degree elbow 1/4 inch brass $19.45 1 usually ships 16-41 days
22 209-0061 Pump motor $761.01 1 usually ships 16-41 days
23 209-0399 Hose assembly $186.96 1 usually ships 1-5 days
24 209-0104 Hose, heater to outlet $288.31 1 usually ships 16-41 days
25 209-0099 Male quick disconnect $10.56 2 usually ships 1-5 days
26 209-6139 1/8 inch brass elbow $6.05 1 usually ships 16-41 days
27 209-2337 Heat exchanger $1,527.80 1 usually ships 16-41 days
28 209-0620 Washer 1/4 nylon (black) $7.47 16 usually ships 1-5 days
29 209-0619 90 degree elbow 1/8 x 1/8 inch $10.56 1 usually ships 1-5 days
30 209-0398 12 inch hose (OBSOLETE) $147.28 1 usually ships 16-41 days
N/S 209-0375 Bearing and cam assembly $46.92 1 usually ships 16-41 days
N/S 209-0261 Pump kit $156.64 1 usually ships 16-41 days
N/S 209-0616 Pump $656.36 1 usually ships 16-41 days
N/S 209-0718 Carbon brush $68.62 1 usually ships 16-41 days
N/S 172-2906 Priming hose with quick disconnect $69.12 1 usually ships 16-41 days
N/S 209-0279 Pump and motor complete $2,460.58 1 usually ships 16-41 days
