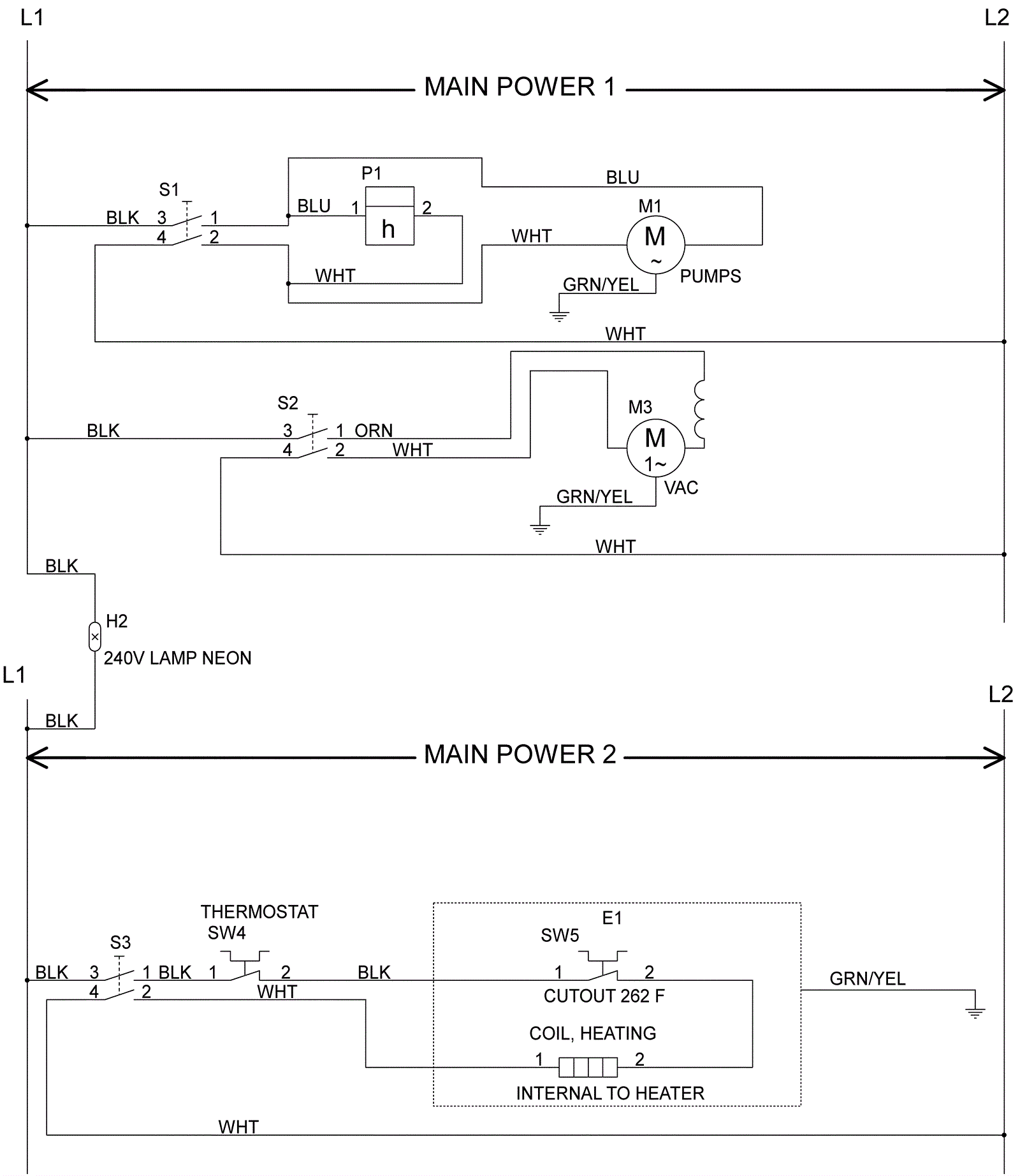

HYDRAPORT 200 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
E1a 209-0655 120V heater $481.80 (100D) usually ships 16-41 days
E1b 172-9141 120V heater $474.51 (200 and 400) usually ships 16-41 days
H2 209-0671 Light (green) $19.09 usually ships 16-41 days
M1a 172-9140 100PSI pump kit $691.83 (100D) usually ships 16-41 days
M1b 209-0666 Pump motor kit $380.65 (200) usually ships 1-5 days
M1c 172-9331 Pump motor kit $568.00 (400) usually ships 1-5 days
M3 209-0330 120V 3 stage vacuum motor $196.98 ships same day
P1 209-0672 Hour meter $53.16 usually ships 1-5 days
S1 172-9342 Rocker switch $18.96 usually ships 16-41 days
S2 172-9342 Rocker switch $18.96 usually ships 16-41 days
S3 172-9342 Rocker switch $18.96 usually ships 16-41 days
SW5 209-0333 Bi-metallic heat repair kit $223.87 (thermal cut-out) usually ships 16-41 days
KIT 209-0333 Bi-metallic heat repair kit $223.87 usually ships 16-41 days
