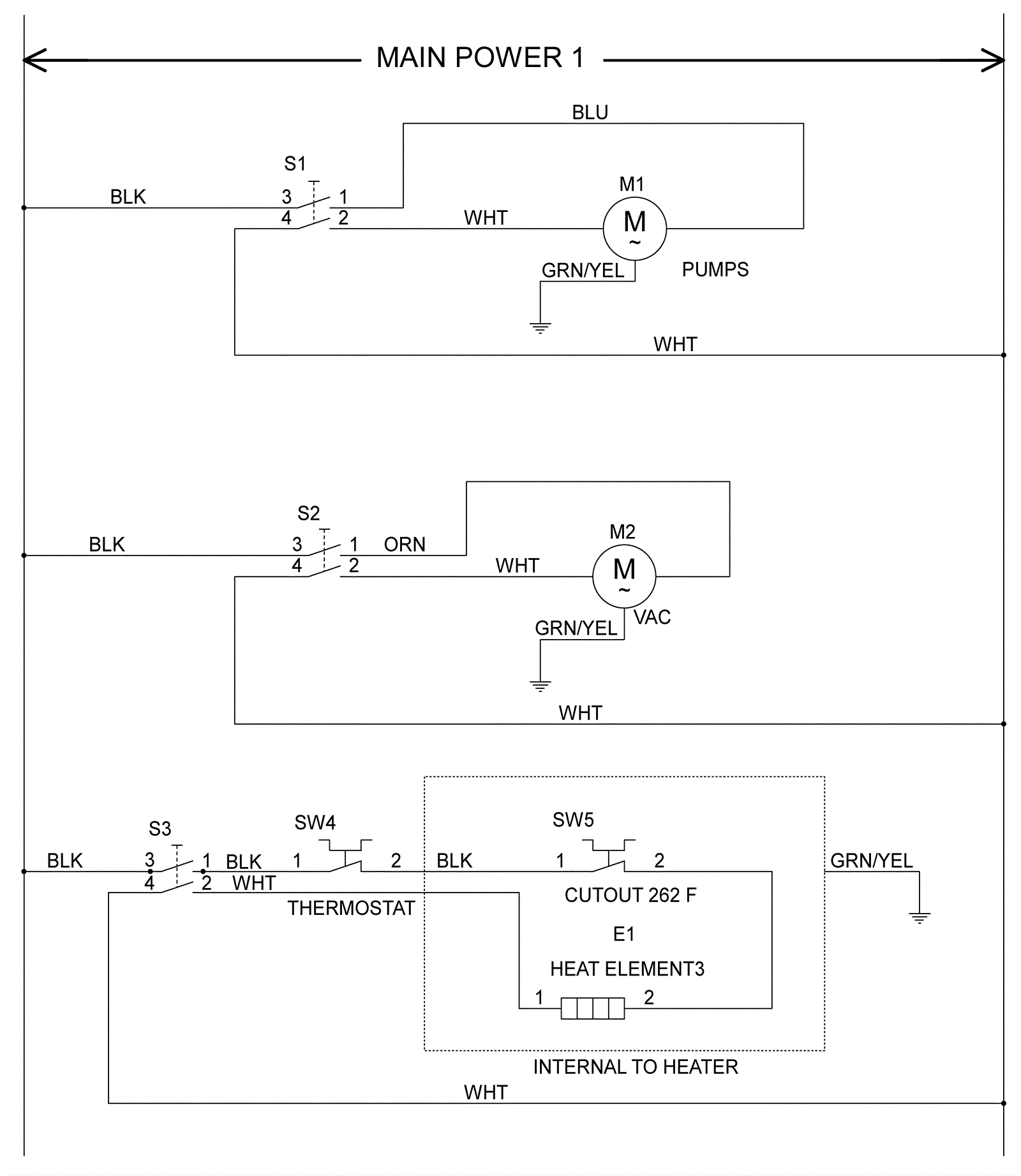

HYDRAPORT 100S Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
E1 209-0654 120V heater $827.59 usually ships 1-5 days
M1 172-9140 100PSI pump kit $781.56 usually ships 17-28 days
M2b 209-0658 Carbon brush kit $18.38 usually ships 17-28 days
KIT 209-0662 Bi-metallic heat repair kit $160.86 usually ships 1-5 days
